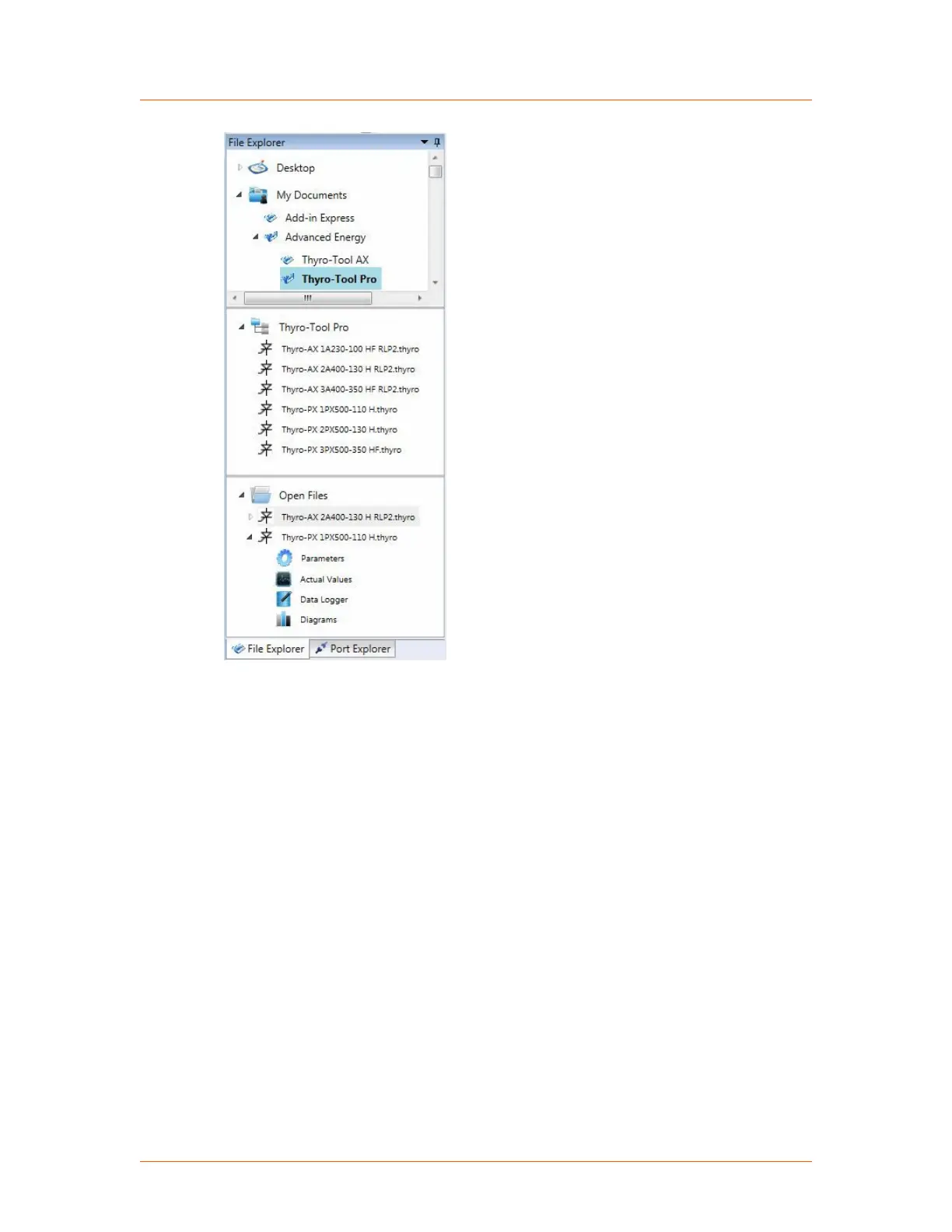

Figure 4‑14. Open .thyro files in file explorer
The following tabs display when an open device is expanded:
• Parameters (to change and adjust the settings)
• Actual Values (to display the current available data and event messages)
• Data Logger (to record messages with time stamp)
• Diagrams (to show time-stamped data as characteristic lines)
The .thyro files include parameters, time, data logger entries, and diagrams.
PARAMETERS
Double-click a parameter to open its editable window.
Advanced Energy
®
Thyro-PX
®
Power Controller
57010148-00G Communication Controls 4‑17
