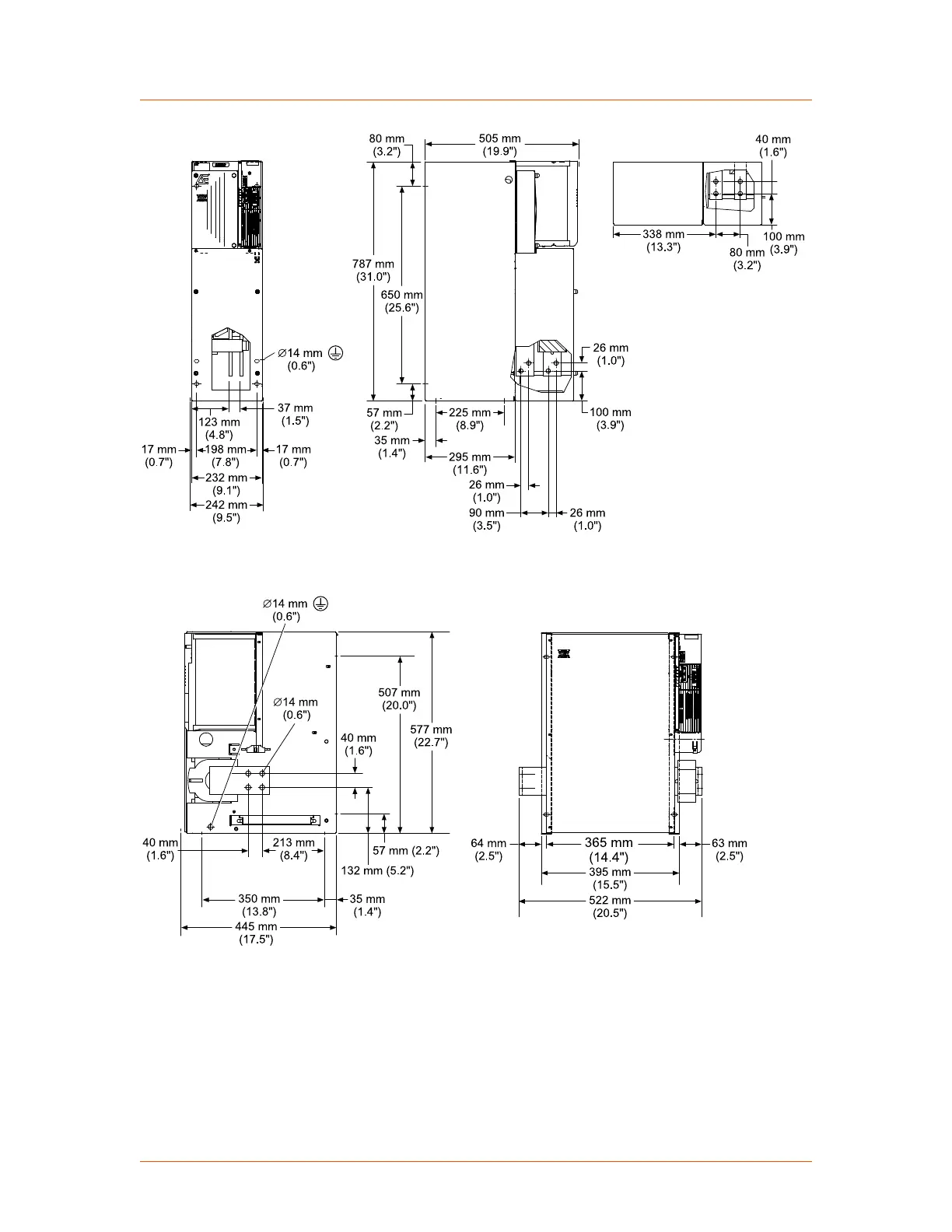

Figure 5‑5.
Thyro-PX 1PX 500-780 HF, 1000 HF, 1500 HF, Thyro-PX 1PX 690-780 HF, 1400
HF
Figure 5‑6.
Thyro-PX 1PX 500-2100 HF, Thyro-PX 1PX 690-2000 HF
Advanced Energy
®
Thyro-PX
®
Power Controller
57010148-00G
Installation, Setup, and Operation
5‑4
53
55
