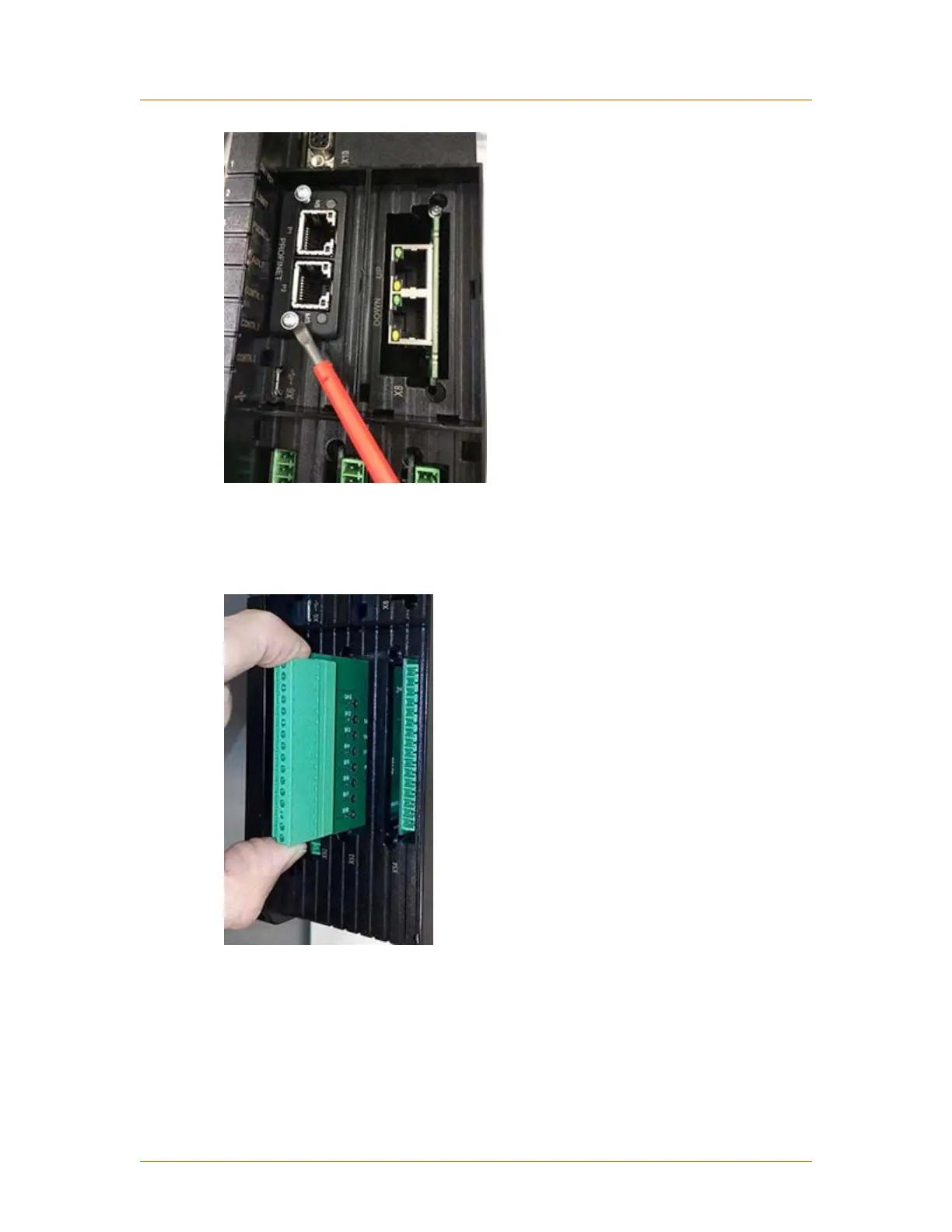

Figure 5‑22. Anybus module removal

If an I/O module must be removed from the unit, remove the TORX T8 mounting

screws, insert a connector, and pull while moving the module from side to side, as

shown in the following figure.

Figure 5‑23. I/O module removal

Advanced Energy

Thyro-PX

Power Controller

57010148-00G Installation, Setup, and Operation 5‑17
