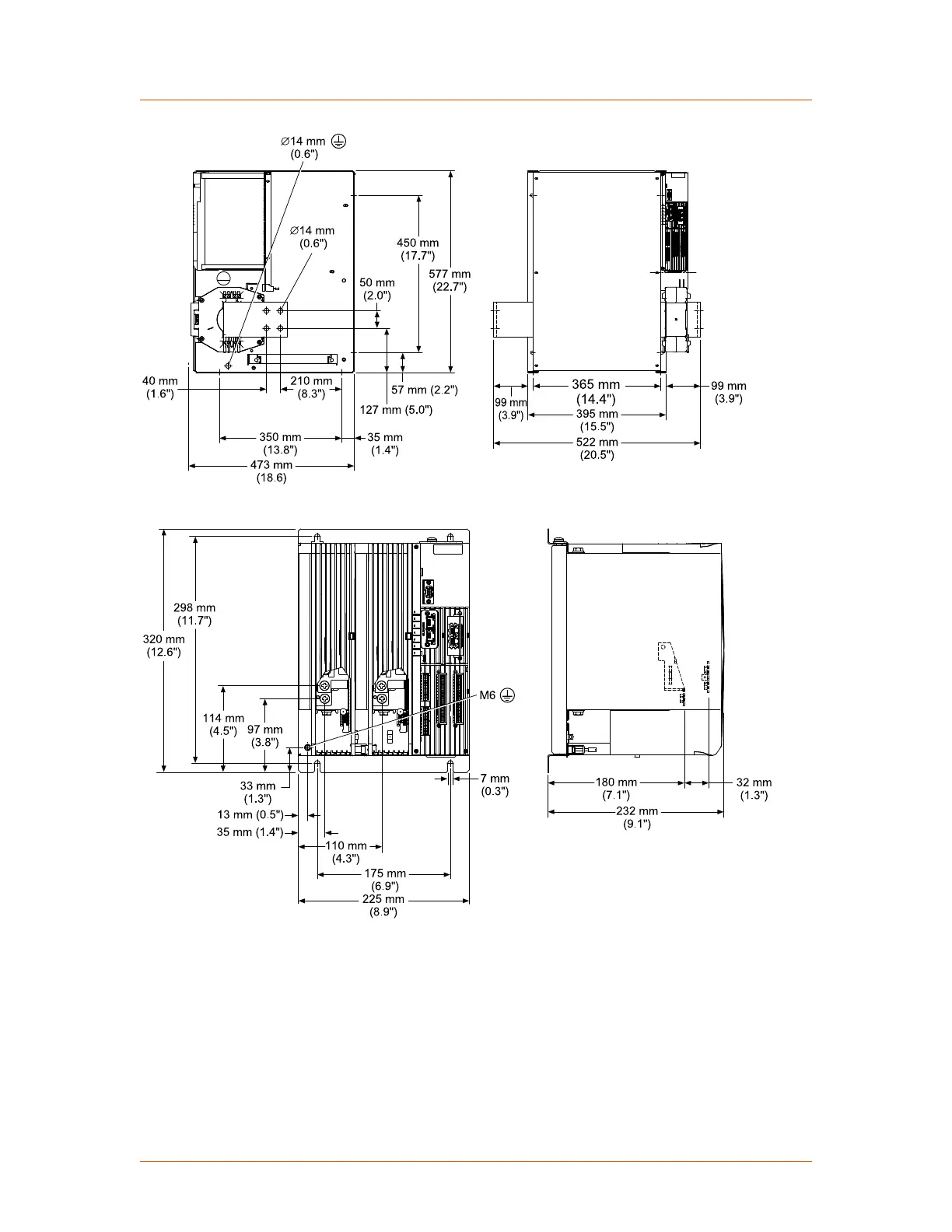

Advanced Energy Thyro-PX Series - Figure 5-7. Thyro-PX 1 PX 500-2900 HF, Thyro-PX 1 PX 690-2600 HF; Figure 5-8. Thyro-PX 2 PX 500-16 H, 37 H, 75 H, 110 H

Figure 5‑7. Thyro-PX 1PX 500-2900HF, Thyro-PX 1PX 690-2600 HF
Figure 5‑8. Thyro-PX 2PX 500-16 H, 37 H, 75 H, 110 H
Advanced Energy
®
Thyro-PX
®
Power Controller
57010148-00G Installation, Setup, and Operation 5‑5
