Page 52 (Figure 5-1. Thyro-PX 1 PX 500-16 H, 37 H, 75 H, 110 H)
Advanced Energy Thyro-PX Series - Figure 5-1. Thyro-PX 1 PX 500-16 H, 37 H, 75 H, 110 H; Figure 5-2. Thyro-PX 1 PX 500-130 H, 170 H, Thyro-PX 1 PX 690-80 H
109 pages
Manual
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...

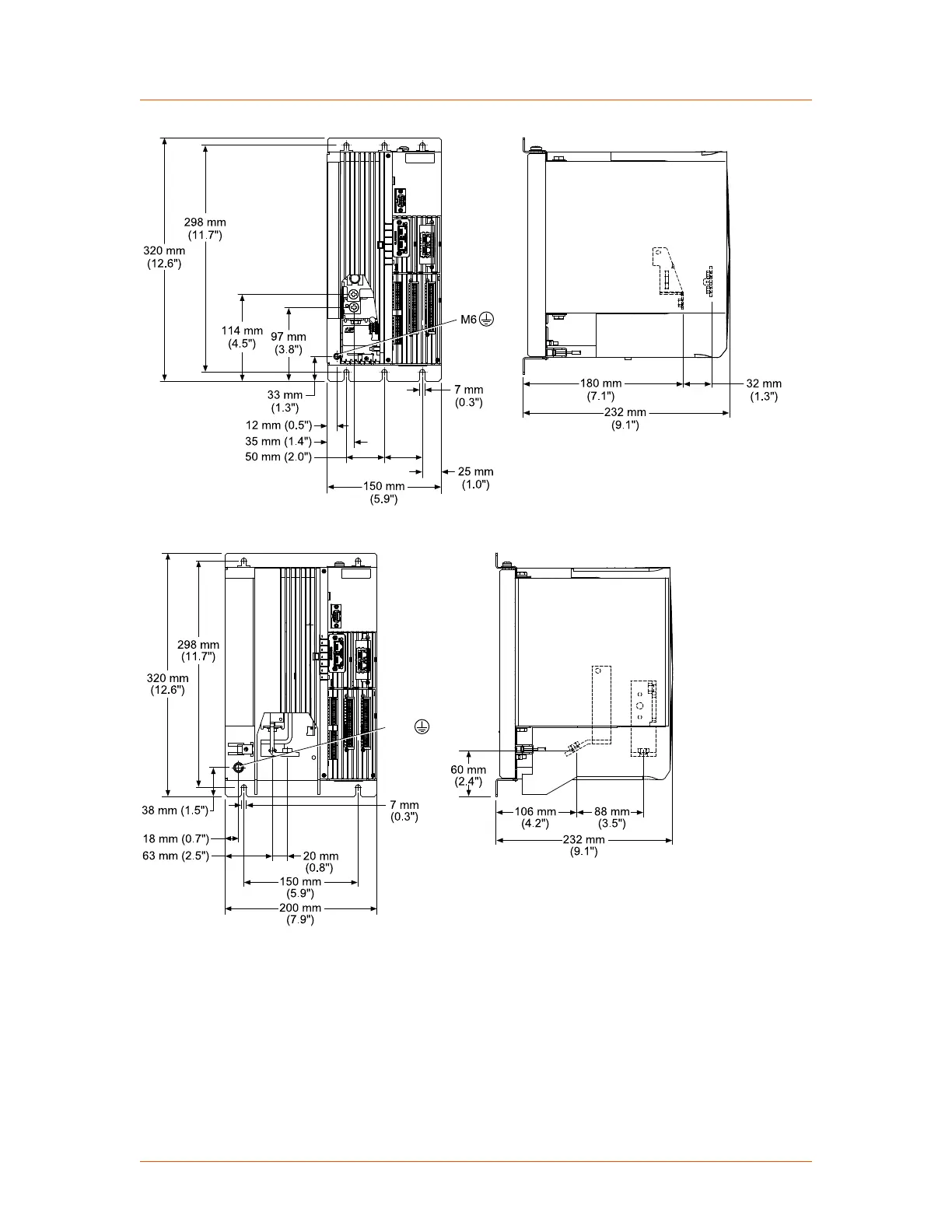

Figure 5‑1.
Thyro-PX 1PX 500-16 H, 37 H, 75 H, 110 H
M10
Figure 5‑2.
Thyro-PX 1PX 500-130 H, 170 H, Thyro-PX 1PX 690-80 H
