Advanced Energy Thyro-PX Series - Figure 5-20. Thyro-PX 3 PX 500-1850 HF, Thyro-PX 3 PX 690-1700 HF; Figure 5-21. Thyro-PX 3 PX 500-2600 HF, Thyro-PX 3 PX 690-2200 HF

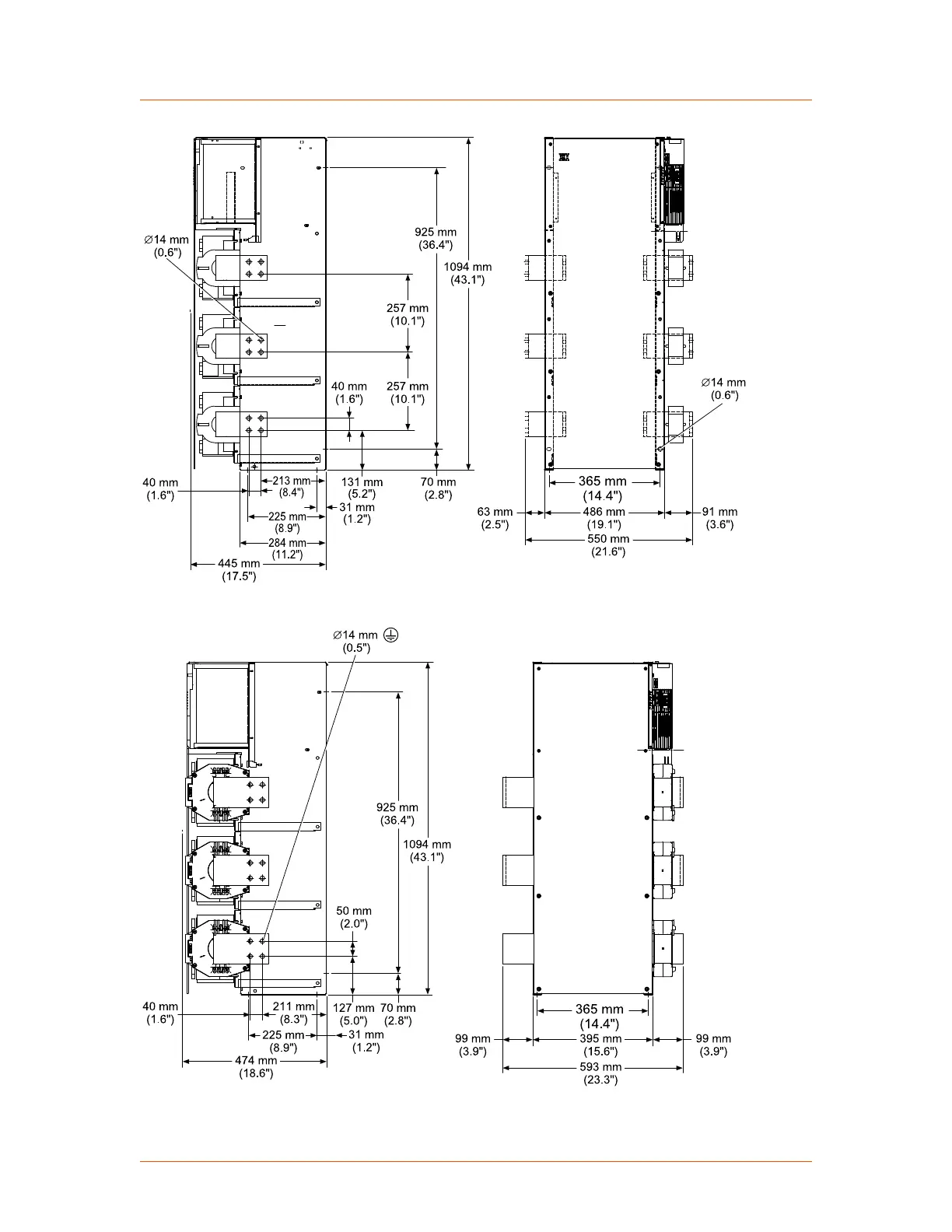

Figure 5‑20. Thyro-PX 3PX 500-1850 HF, Thyro-PX 3PX 690-1700 HF
Figure 5‑21. Thyro-PX 3PX 500-2600 HF, Thyro-PX 3PX 690-2200 HF
Advanced Energy
®
Thyro-PX
®
Power Controller
57010148-00G Installation, Setup, and Operation 5‑13
