Advanced Energy Thyro-PX Series - Figure 5-13. Thyro-PX 2 PX 500-2000 HF, Thyro-PX 2 PX 690-1850 HF; Figure 5-14. Thyro-PX 2 PX 500-2750 HF, Thyro-PX 2 PX 690-2400 HF

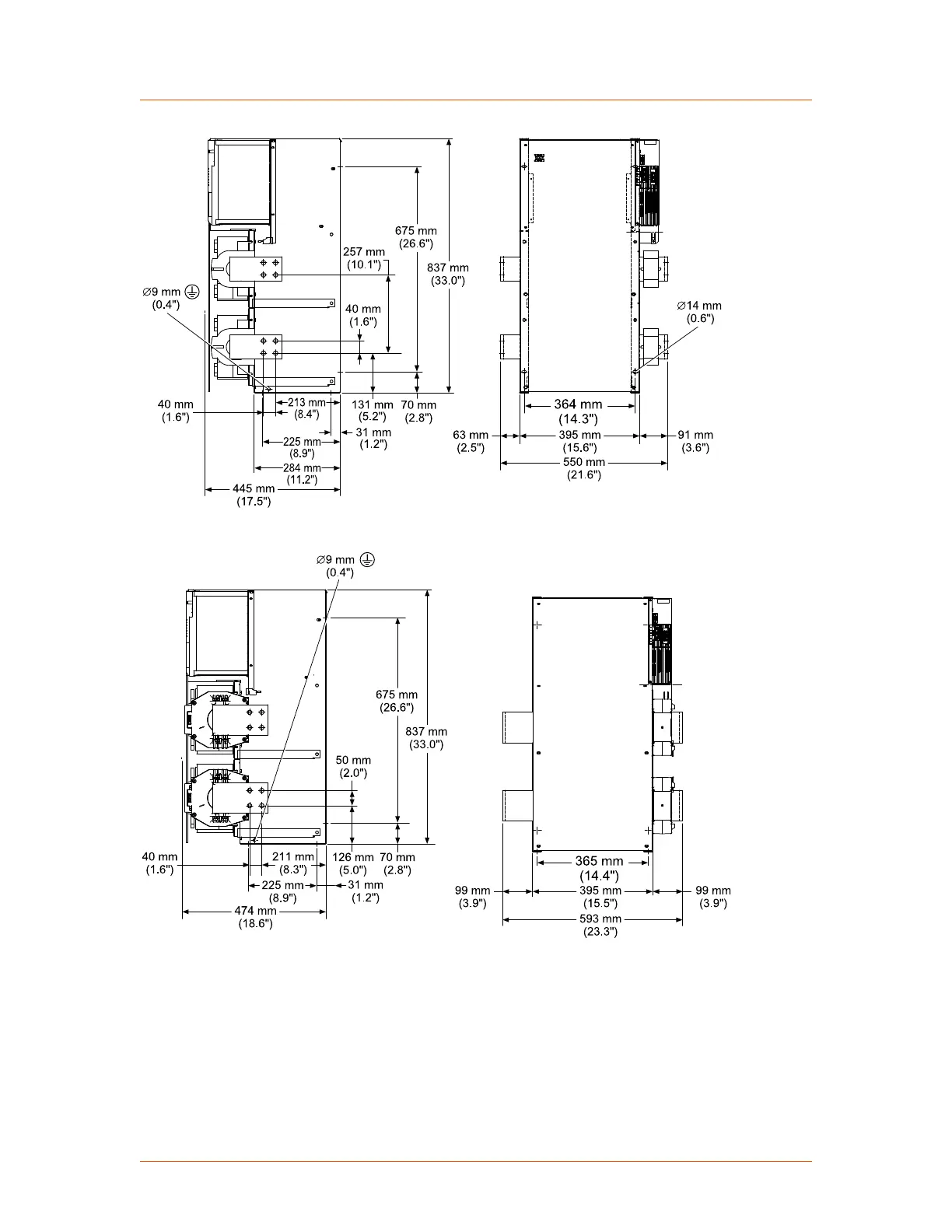

Figure 5‑13. Thyro-PX 2PX 500-2000 HF, Thyro-PX 2PX 690-1850 HF
Figure 5‑14. Thyro-PX 2PX 500-2750 HF, Thyro-PX 2PX 690-2400 HF
Advanced Energy
®
Thyro-PX
®
Power Controller
57010148-00G Installation, Setup, and Operation 5‑8
