External fuse 2A slow acting
Alarm Limit Option
I/O Bus RJ 45
Micro USB
Thyro-PX Control Unit
Configurable I/O
control connections
Common
AO 1.3 [output PC 3]
AO 1.2 [output PC 2]
AO 1.1 [output PC 1]
Common
AI 1.3 [setpoint PC 3]
AI 1.2 [setpoint PC 2]
AI 1.1 [setpoint PC 1]
+5 V
Common
DI 1.6 [user configured]
DI 1.5 [user configured]
DI 1.4 [user configured]
DI 1.3 [user configured]
DI 1.2 [fault acknowledge]
DI 1.1 [pulse lock *]
+24 V
+24 V
* Connect pulse lock
to +24 V
Anybus Module
Type HF only
Remarks:
Auxiliary supply Auxiliary supply
customer wiring

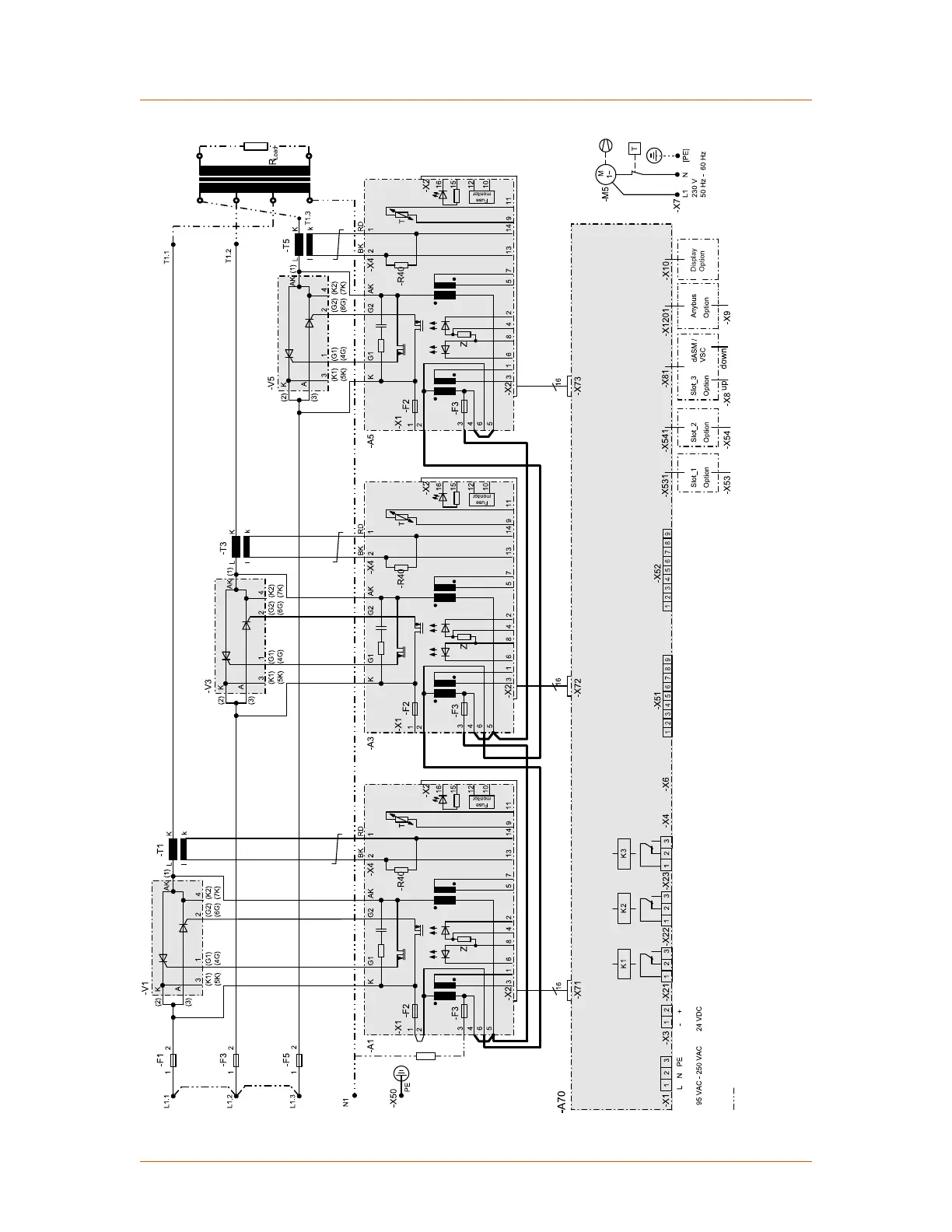

Figure 5‑30. Configure 3-phase as VSC 3
Advanced Energy
®
Thyro-PX
®
Power Controller
57010148-00G Installation, Setup, and Operation 5‑27
