2.2 Installing the Mx-4200V & Mx-4400V Enclosures

The panel can weigh in excess of 20kg when the batteries are installed. Use the

appropriate fixing hardware necessary to secure the panel to the wall. Observe

recommended lifting practices to guard against spinal injury.

2.2.1 Opening the Enclosure Cover

The Mx-4200V & Mx-4400V are provided with a key-lock assembly for securing the hinged door to the back box.

Insert and turn the key to open the enclosure.

2.2.2 Removing the Chassis

It is recommended that the chassis be

removed before fitting the panel to the

wall. To remove the chassis:

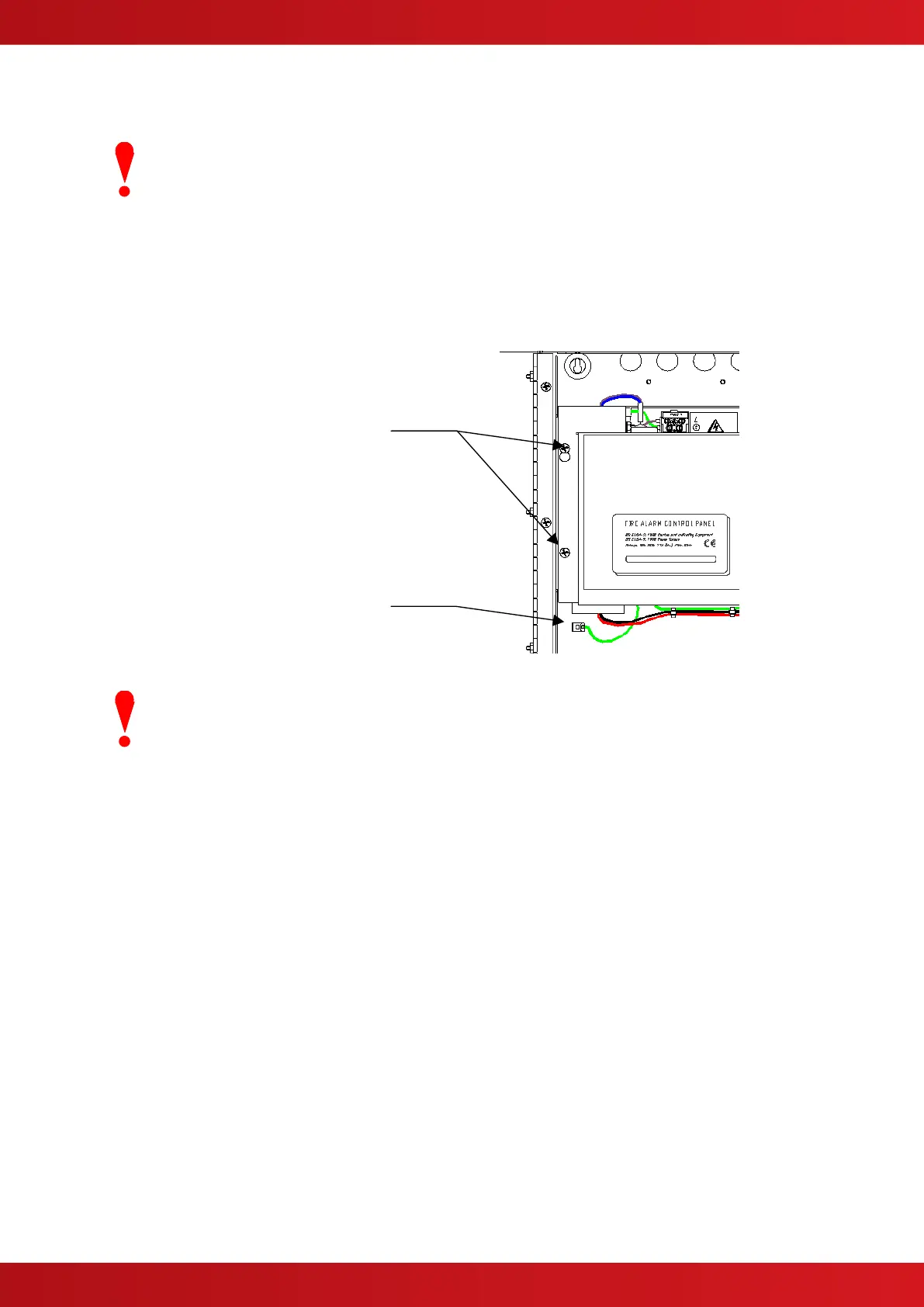

Refer to the diagram opposite.

Disconnect the earth cable connecting

the chassis to the spade terminal on the

rear enclosure.

Remove the bottom two screws holding

the chassis to the back box. Keep these

items in a safe place for later re-use.

Loosen the top two screws holding the

chassis to the back box via the keyhole

slots. The chassis assembly can now be

removed.

Carefully remove the chassis from the

rear enclosure and place in a safe place

to prevent accidental damage.

Earth

Connection

Fixing

Screws.

Do not lift the chassis by holding onto any of the printed circuit cards. Hold the

chassis by the metal plate only.
