21
2.6.2.1
Mx
-4200V & Mx-
4400V

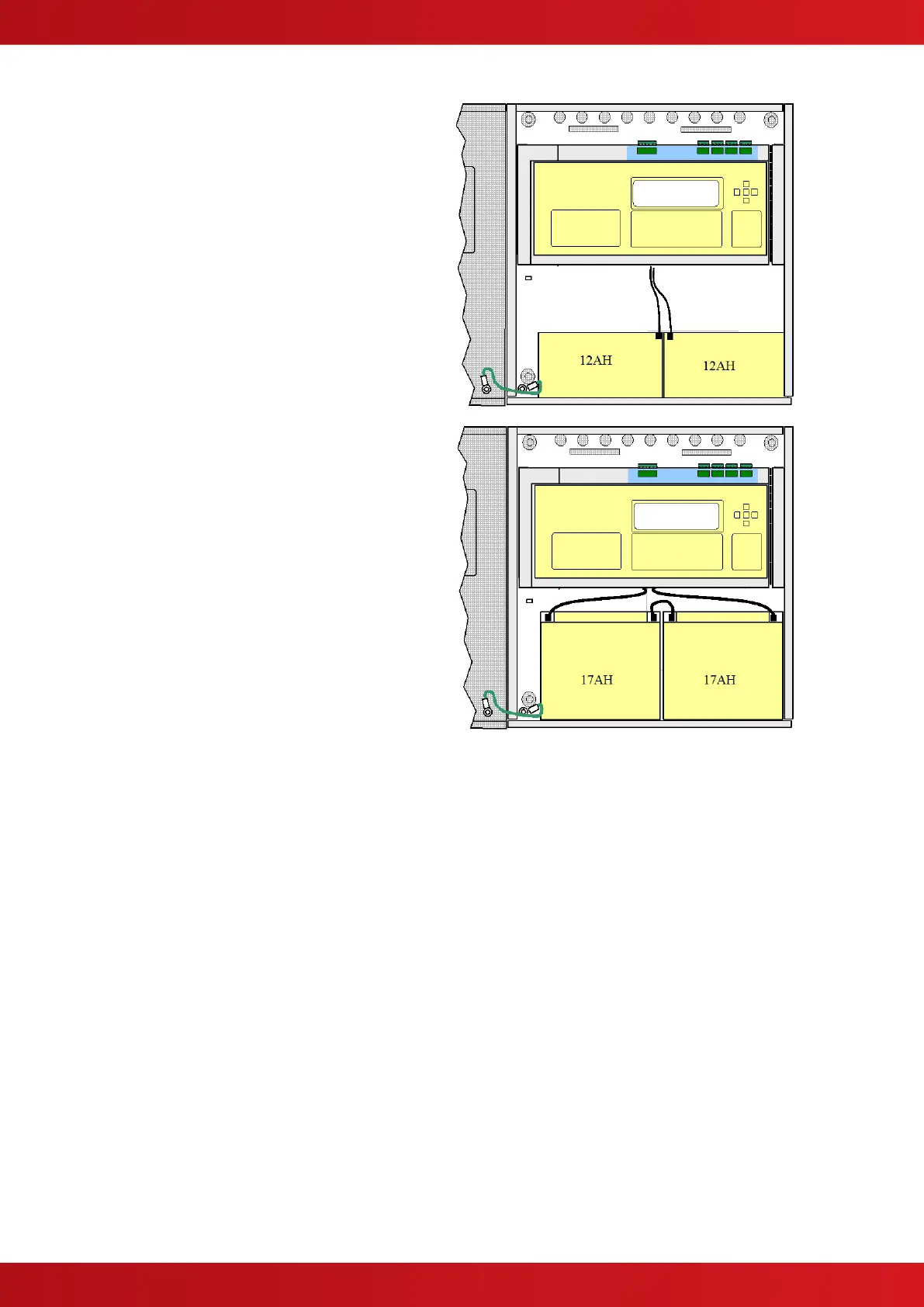

The diagram
s opposite show the
recommended location
and orientation
for the 12AH and 17
AH batteries within
the panel.
For battery sizes greater t
han 17AH, use
the Mx
-4400
V/D for batteries up to 38AH
and use the Mx-44
00V/LE large
enclosure variant f
or up to 48AH.
For battery sizes greater t
han 12AH, it
will be necessar
y to remove the spade
terminals fixed to the b
attery leads and
replace these with con
nection fixings
suitable for the instal
led batteries.
Replacement Fuse
FS1 T6.3A 250V
Anti-Surge
www.acornfiresecurity.com
www.acornfiresecurity.com
20
22
