AIMB-286 User Manual 104

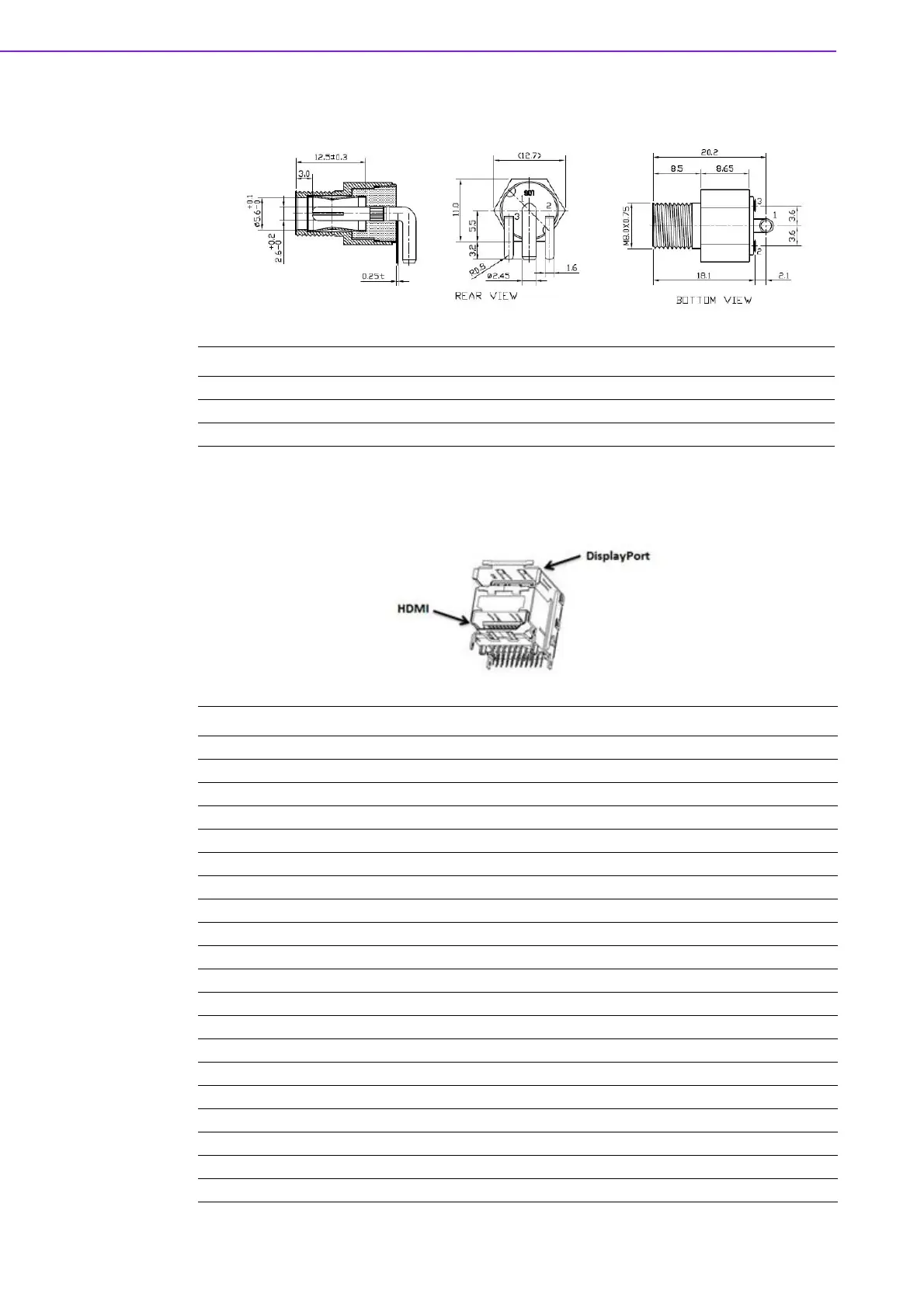

A.1 DC input Phoenix Connector (DCIN1)
A.2 Definition Multimedia Interface (DP1+HDMI1)
Pin Signal Pin Definition
1 Power input (Only +12V)
2GND
3GND
Pin Signal Pin Definition Pin Signal Pin Definition
1 HDMI1_Z_D2+ A1 DP1_0+
2GND A2GND
3 HDMI1_Z_D2- A3 DP1_0-
4 HDMI1_Z_D1+ A4 DP1_1+
5GND A5GND
6 HDMI1_Z_D1- A6 DP1_1-
7 HDMI1_Z_D0+ A7 DP1_2+
8GND A8GND
9 HDMI1_Z_D0- A9 DP1_2-
10 HDMI1_Z_CLK+ A10 DP1_3+
11 GND A11 GND
12 HDMI1_Z_CLK- A12 DP1_3-
13 x A13 DP1_AUX_EN#
14 x A14 GND
15 HDMI1_SCL A15 DP1_AUX+
16 HDMI1_SDA A16 GND
17 GND A17 DP1_AUX-
18 +V5_HDMI A18 DP1_HPD
19 HDMI1_HPD A19 GND
A20 +V3.3_DP1
