121 AIMB-286 User Manual
Appendix A I/O Pin Assignments

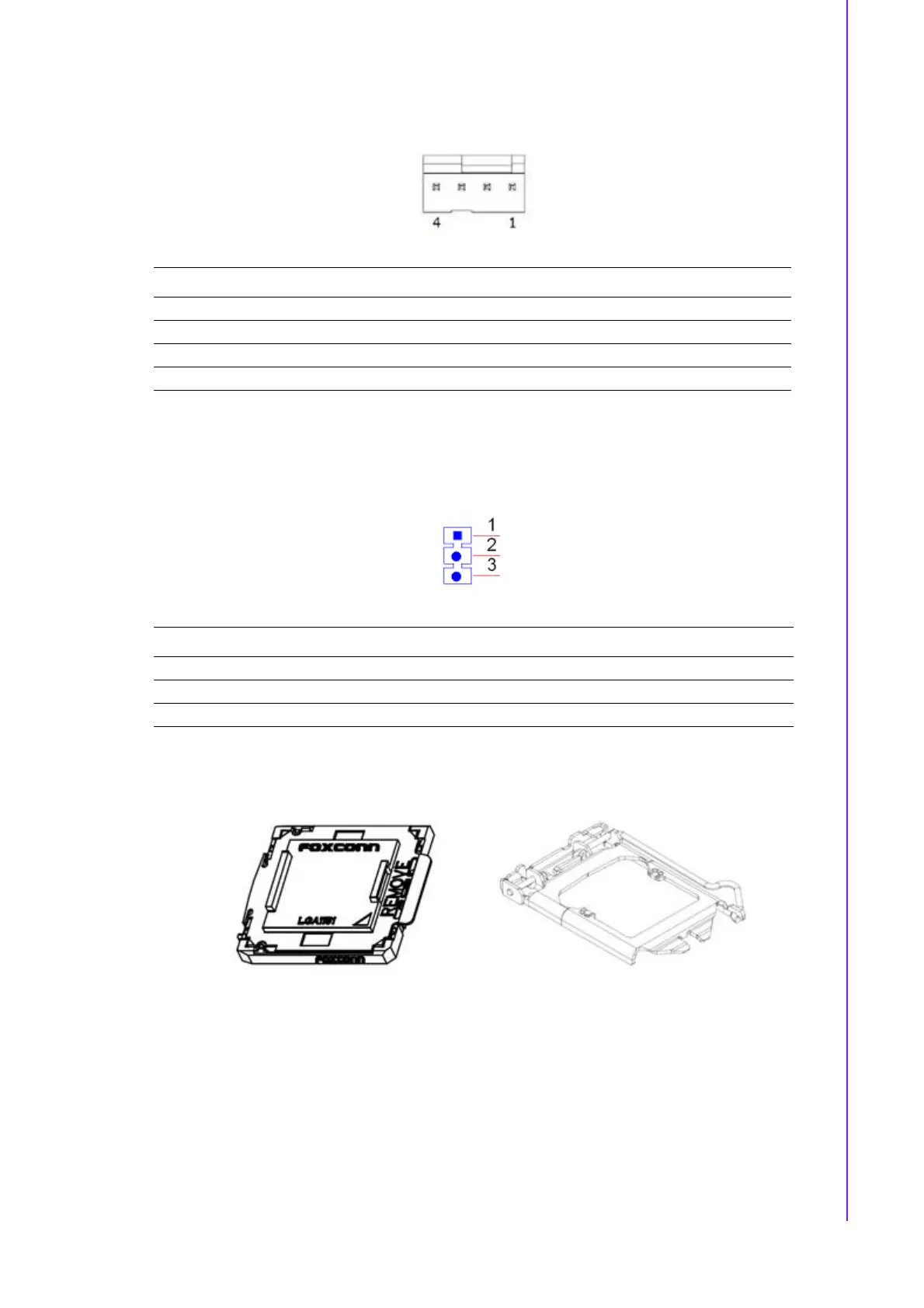

A.36 SYSTEM FAN Power Connector (SYSFAN2)
A.37 TI’s SMBUS Programming for +Vcore/+VCCGT
Controller (JSMB1)
A.38 LGA1151 CPU Socket H4 (CPU1)
Pin Signal Pin Definition
1GND
2 SYSTEM FAN VCC
3 SYSTEM FAN SPEED
4 SYSTEM FAN PWM
Pin Signal Pin Definition
1 TPS53655_SMB_CLK
2 TPS53655_SMB_DIO
4GND
