Advantech AIMB-286 - SATA Signal Connector (SATA2); RJ45 1 Port (LAN3)

AIMB-286 User Manual 108

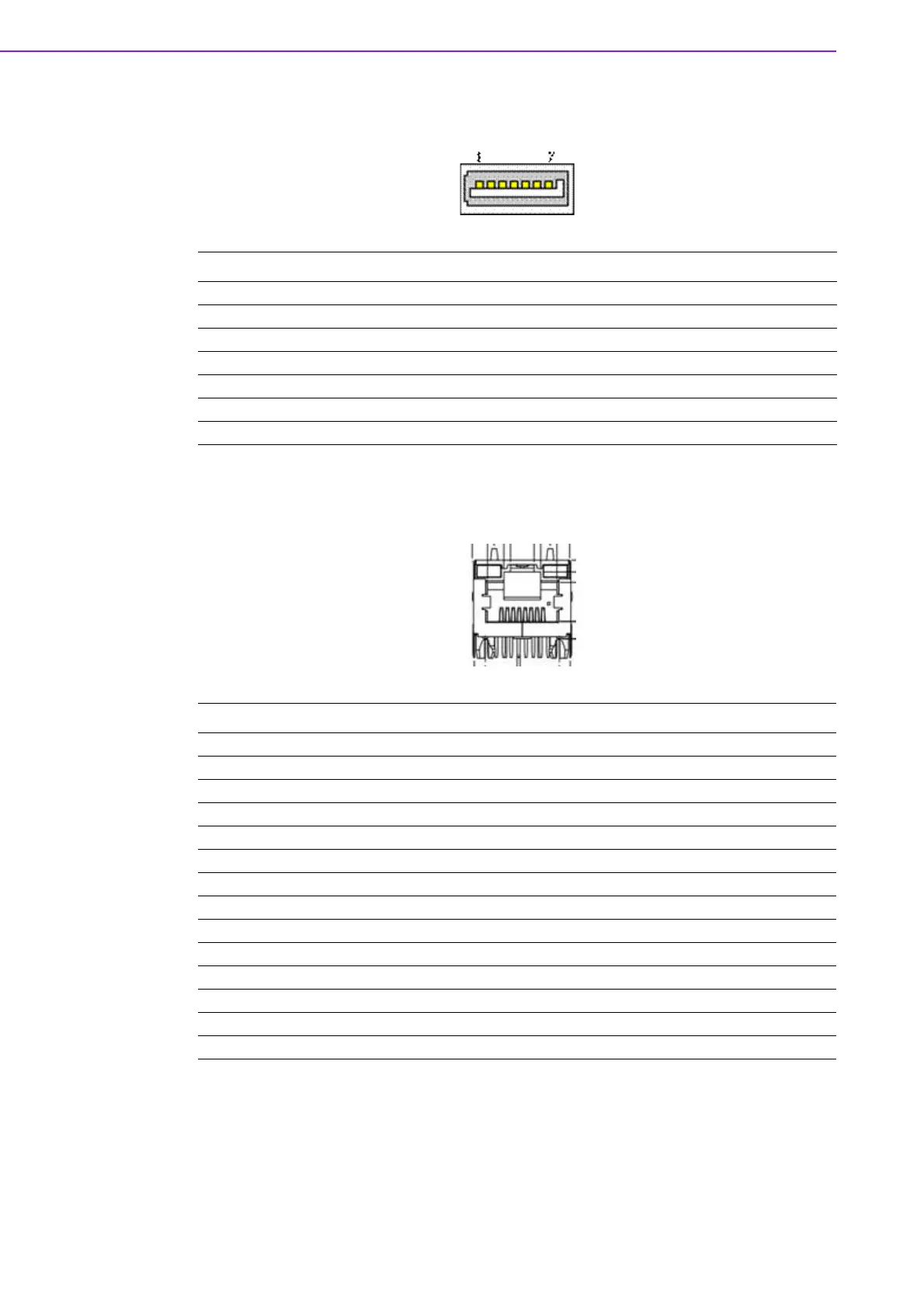

A.9 SATA Signal Connector (SATA2)
A.10 RJ45 1 Port (LAN3)
Pin Signal Pin Definition
1GND
2TX+
3TX-
4GND
5RX-
6RX+
7GND
Pin Signal Pin Definition
1 LAN3_MDI0+
2 LAN3_MDI0-
3 LAN3_MDI1+
4 LAN3_MDI1-
5 LAN3_CONN
6 LAN3_CT
7 LAN3_MDI2+
8 LAN3_MDI2-
9 LAN3_MDI3+
10 LAN3_MDI3-
11 LAN3_LED0_ACT#_R
12 +V3.3_LAN3_R
13 LAN3_LED1_1G#_R
14 LAN3_LED2_100M#_R
