123 AIMB-286 User Manual
Appendix A I/O Pin Assignments

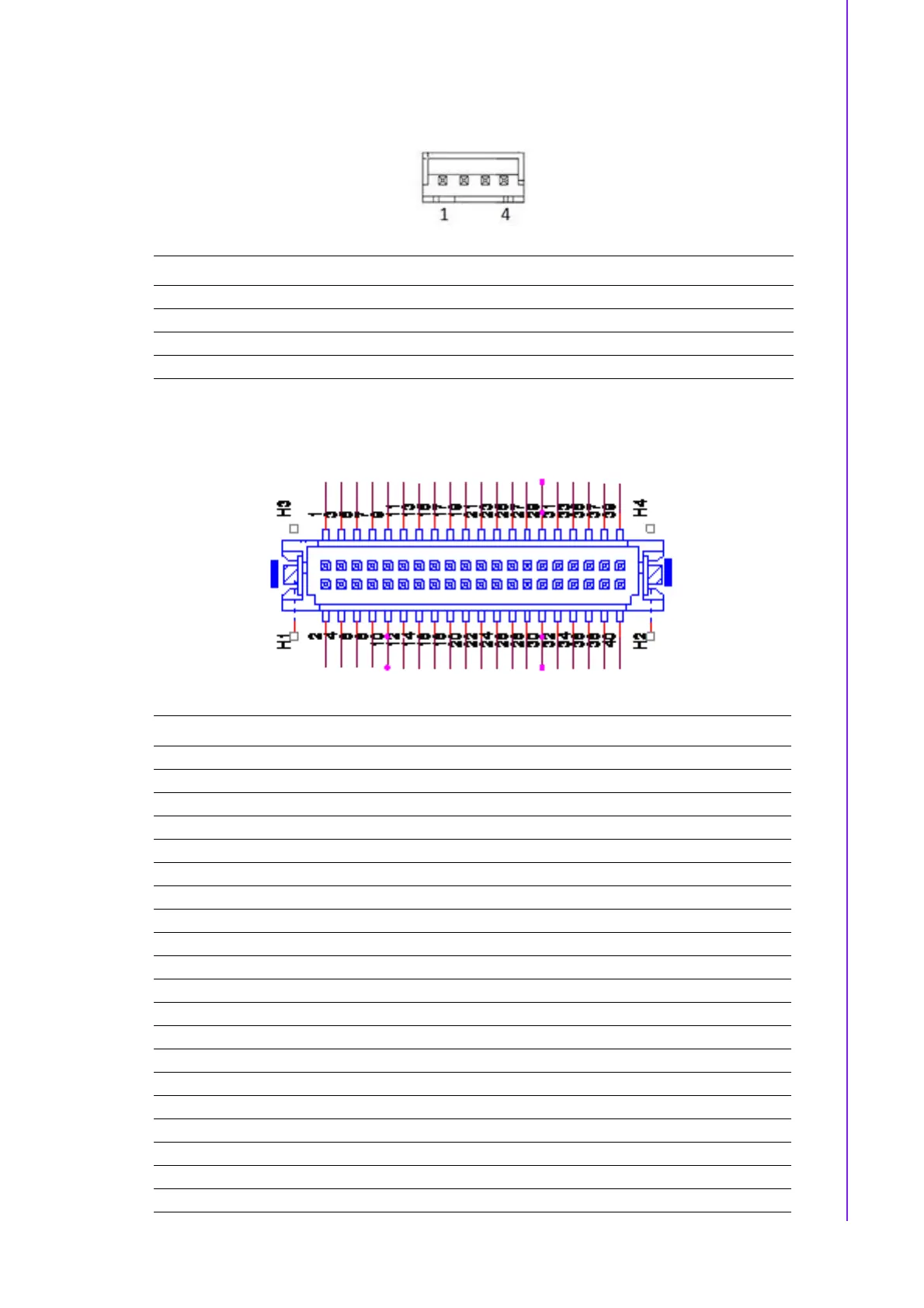

A.42 SATA Power Connector (SATA_PWR1)
A.43 eDP/LVDS Panel Connector (LVDS_EDP1)
Pin Signal Pin Definition
1+V5
2GND
3GND
4+V12
Pin Signal Pin Definition Pin Signal Pin Definition
1VDD 2 VDD
3 LVDS_DET# 4 GND
5VDD 6 VDD
7 A0N(EDP_CPU_TXN2) 8 A4N
9 A0P(EDP_CPU_TXP2) 10 A4P
11 GND 12 GND
13 A1N 14 A5N
15 A1P 16 A5P
17 GND 18 GND
19 A2N 20 A6N
21 A2P 22 A6P
23 GND 24 GND
25 CLK1N(EDP_CPU_TXN3) 26 CLK2N
27 CLK1P(EDP_CPU_TXP3) 28 CLK2P
29 GND 30 GND
31 SCD 32 SDD
33 GND 34 GND(EDP_CH7511_HPD)
35 A3N 36 A7N
37 A3P 38 A7P
39 ENBKL 40 VCON
