Advantech AIMB-286 - Board Layout: Jumper and Connector Locations

5 AIMB-286 User Manual
Chapter 1 General Information
1.5 Board layout: Jumper and Connector Locations

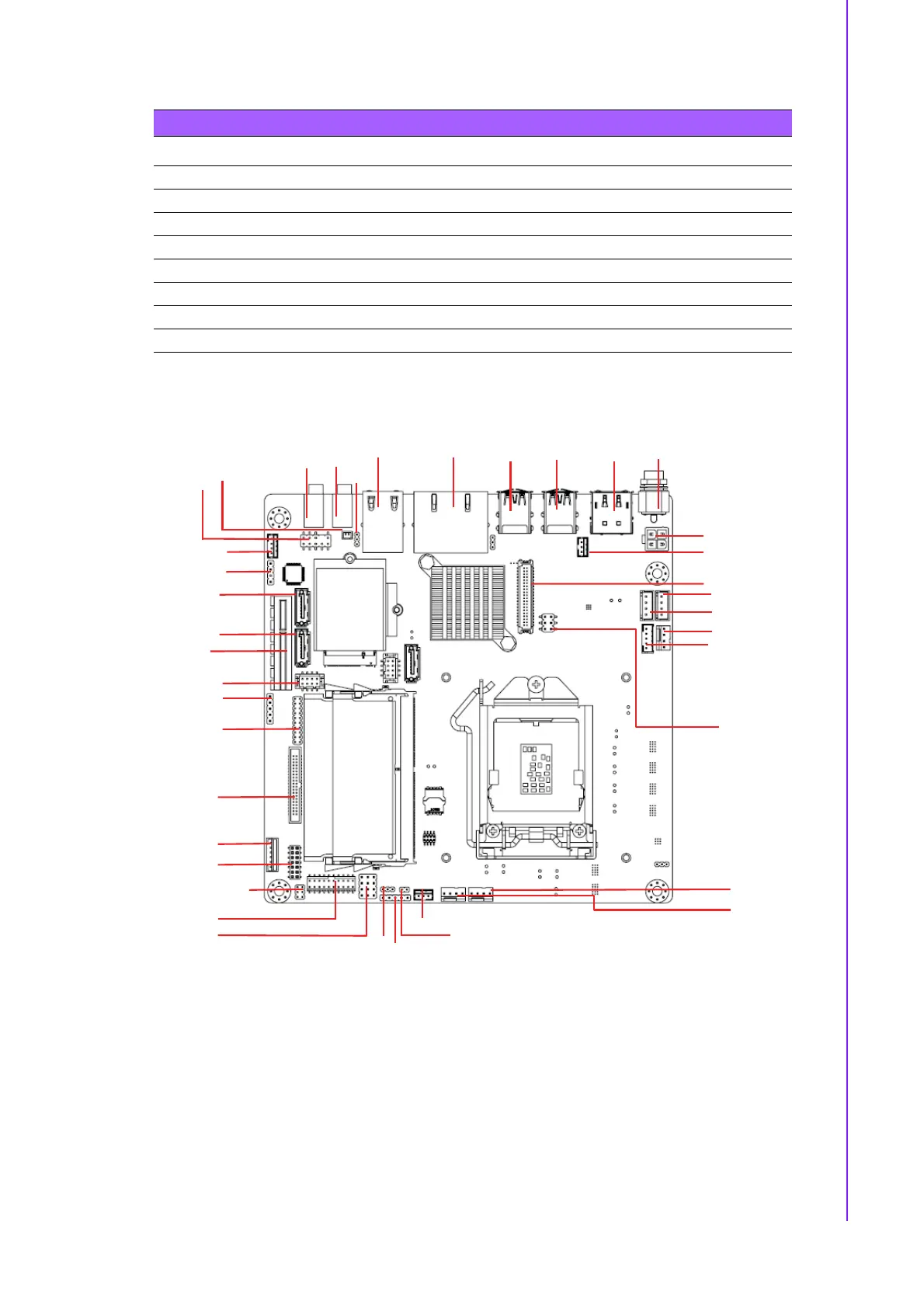

Figure 1.1 Jumper and Connector Location (Top Side)
Table 1.2: Jumper List
Description Location Name
1 LVDS VESA, JEIDA format selection pin header JLVDS_VCON1
2 CMOS Clear Jumper JCMOS1
3 Watchdog Timer Output and OBS Beep JWDT1+JOBS1
4 COM1 RI# pin RI#/5V/12V Select JSETCOM1_V1
5 Power Switch/HDD LED/SMBUS/Speaker Pin Header JFP1
6 Case open selection pin header JCASEOP_SW1
7 ATX/AT Mode Selection PSON1
8 eDP/LVDS Panel Voltage Selection JLVDS1
LAN1/LAN2LAN3
AUDIO2
AUDIO1
USB34 USB12
DP1+HDMI1
DCIN1
ATX12V1
SATA_PWR2
SATA_PWR1
CPUFAN1
INV1
ATX_5VSB1
LVDS_EDP1
JLVDS1
SYSFAN2
SYSFAN1
PSON1
JFP2
KBMS1
JCASEOP_SW1
JFP1
COM12
JSETCOM1_V1
JCASE1
LPC1
COM3456
GPIO1
PCIEX4_1
JWDT1+
JOBS1
USB78
USB56
SATA2
SATA1
SATA3
SPI1
SPI_CN1
SPDIF1
AMP1
FPAUD1
BAT1 JCMOS1
