AIMB-286 User Manual 24

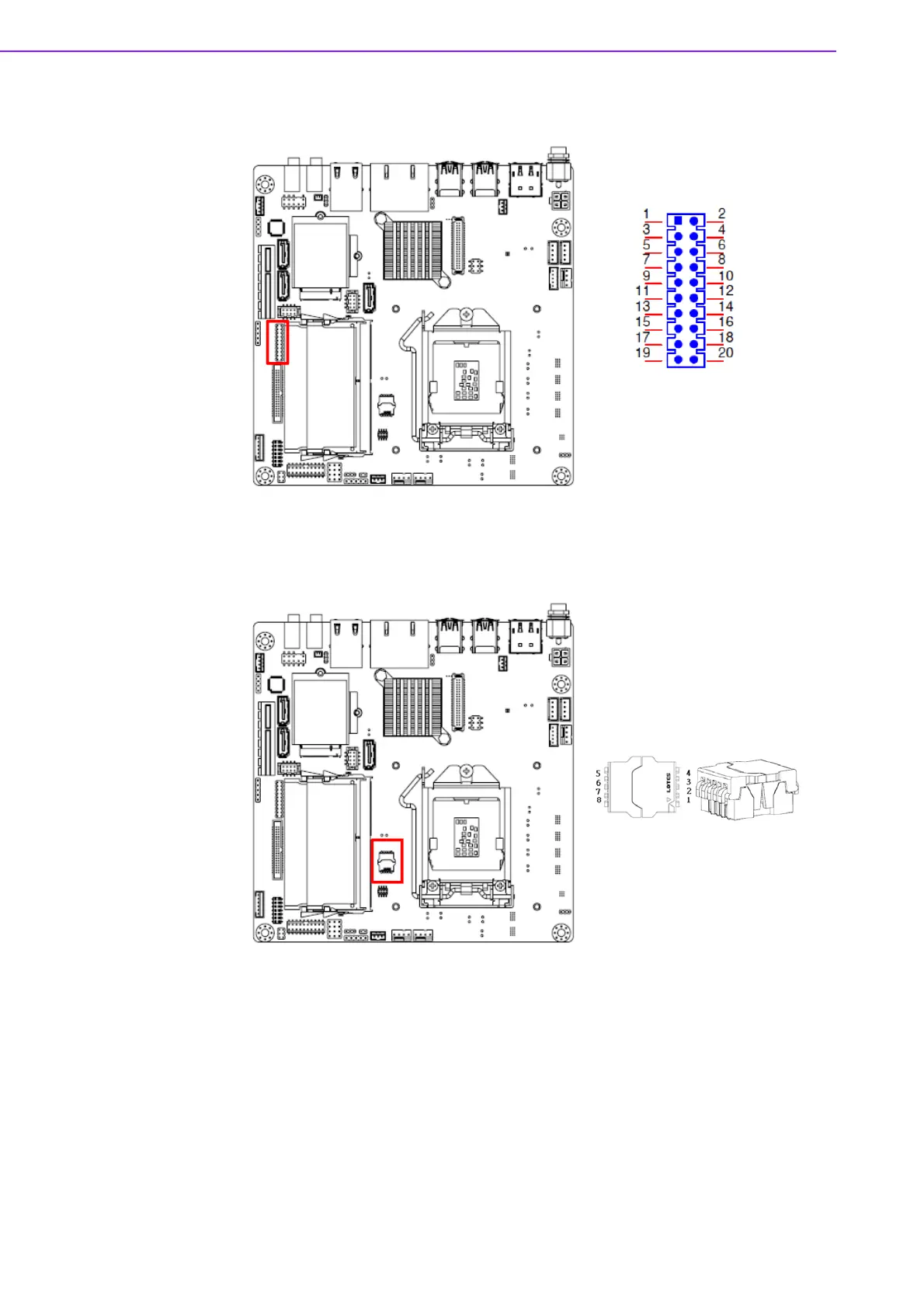

2.19 General Purpose I/O Pin Header (GPIO1)
2.20 SPI BIOS Flash Socket (SPI1)
