Advantech AIMB-286 - SATA Signal Connector (SATA3)

113 AIMB-286 User Manual
Appendix A I/O Pin Assignments

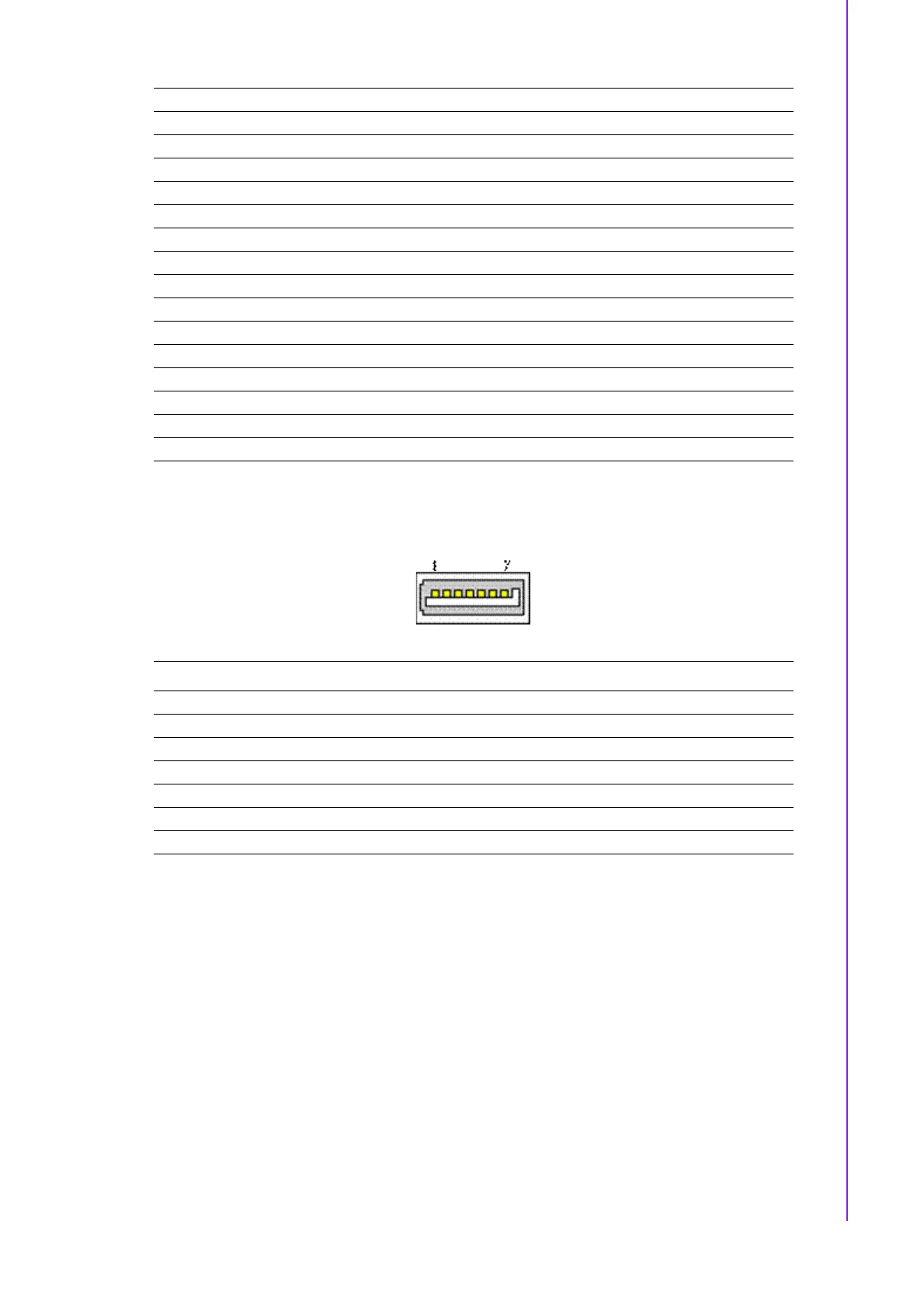

A.20 SATA Signal Connector (SATA3)
45 GND 46 CNV_MFUART2_TXD
47 REFCLKp0 48 CNV_MFUART2_RXD
49 REFCLKn0 50 SUSCLK(32kHz) (O)(0/3.3V)
51 GND 52 PERST0# (O)(0/3.3V)
53 CLKREQ0# 54 W_DISABLE2# (O)(0/3.3V)
55 PEWAKE0# 56 W_DISABLE1# (O)(0/3.3V)
57 GND 58 RESERVED
59 RESERVED/PETp1 60 RESERVED
61 RESERVED/PETn1 62 RESERVED
63 GND 64 M.2_38P4M_REFCLK
65 RESERVED/PERp1 66 RESERVED
67 RESERVED/PERn1 68 RESERVED
69 GND 70 PCIE_WAKE#
71 RESERVED/REFCLKp1 72 +3.3V
73 RESERVED/REFCLKn1 74 +3.3V
75 GND
Pin Signal Pin Definition
1GND
2TX+
3TX-
4GND
5RX-
6RX+
7GND
