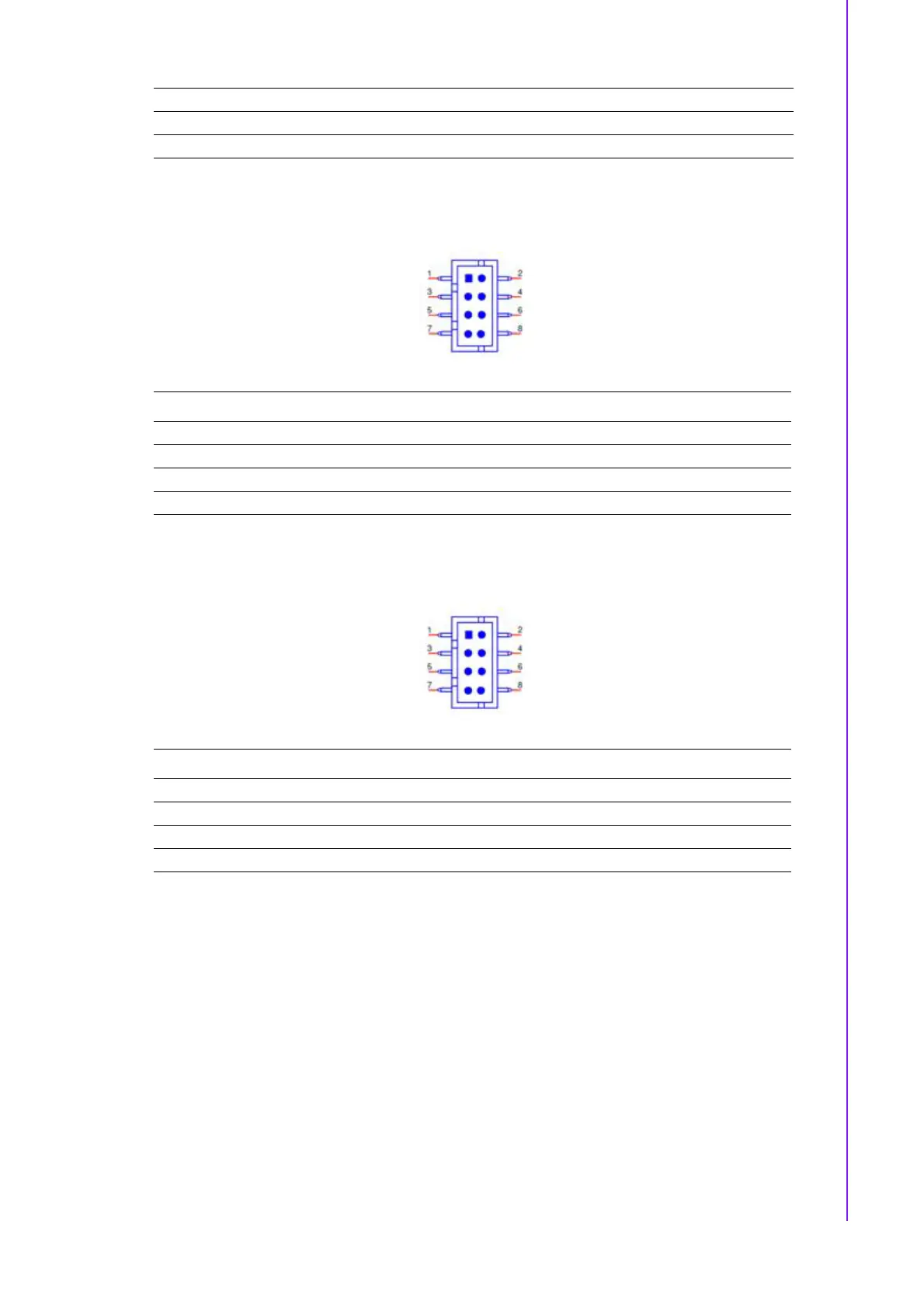

115 AIMB-286 User Manual
Appendix A I/O Pin Assignments
A.22 USB 2.0 Pin Header (USB56)
A.23 USB 2.0 Pin Header (USB78)
71 GND 72 +3.3V
73 GND 74 +3.3V
75 CONFIG_2
Pin Signal Pin Definition Pin Signal Pin Definition
1 +5V 2 +5V
3 USB_D5- 4 USB_D6-
5 USB_D5+ 6 USB_D6+
7 GND 8 GND
Pin Signal Pin Definition Pin Signal Pin Definition
1 +5V 2 +5V
3 USB_D7- 4 USB_D8-
5 USB_D7+ 6 USB_D8+
7 GND 8 GND
