19 AIMB-286 User Manual
Chapter 2 Connecting Peripherals

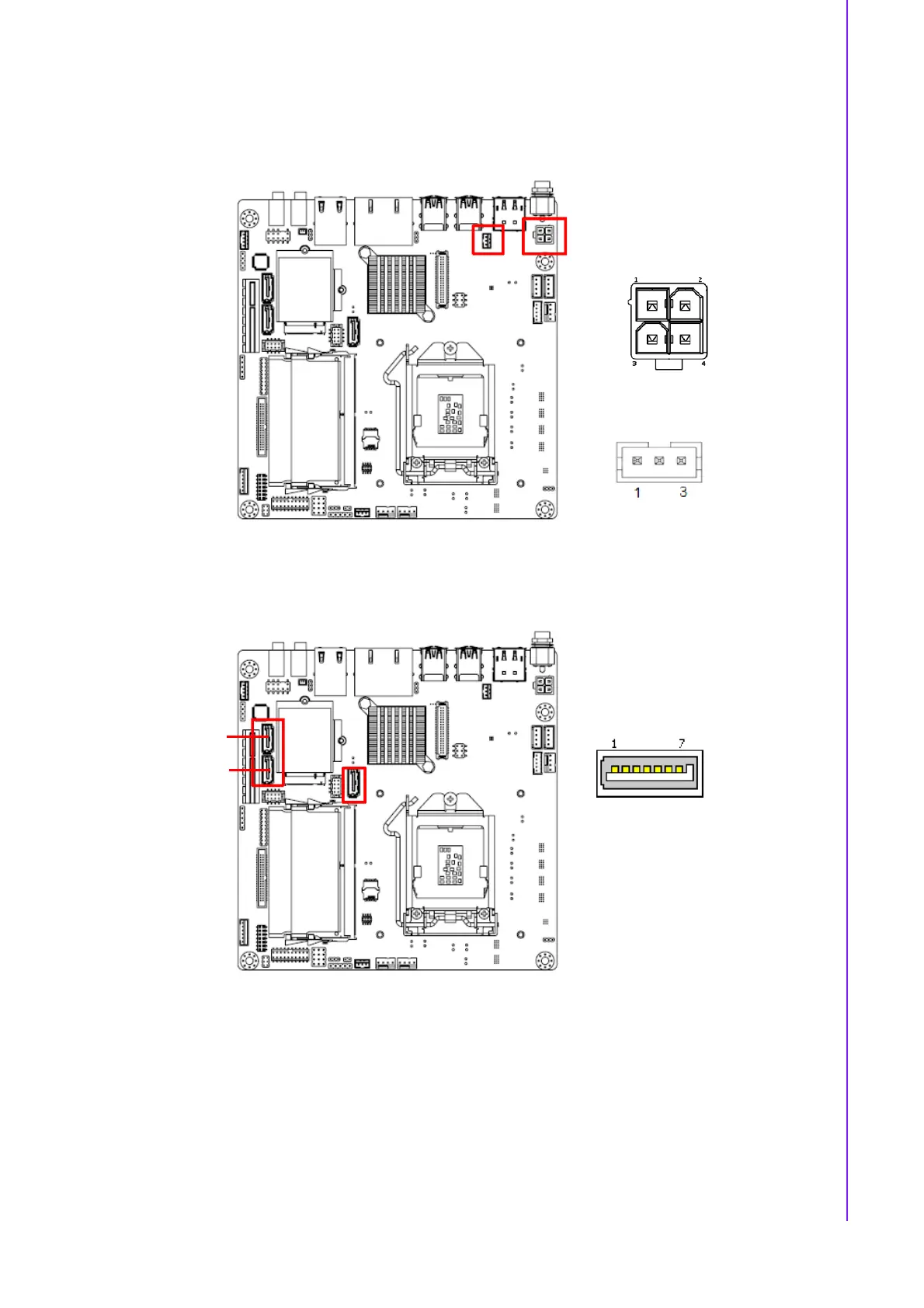

2.9 ATX 12V Power Supply Connector (ATX12V1) &
ATX Power Supply Connector (ATX_5VSB1)
2.10 SATA Signal Connector (SATA1/2/3)
AIMB-286 features a high performance Serial ATA III interface (up to 600 MB/s)
which eases hard drive cabling with thin, space-saving cables.
ATX12V 1
ATX_5VSB1
SATA2
SATA1
SATA3
