1.6 AIMB-286 Board Diagram

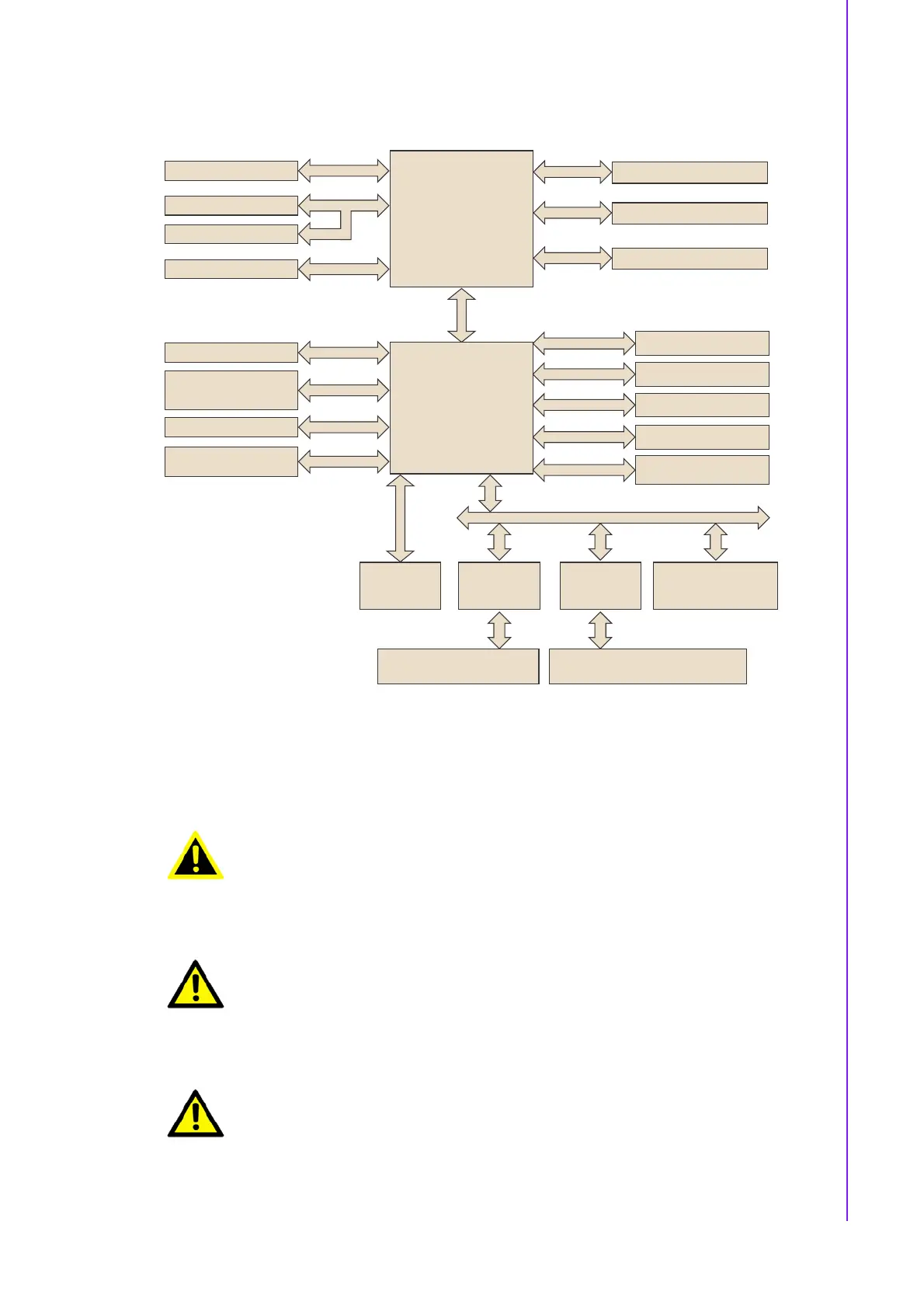

Figure 1.3 AIMB-286 Board Diagram
1.7 Safety Precautions
Intel 8th Gen
Core i7/i5/i3/Pentium/
Celeron processor
BIOS
Super I/O
Nuvuton
NCT6776
DMI x 4
H310
DDR4 2666 MHz SO-DIMM
PCIe x 4 (Gen 3)
DDR4 2666 MHz SO-DIMM
Channel A
PCIe x 4
Channel B
GbE LAN2: Realtek 8111G
M.2 (E key)
M.2 (B key, USB 3.0 colay
with USB04)
SPI
Display Port 1.2
Display port
HDMI 1.4
3 SATA III Ports
4 USB 3.0 ports
(USB04 3.0 colay with
M.2 B key)
Audio Codec
Realtek ALC892
Display port
PCIe x1
GbE LAN1: Realtek 8111G
PCIe x1
PCIex1
NCT5114D
Infineon
TPM 1.2/2.0 (Option)
1 RS-232, 1 x RS-232/422/485,
PS/2, WDT, 16-bit GPIO
3 x RS-232, 1 x RS-232/422/485
(RS-422/485 support by BOM optional)
SATA/ PCIex2
USB 3.0/2.0
USB 2.0
GbE LAN3: Intel I211AT
PCIe x1
SATA 3
USB 3.0
LVDS 24/48 bits
eDP (optional)
HD Audio
4 USB 2.0 ports
USB 2.0
Display port
LPC BUS
Warning! Always completely disconnect the power cord from chassis whenever
you work with the hardware. Do not make connections while the power
is on. Sensitive electronic components can be damaged by sudden
power surges. Only experienced electronics personnel should open the
PC chassis.
Caution! Always ground yourself to remove any static charge before touching the
motherboard. Modern electronic devices are very sensitive to electro-
static discharges. As a safety precaution, use a grounding wrist strap at
all times. Place all electronic components on a static-dissipative surface
or in a static-shielded bag when they are not in the chassis.
Caution! The computer is provided with a battery-powered real-time clock circuit.
There is a danger of explosion if battery is incorrectly replaced. Replace
only with same or equivalent type recommended by the manufacturer.
Discard used batteries according to manufacturer's instructions.
