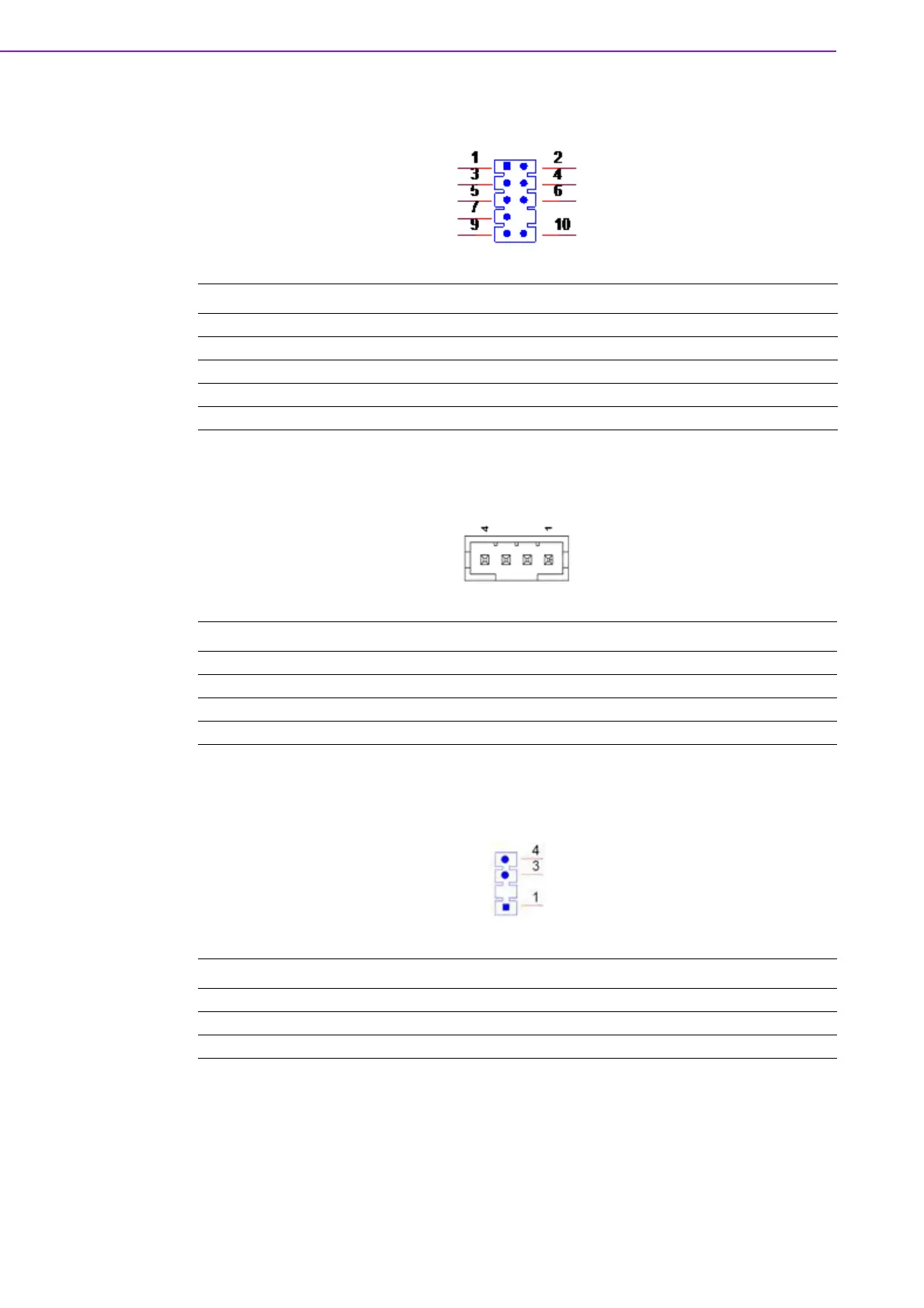

A.14 Front HD Analog Audio Interface (FPAUD1)
A.15 Audio Amplifier Output Connector (AMP1)
A.16 HD Digital Audio Interface (SPDIF1)
Pin Signal Pin Definition Pin Signal Pin Definition
1 MIC IN L 2 GND
3 MIC IN R 4 FPAUD_DETECT#
5 LINE OUT R 6 SENSE R1
7 SENSE 8 KEY
9 LINE OUT L 10 SENSE R2
Pin Signal Pin Definition
1R+
2R-
3L-
4L+
Pin Signal Pin Definition
1+5V
2 SPDIF OUT
3GND
