119 AIMB-286 User Manual
Appendix A I/O Pin Assignments

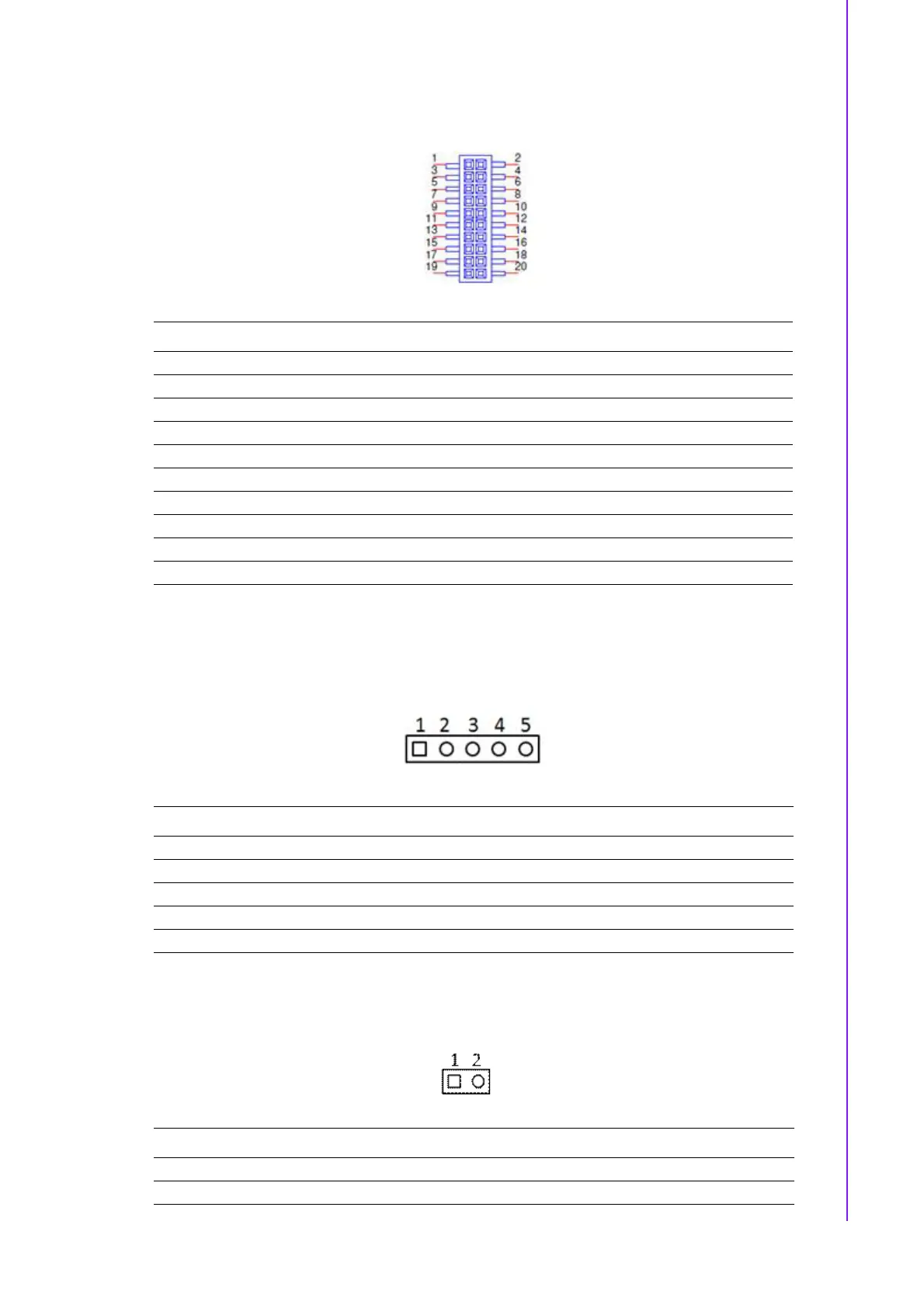

A.30 COM 2 Port (COM12)
A.31 Power LED and Keyboard Lock Pin Header
(JFP2)
A.32 Case-Open Detect Connector (JCASE1)
Pin Signal Pin Definition Pin Signal Pin Definition
1 DCD# [1] 2 DSR# [1]
3 RXD [1] 4 RST# [1]
5 TXD [1] 6 CTS# [1]
7DTR# [1] 8 RI# [1]
9GND 10GND
11 DCD# [2] 12 DSR# [2]
13 RXD [2] 14 RST# [2]
15 TXD [2] 16 CTS# [2]
17 DTR# [2] 18 RI# [2]
19 GND 20 GND
Pin Signal Pin Definition
1 LED Power
2N/C
3GND
4 Keyboard LOCK#
5GND
Pin Signal Pin Definition
1 Case Open
2GND
