Advantech AIMB-286 - ATX Power Supply (5 VSB) Connector (ATX_5 VSB1); USB 3.0 Stack Connector (USB12)

105 AIMB-286 User Manual
Appendix A I/O Pin Assignments

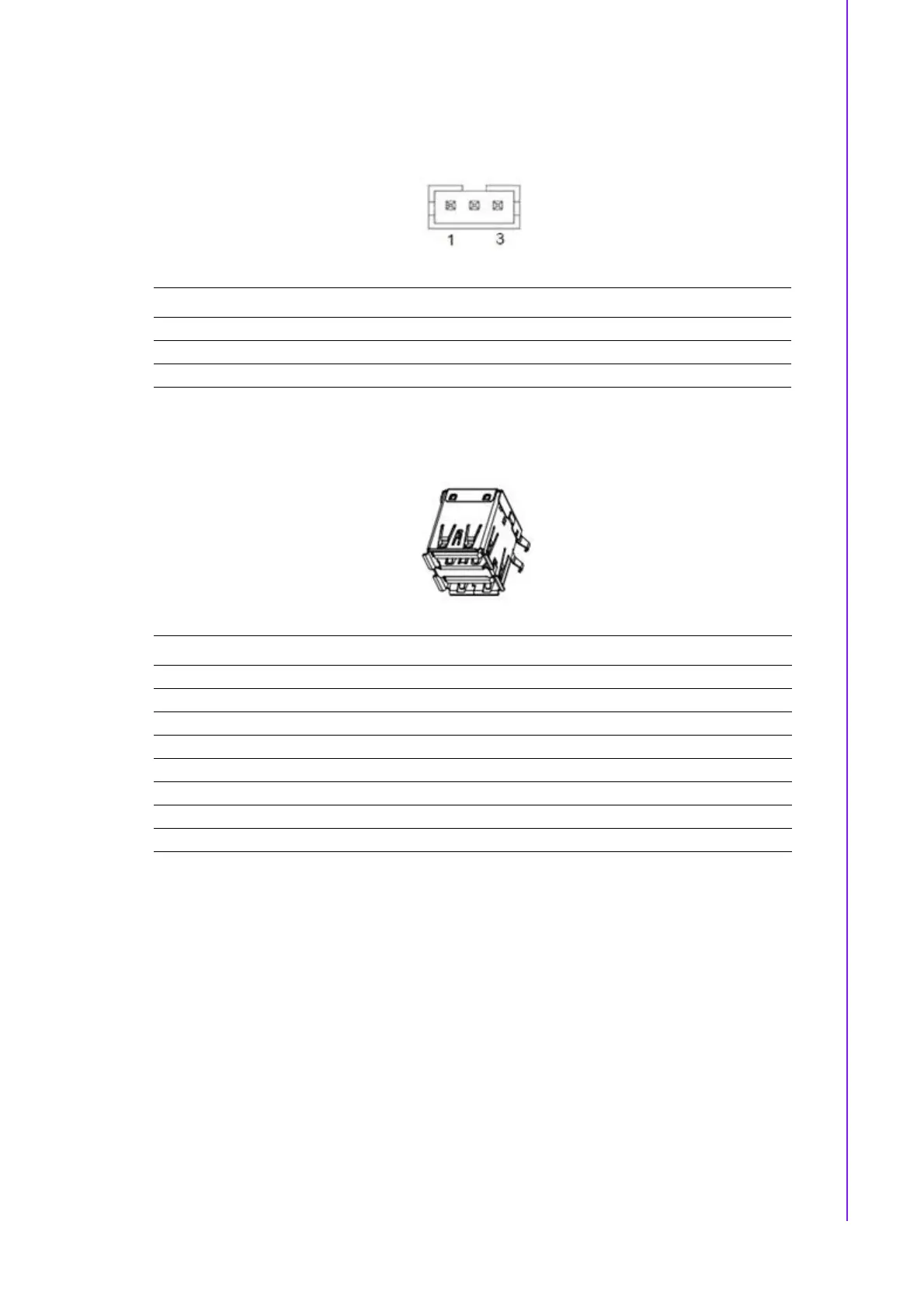

A.3 ATX Power supply (5VSB) connector
(ATX_5VSB1)
A.4 USB 3.0 Stack Connector (USB12)
Pin Signal Pin Definition
1 +V5SB
2GND
3 PS_ON#
Pin Signal Pin Definition Pin Signal Pin Definition
1+5V 11+5V
2 USB_D1- 12 USB_D2-
3 USB_D1+ 13 USB_D2+
4GND 14GND
5 USB31X1_z_RX- 15 USB31X2_z_RX-
6 USB31X1_z_RX+ 16 USB31X2_z_RX+
7GND 17GND
8 USB31X1_z_TX- 18 USB31X2_z_TX-
