Advantech AIMB-286 - CPU FAN Power Connector (CPUFAN1); LVDS Backlight Inverter Power Connector (INV1); SATA Power Connector (SATA_PWR2)

AIMB-286 User Manual 122

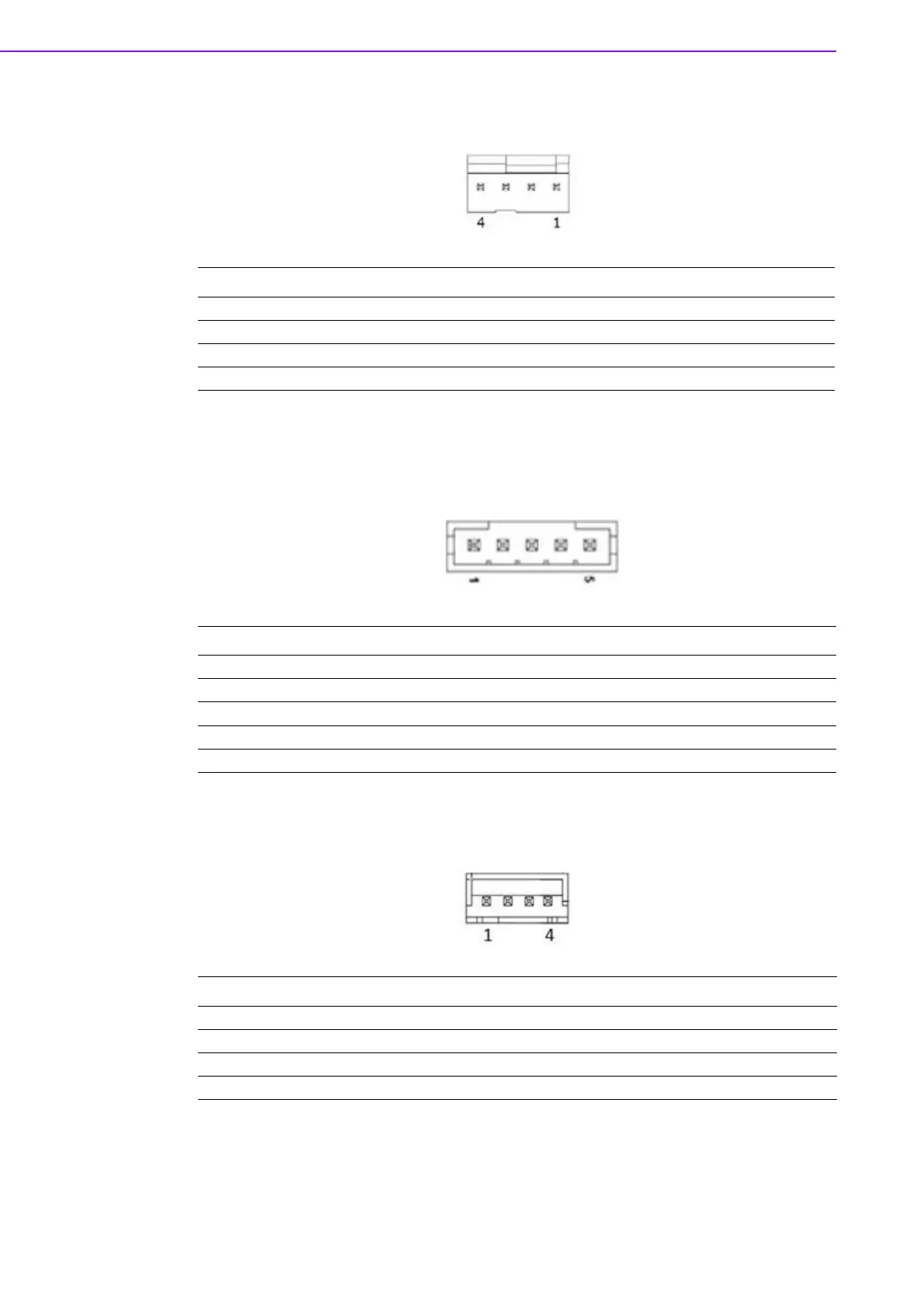

A.39 CPU FAN Power Connector (CPUFAN1)
A.40 LVDS Backlight Inverter Power Connector
(INV1)
A.41 SATA Power Connector (SATA_PWR2)
Pin Signal Pin Definition
1GND
2 CPU FAN VCC
3 CPU FAN SPEED
4 CPU FAN PWM
Pin Signal Pin Definition
1+12V
2GND
3BKL_EN
4BKL_CTRL
5+5V
Pin Signal Pin Definition
1+V5
2GND
3GND
4+V12
