AIMB-286 User Manual 14
2.1 Introduction
You can access most of the connectors from the top of the board as it is being
installed in the chassis. If you have a number of cards installed or have a packed
chassis, you may need to partially remove the card to make all the connections.

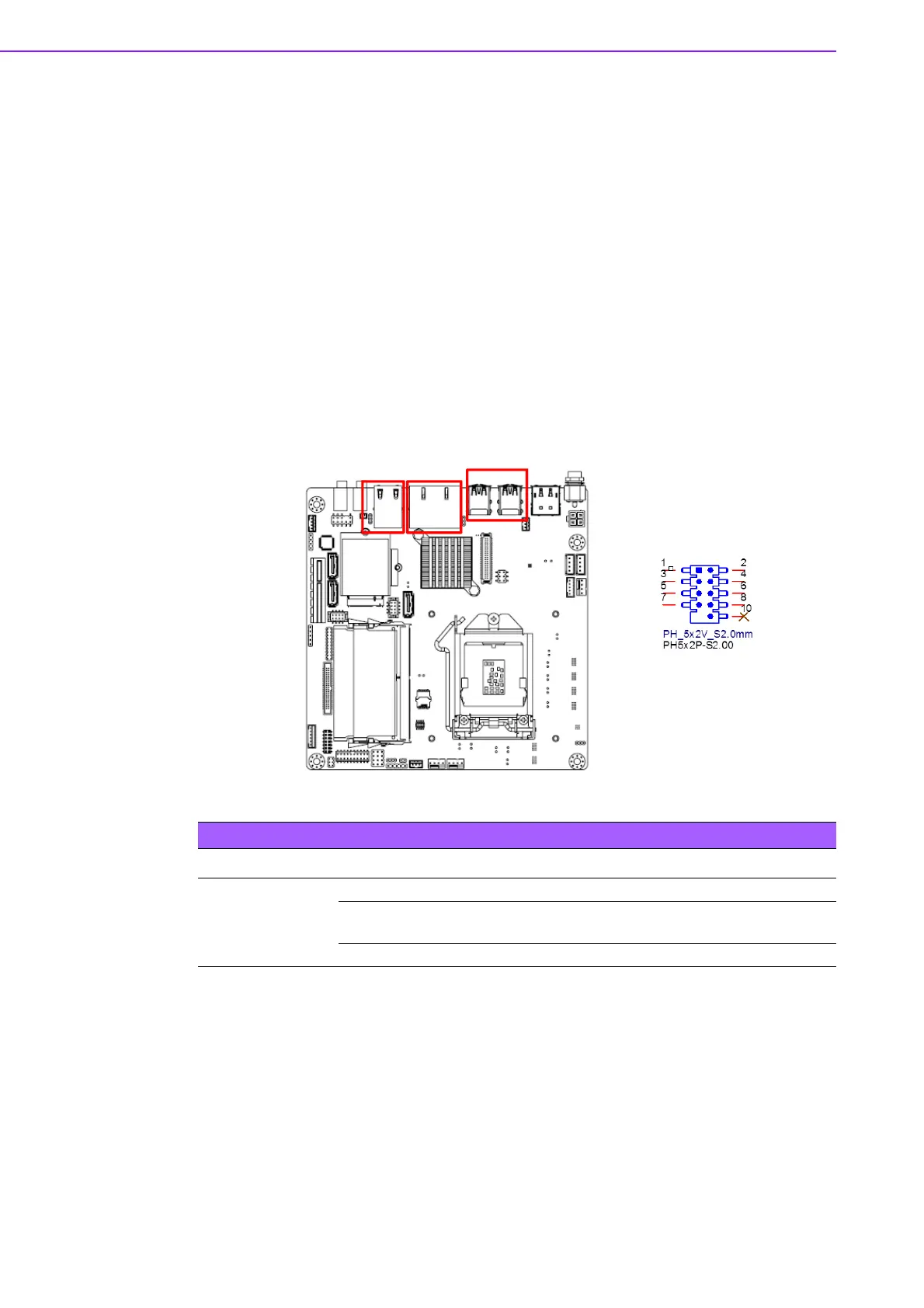

2.2 LAN + USB Ports (LAN1/2/3, USB12, USB34)
The AIMB-286 provides up to 8 USB ports. There are 4 x USB 3.0 on the rear side
and 4 x USB 2.0 pin header on the board. The USB interface complies with the USB
specification revision 2.0 that supports transmission rates of up to 480 Mbps, revision
3.0 that supports transmission rates of up to 5 Gbps, and is also fuse protected. Fur-
thermore, the USB interface can be disabled in the system BIOS setup menu.
The AIMB-286 is equipped with three high-performance 1000 Mbps Ethernet LAN
adapter, which are supported by all major network operating systems. The RJ-45
jacks on the rear panel provides for convenient LAN connection.
Table 2.1: LAN LED Indicator
LAN Mode LAN Indicator
LAN1/LAN2/LAN3
indicator
LED1 (Right) off for mal-link; Link (On) / Active (Flash)
LED2 (Left)
100 Mbps (On) / 10 Mbps (Off);
Color: Orange (10/100 Mbps)
LED2 (Left) 1000 Mbps (On); Color: Green (1000 Mbps)
