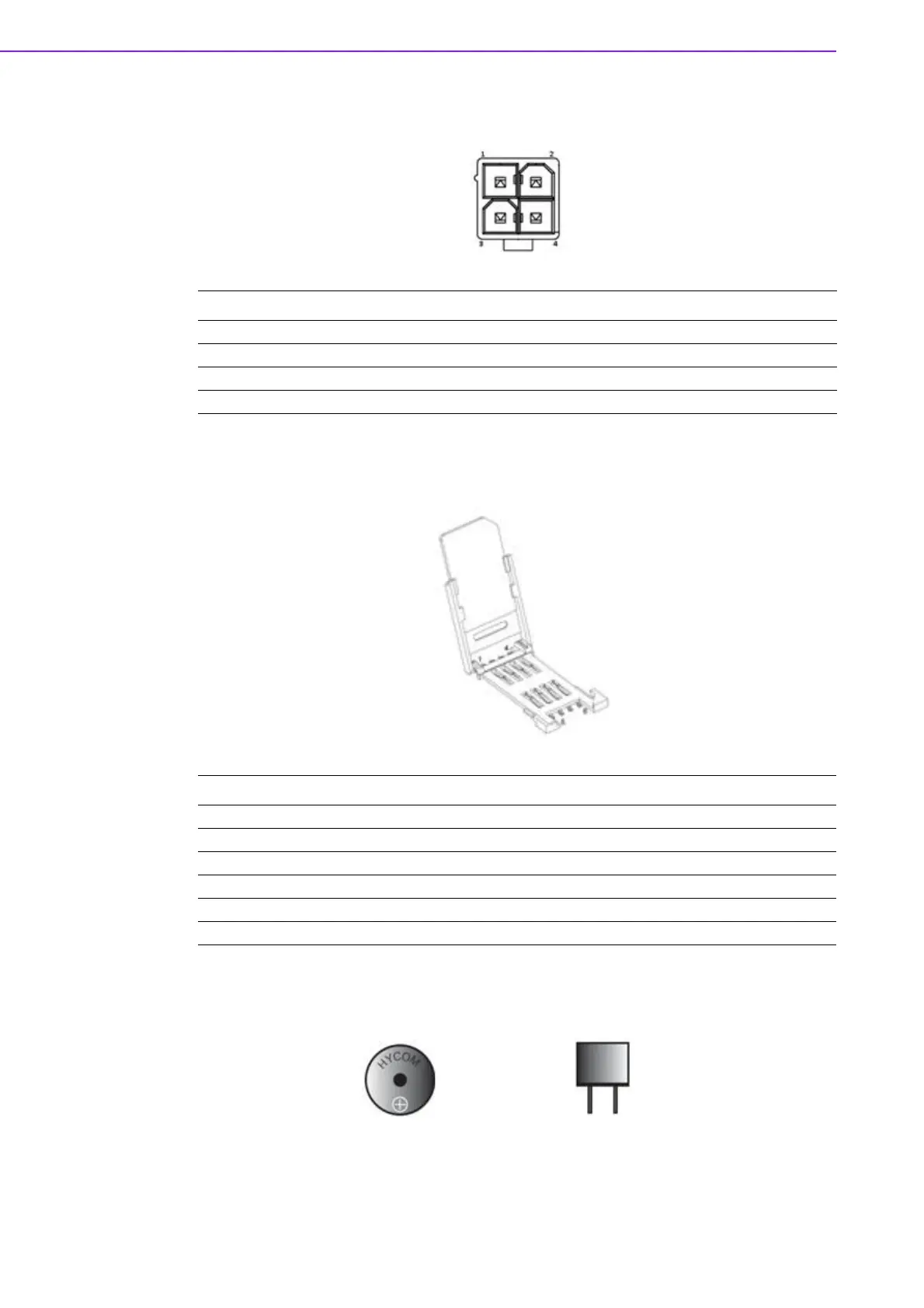

AIMB-286 User Manual 124
A.44 ATX 12V Power Supply Connector (ATX12V1)
A.45 SIM Card Connector (SIM1)
A.46 Buzzer (SP1)
Pin Signal Pin Definition
1GND
2GND
3+12V
4+12V
Pin Signal Pin Definition
C1 UIM_PWR
C2 UIM_RESET
C3 UIM_CLK
C5 GND
C6 UIM_VPP
C7 UIM_DATA
