Advantech AIMB-286 - PS;2 Keyboard and Mouse Connector (KBMS1); Low Pin Count Header (LPC1)

AIMB-286 User Manual 118

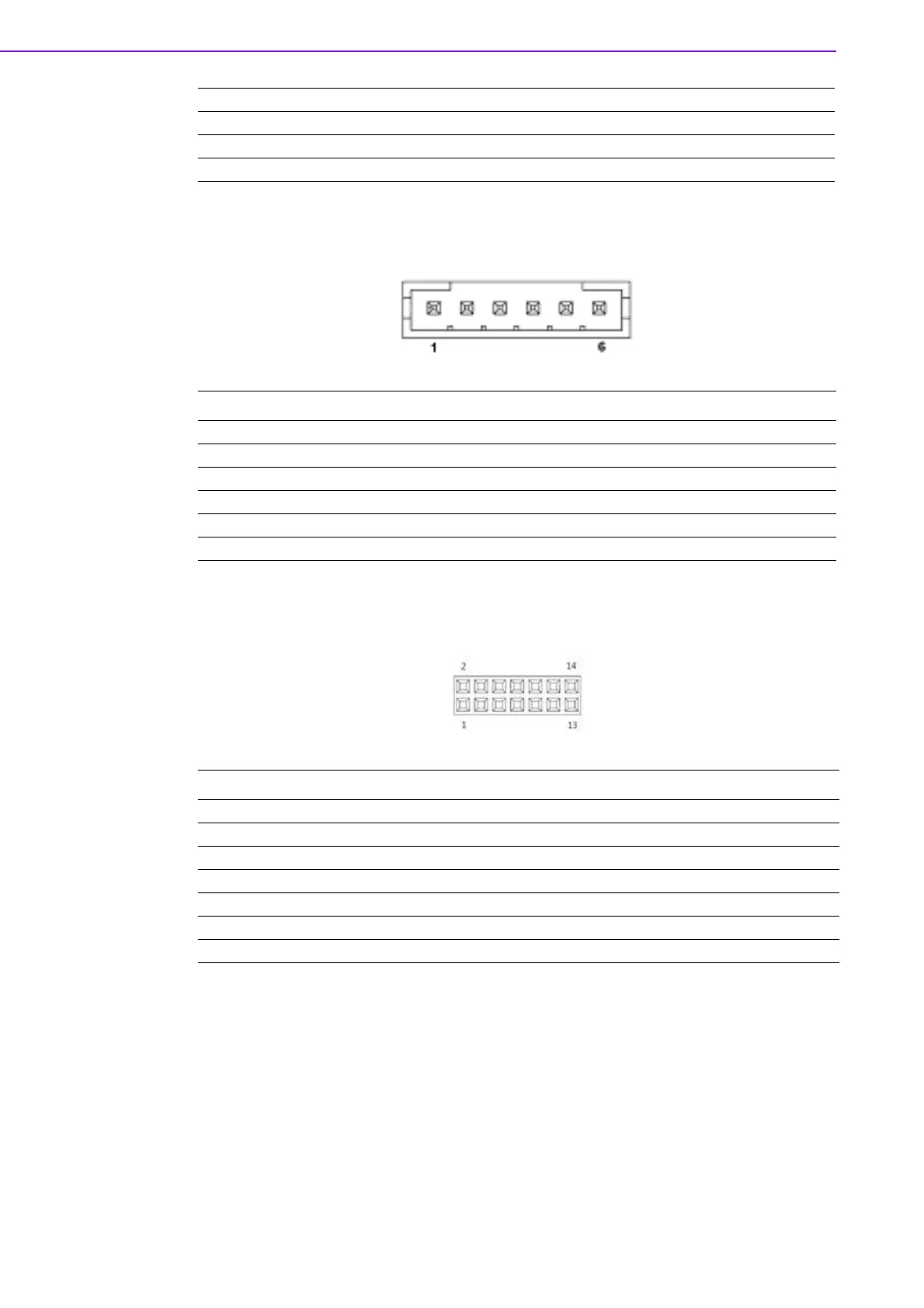

A.28 PS/2 Keyboard and Mouse Connector (KBMS1)
A.29 Low Pin Count Header (LPC1)
33 RXD [6] 34 RST# [6]
35 TXD [6] 36 CTS# [6]
37 DTR# [6] 38 RI# [6]
39 GND 40 GND
Pin Signal Pin Definition
1KB CLK
2KB DATA
3MS CLK
4GND
5+5V
6MS DATA
Pin Signal Pin Definition Pin Signal Pin Definition
1 CLK (24MHz) 2 AD1
3 RESET# 4 AD0
5FRAME# 6 +3.3V
7 AD3 8 GND
9 AD2 10 SMB_CLK
11 SERIRQ 12 SMB_DATA
13 +5VSB 14 +5V
