51 AIMB-286 User Manual
Chapter 3 BIOS Operation
Serial Port [ Enabled ]
Device Settings: IO=2F8h; IRQ =3
Change Settings [ Auto ]
To select an optimal setting for serial port 2.
RS485 Auto Flow Control Function [ Disabled ]

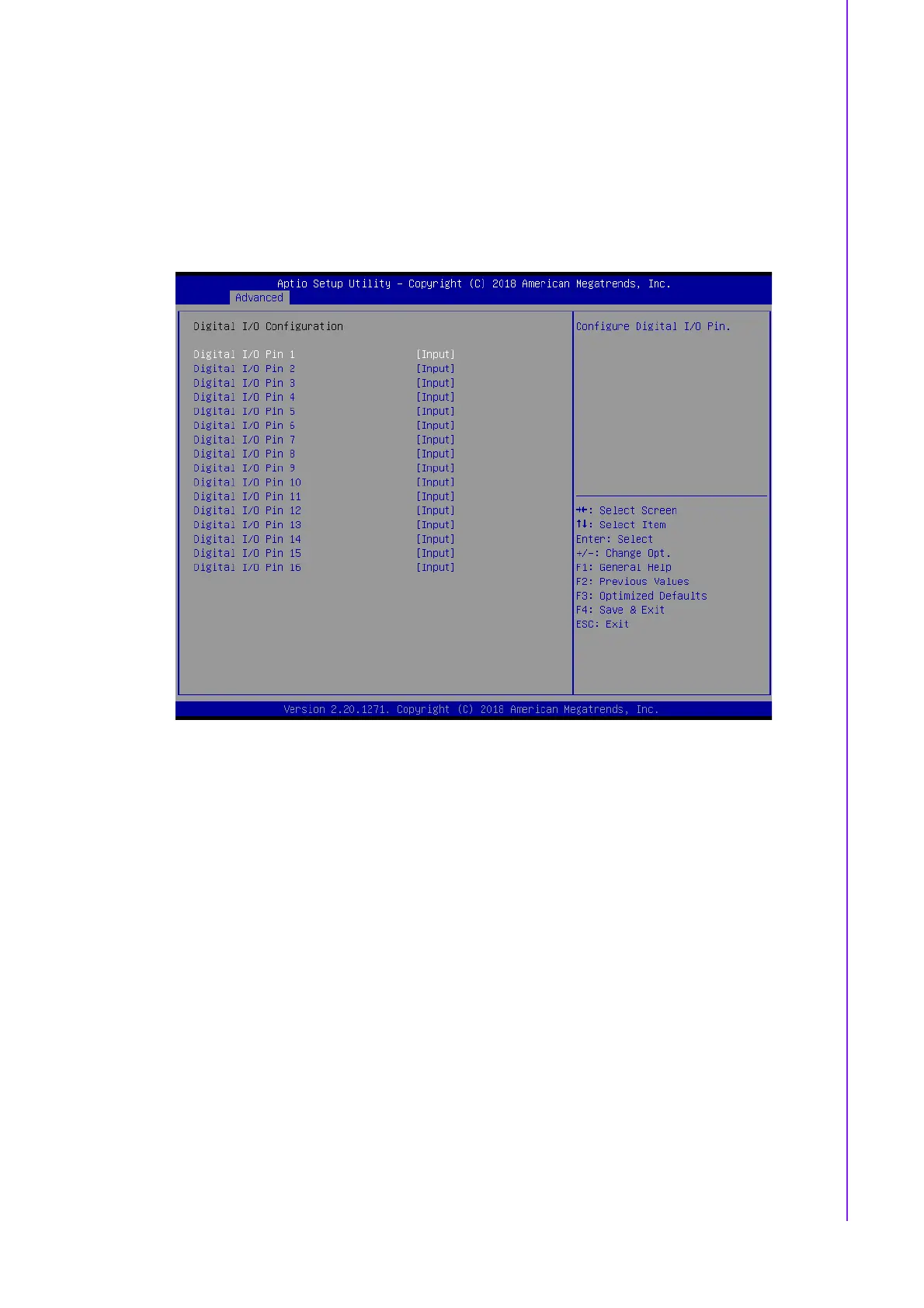

Digital I/O Configuration
Digital I/O Pin 1 - 16 [ Input ]
