AIMB-286 User Manual 74

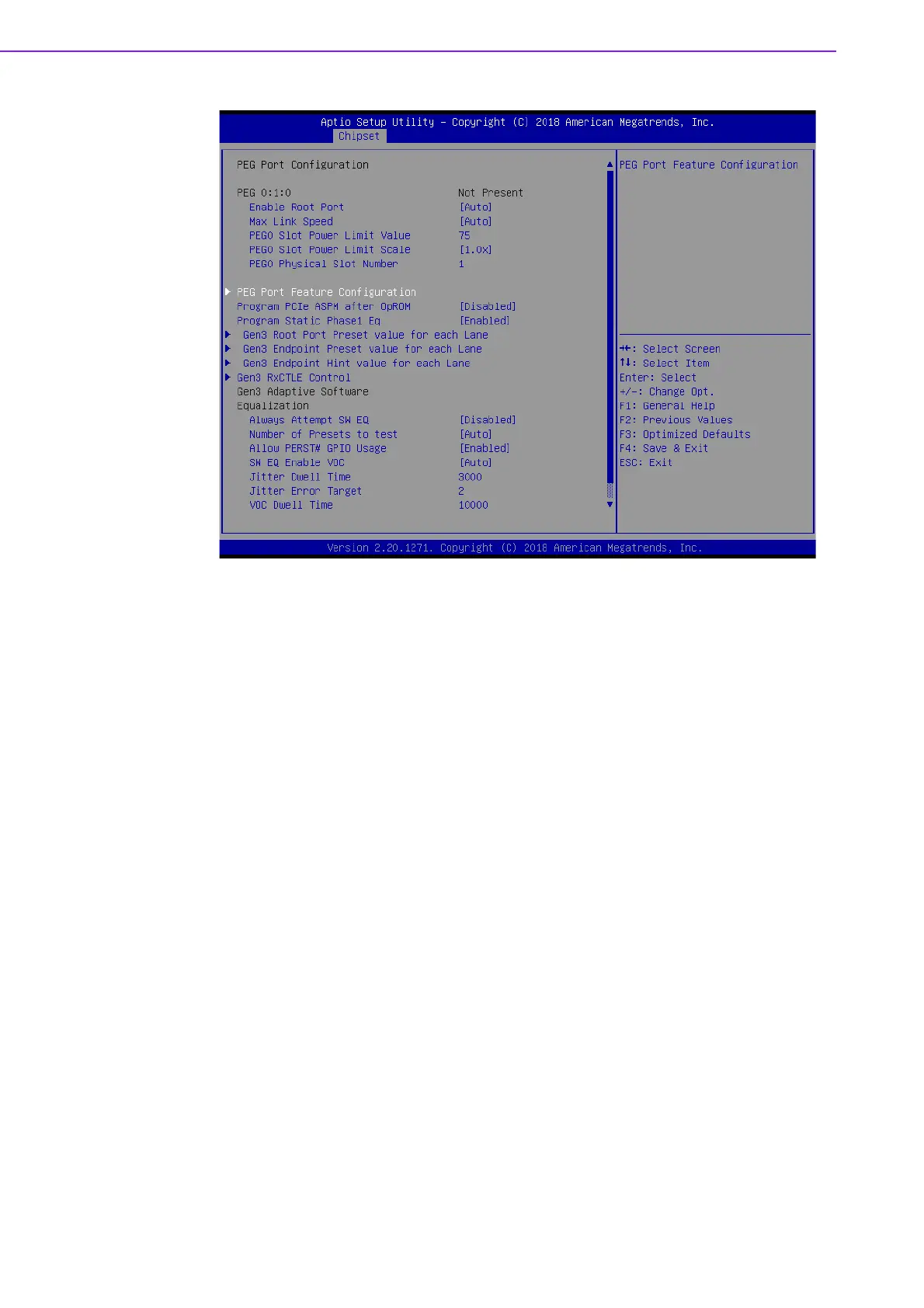

 Enable Root Port [ Auto ]
 Max Link Speed [Auto]
 PEG0 Slot Power Limit Scale [1.0x]
 Program PCIe ASPM after OpROM [ Disabled ]
Enabled: PCIe ASPM will be programmed after OpROM.
Disabled: PCIe ASPM will be programmed before OpROM.
 Program Static Phase1 Eq [Enabled]
 Always Attempt SW EQ [Disabled]
 Number of Presets to test [Auto]
 Allow PERST# GPIO Usage [Enabled]
 SW EQ Enable VOC [Auto]
