AIMB-286 User Manual 84
 L1 Substates [ Disabled ]
 Hot Plug [ Disabled ]
 Advanced Errors Reporting [ Disabled ]
 PCIE Speed [Auto ]

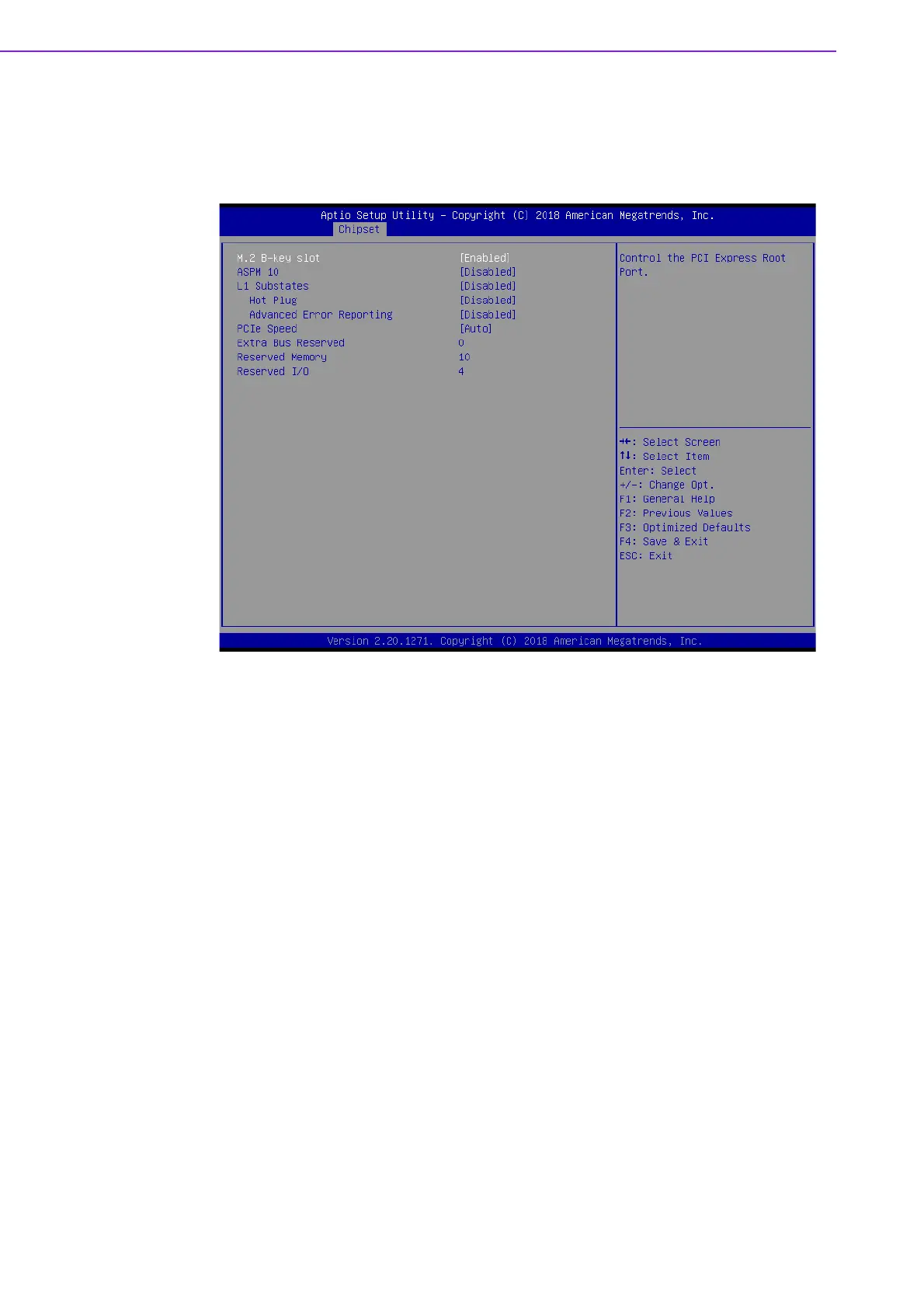

M.2 B-key slot
 M.2 B-Key slot [ Enabled ]
Control the M.2 E-Key Root Port.
 ASPM 10 [ Disabled ]
Set the ASPM Level: Force L0s - Force all links to L0s State : AUTO - BIOS
auto configure : DISABLE - Disables ASPM
 L1 Substates [ Disabled ]
 Hot Plug [ Disabled ]
 Advanced Errors Reporting [ Disabled ]
 PCIE Speed [Auto ]
