FWA-3260 User Manual v02_20160302.docx Copyright 2014 Advantech Co. Ltd. All rights reserved. Page 33

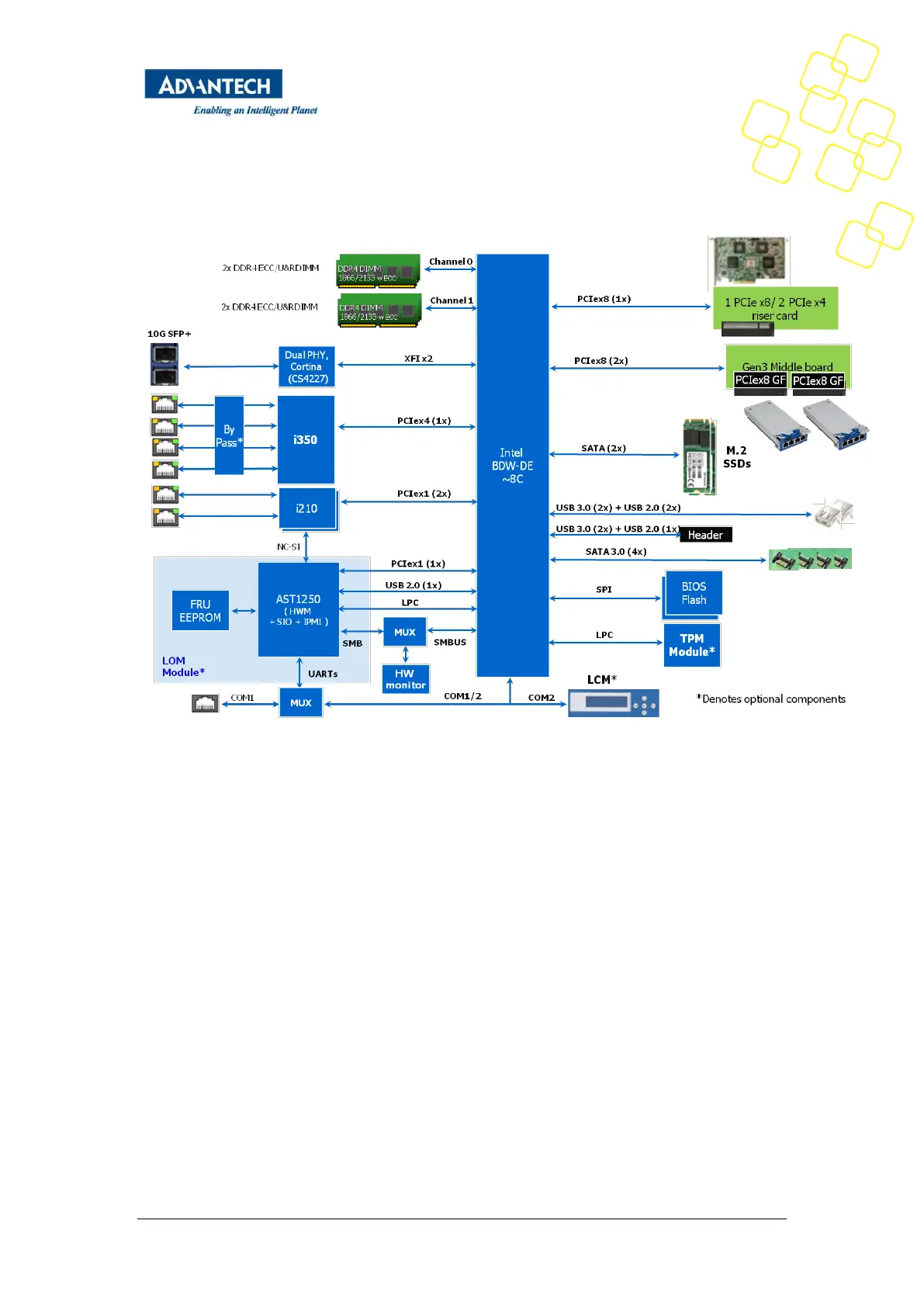

2.4.3 System block diagram
Figure 13: Block diagram
2.4.4 Processor(s)
The FWA-3260 supports one Xeon D processor. The table below gives an overview of the
processor SKUs for Network and Storage infrastructure which can be supported on the FWA-
3260:
