Advantech FWA-3260 - Figure 71: Stacked USB Type a Connector; Figure 72: RJ45 10;100;1000 Base-T Connector; Table 46: Stacked USB Type a Connector Pin Assignment

FWA-3260 User Manual v02_20160302.docx Copyright 2014 Advantech Co. Ltd. All rights reserved. Page 95

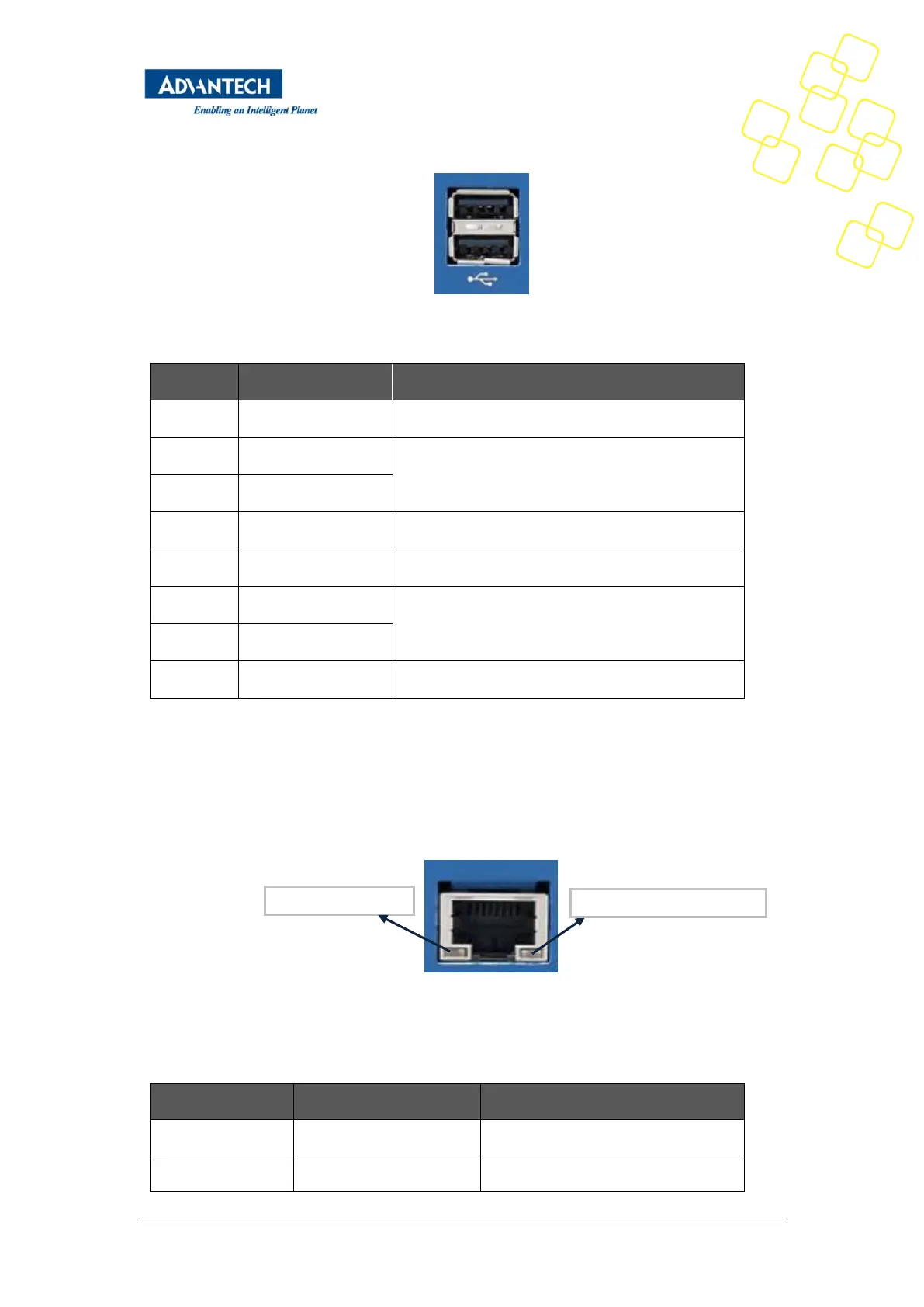

Figure 71: Stacked USB Type A connector
Pin No.
Signal Name
Description
1
VCC_USB0
USB Supply Voltage Port 0 (5V@500mA, fused)
2
USB0N
USB Port 0 Differential Pair
3
USB0P
4
GND
Digital Circuit Ground
5
VCC_USB1
USB Supply Voltage Port 1 (5V@500mA, fused)
6
USB1N
USB Port 1 Differential Pair
7
USB1P
8
GND
Digital Circuit Ground
Table 46: Stacked USB Type A connector pin assignment
A.3) RJ45 10/100/1000 BASE-T ports
These connectors can be found at positions F6 through F7
Figure 72: RJ45 10/100/1000 Base-T connector
A.3.1) Connector Pinout
Pin No.
Signal Name
Description
1
MDI[0]+
Media Dependent Interface[0]+
2
MDI[0]-
Media Dependent Interface[0]-
Left: Speed LED
Right: Link/Active LED
