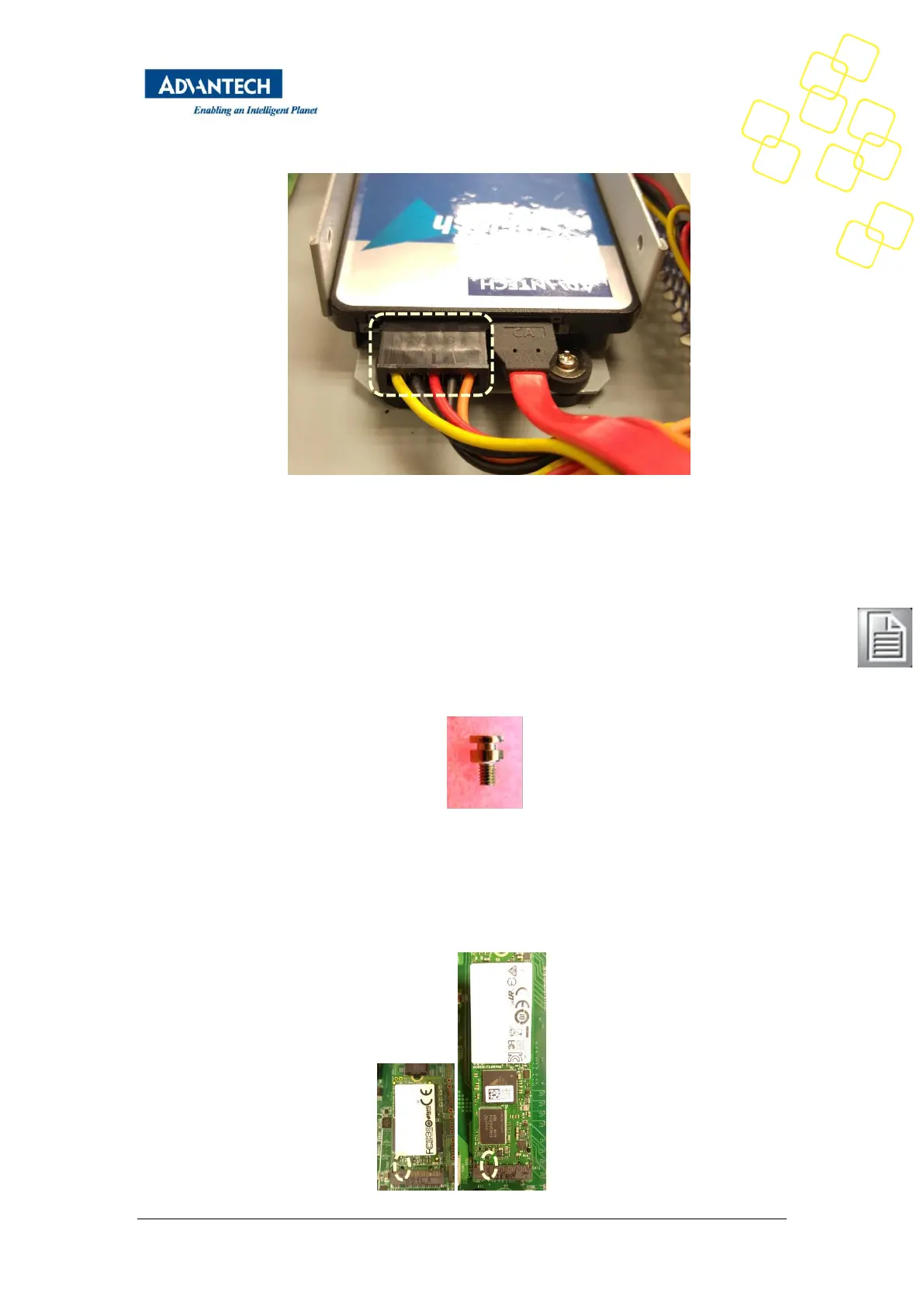

Figure 58: HDD Power cable
3.3.3.2 M.2 SSD
You need:
- a PH1 screw driver
- a standard M.2 SSD
- the M.2 SSD mounting screw (included in the unit)
Figure 59: M.2 SSD mounting screw
An M.2 SSD compliant SSD can be installed at location M3:
1) Make sure the M.2 SSD disk is compliant with the socket and that the mechanical
keys match
