A. APPENDIX: CONNECTOR PINOUT AND LED INFORMATION
A.1) Console Port (RS232)
This connector can be found at position F5.
Please note that this RJ45 connector for the console, in contrast to RJ45 connectors for
network ports, does not feature any integrated LEDs.

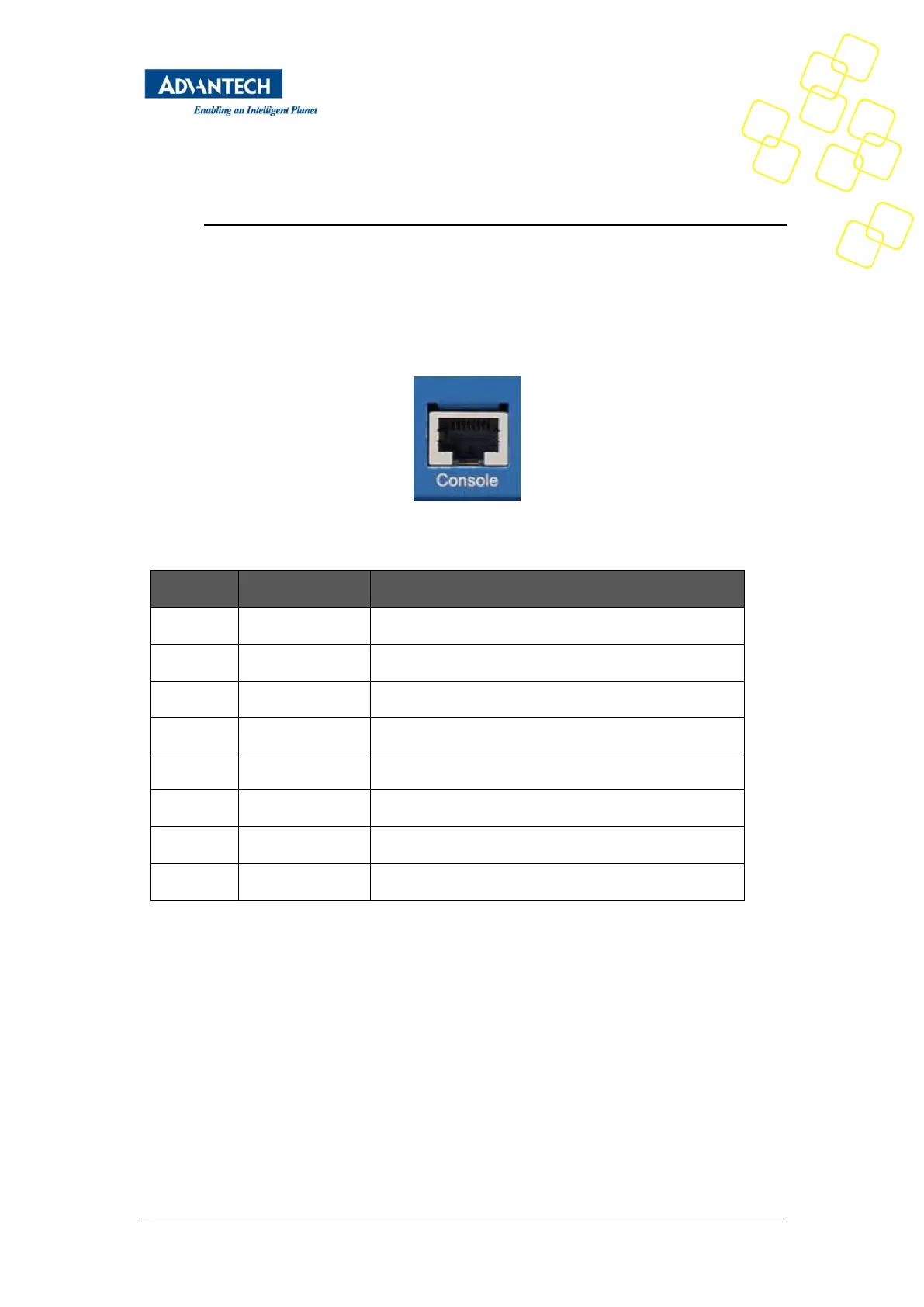

Figure 70: RJ45 Console connector
Pin No.
Signal Name
Description
1
n.c.
Not connected
2
n.c.
Not connected
3
TX
Transmit Data (Output from FWA-3260)
4
GND
Digital Circuit Ground
5
GND
Digital Circuit Ground
6
RX
Receive Data (input to FWA-3260)
7
n.c.
Not connected
8
n.c.
Not connected
Table 45: Console connector pin assignment
A.2) USB Type A connectors
These connectors can be found at position
