Advantech FWA-3260 - Figure 37: Hardware Setup: QPI Configuration; Table 35: Hardware Setup: QPI Configuration Menu Items

FWA-3260 User Manual v02_20160302.docx Copyright 2014 Advantech Co. Ltd. All rights reserved. Page 69

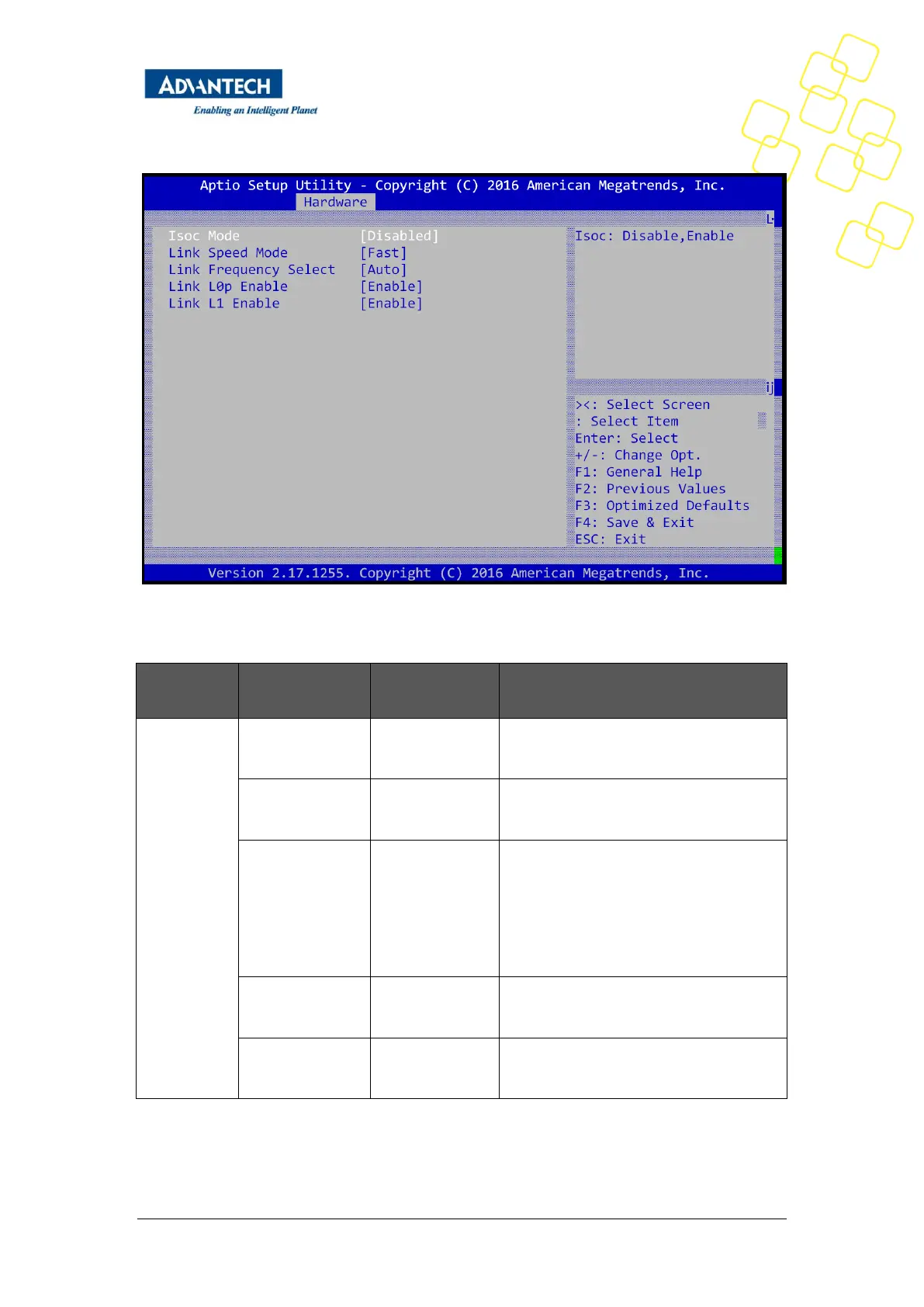

Figure 37: Hardware Setup: QPI configuration
Group
Setup item
Access /
Options
Description
None
Isoc
Enabled
Disable
Enable/disable ISOC
Link Speed Mode
Fast
Slow
Select QPI link speed as either the POR
speed (Fast) or default speed (slow)
Link Frequency
Select
Auto
6.4 GB/s
8.0 GB/s
9.6 GB/s
Auto Limited
Allows for Selecting the QPI link frequency
Link0p Enable
Enabled
Disabled
Enable/disable Link0
Link1p Enable
Enabled
Disabled
Enable/disable Link1
Table 35: Hardware Setup: QPI configuration Menu Items
