Sensor
Description
T1
Air Inlet Sensor
T2
CPU Temperature Sensors (integrated into
SoC)
T3
Air Outlet Sensor
Table 20: Thermal Sensors
2.4.14 Power Supplies
The FWA-3260 supports a single AC and redundant PSU wide range PSU located at position
Rx. Technical specification for the power supply can be found in appendix C.
2.4.14.1 Product Labelling
The FWA-3260 contains a number of labels that help to identify the product as well as the
MAC addresses used by the system. The type label is placed on the bottom side of the unit
and other labels can be found inside the unit.

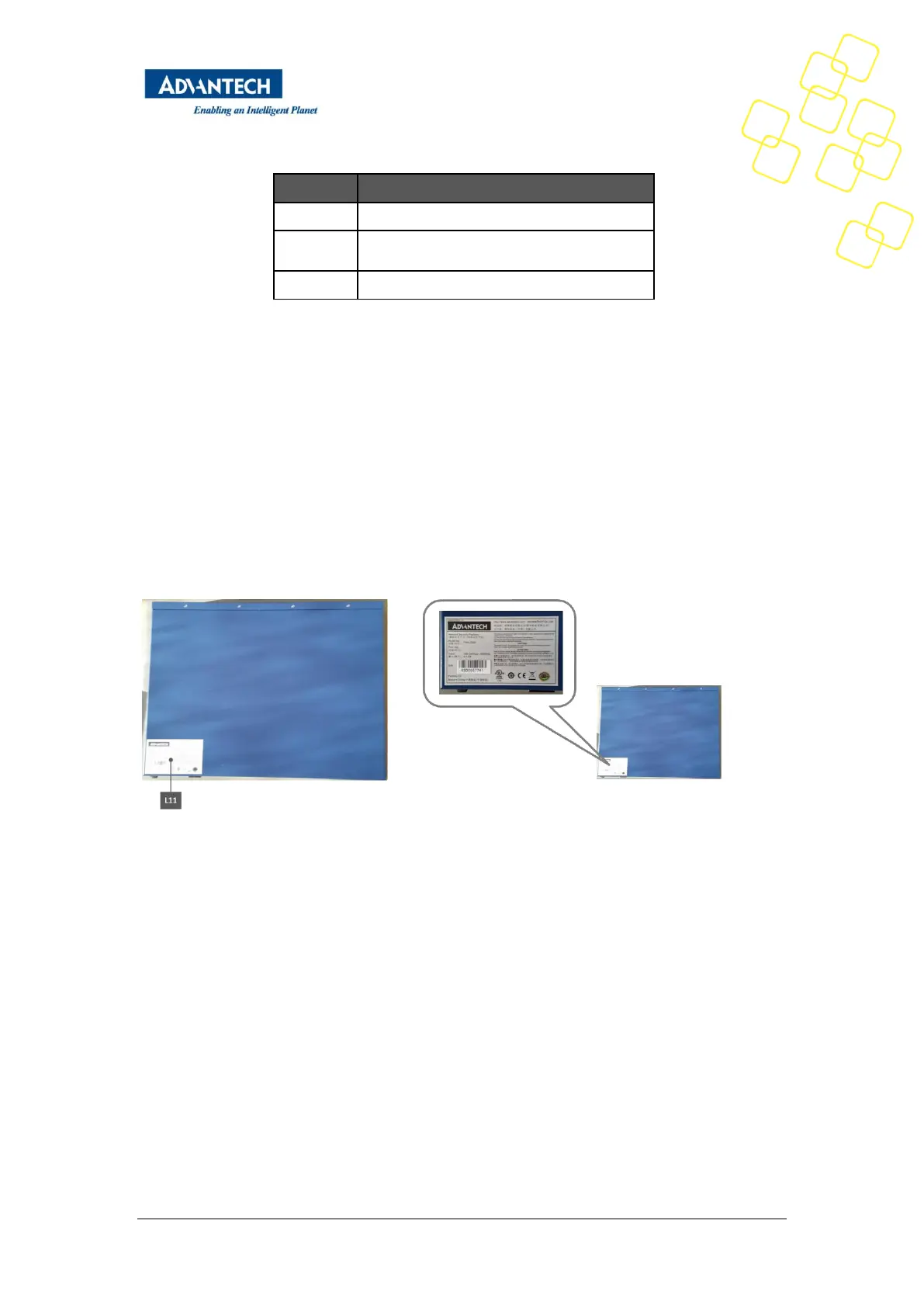

Figure 18: Type Label (bottom)
