advidia VP-8-V2 - Alarm Connections; Alarm Input Connections

VP-8-V2 and VP-16-V2 Series Encoder
·
User Manual
9

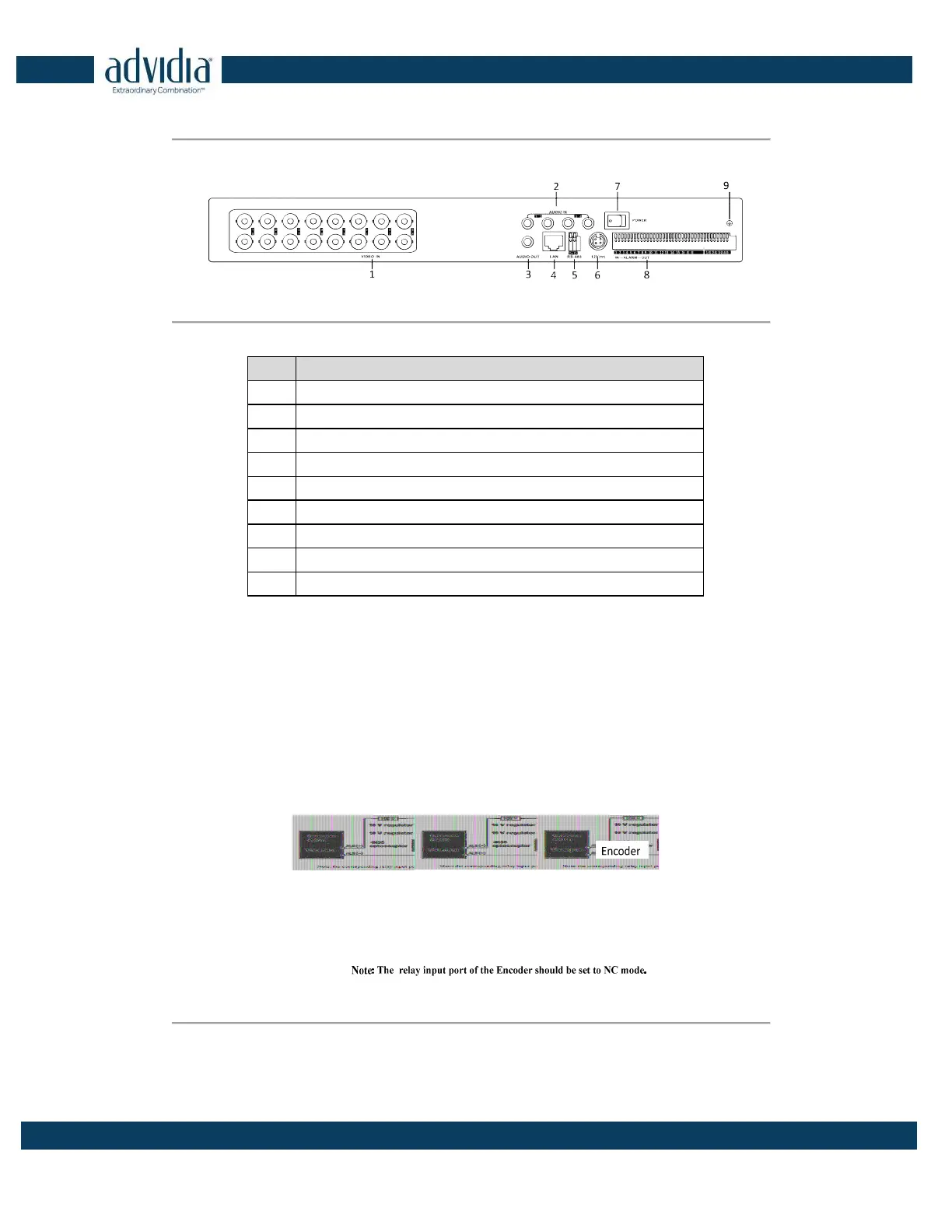

Figure 1. 2 VP-8-V2 Rear Panel
VP-16-V2:
Figure 1. 3 VP-16-V2
Table 1. 2 Interface Description
Description
1
VIDEO IN
2
AUDIO IN, RCA Connector
3
AUDIO OUT, RCA Connector
4
LAN Network Interface
5
RS-485 Serial Interface
6
12 VDC Power Input
7
Power Switch
8
ALARM IN and ALARM OUT
9
GND
1.3 Alarm Connections
1.3.1 Alarm Input Connections
VP-8-V2 AND VP-16-V2 supports the open/close relay input as the alarm input mode. For the alarm input signal
not in open/close relay signal mode, please follow the connections shown as below:
Alarm input connections for Emerson Alarm:
Figure 1. 4 Alarm Input Connections for Emerson Alarm
Alarm input connections for Normal Alarm:
