VP-8-V2 and VP-16-V2 Series Encoder
·
User Manual
8

Remotely start/stop recording

Remotely start/stop alarm output

Remote PTZ control

Remote JPEG capture

Two-way audio and voice broadcasting

Embedded WEB server
Chapter 1 Introduction
1.1
Front Panel
VP-8-V2/VP-16-V2:

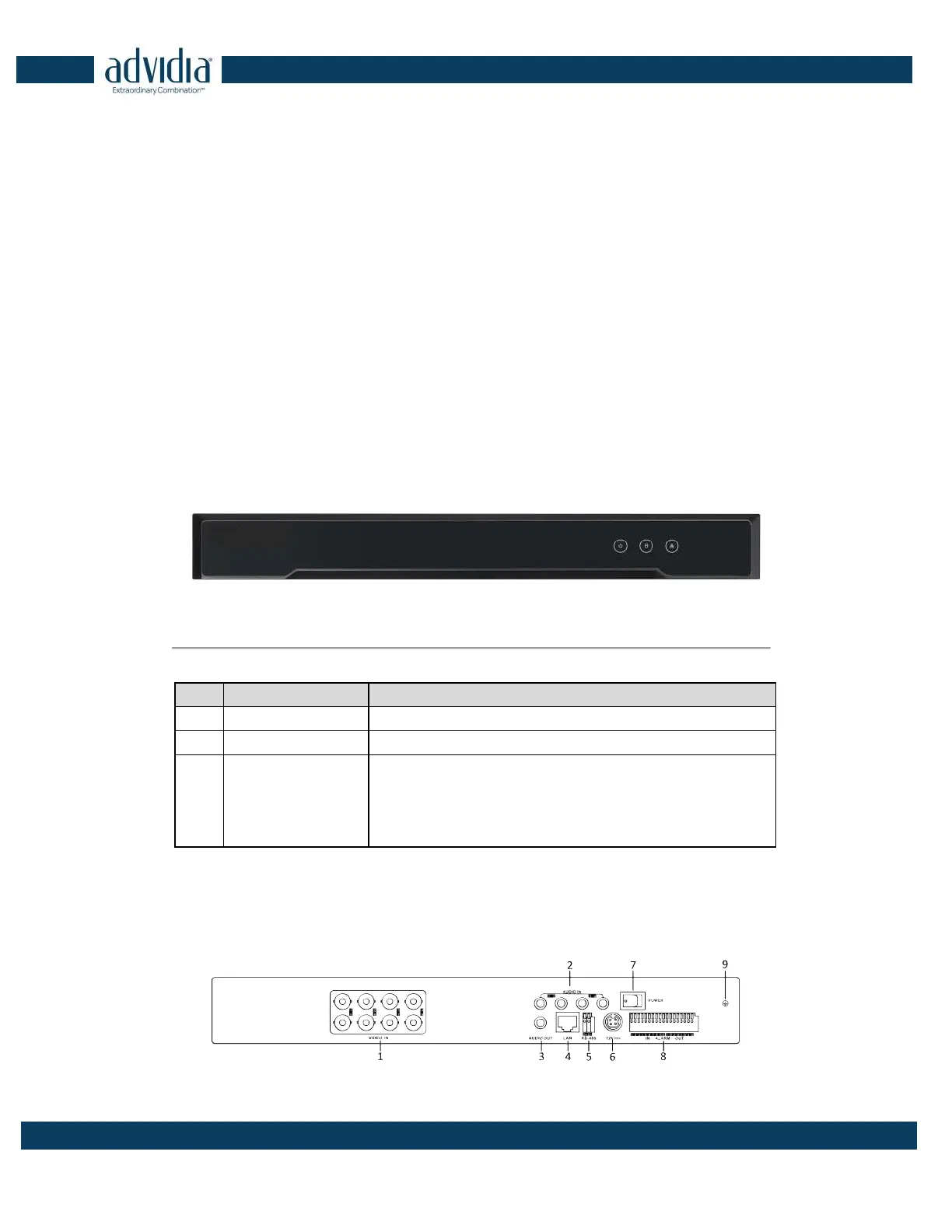

Figure 1. 1 VP-8-V2/VP-16-V2 Front Panel
Table 1. 1 Indicator Description
Indicator Description
1 POWER Lights in green when the device is powered on.
2 Not Used
3 Tx/Rx 1. Does not light when the network is not connected;
2. Blinks in green when the data is transmitting / receiving;
3. Blinks at higher frequency when the data for transmitting /
receiving is larger.
1.2
Rear Panel
VP-8-V2:
