3 Installation
IST Series UPS (10kVA-200kVA)
User Manual
40

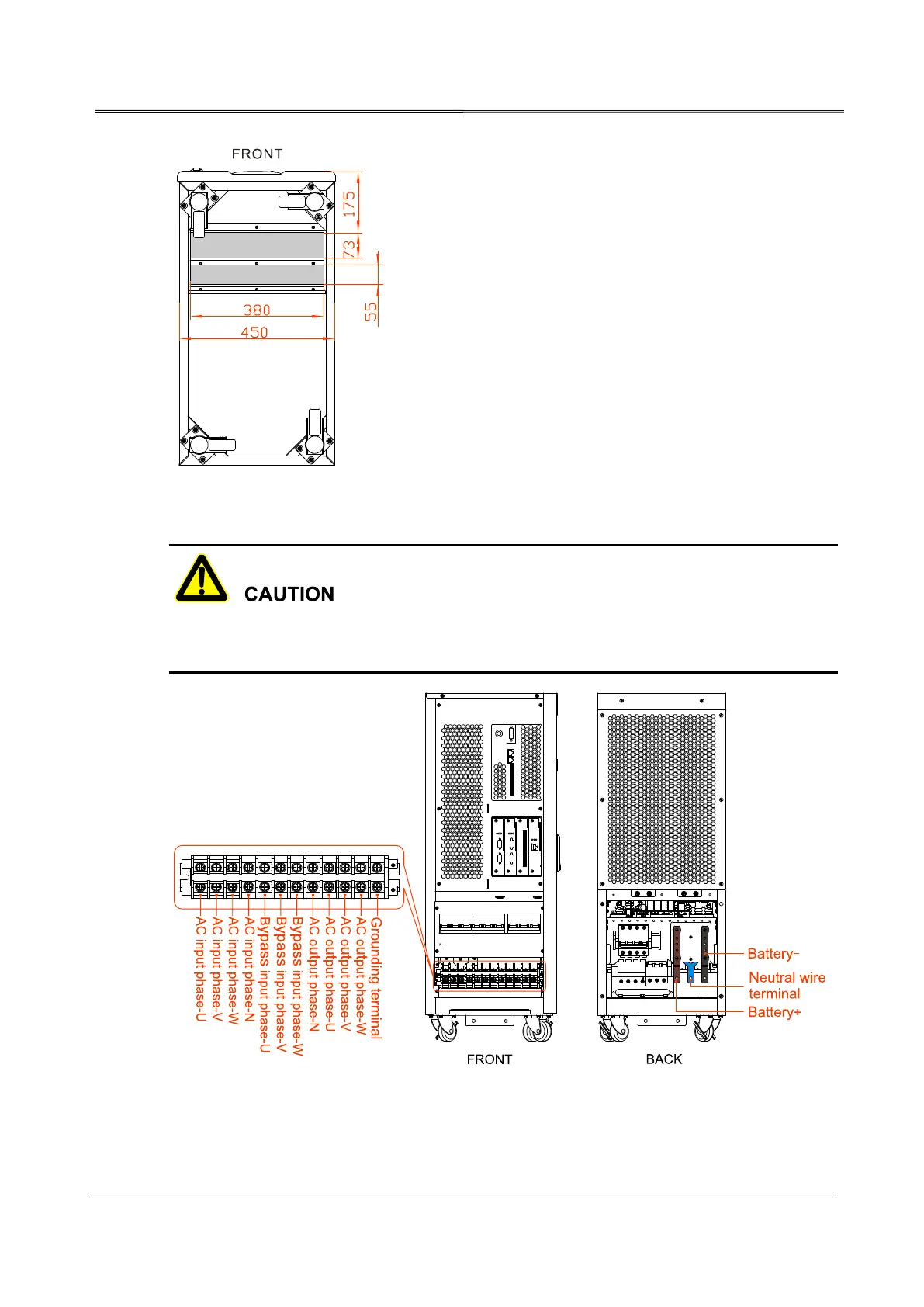

Figure3-18 Bottom wiring holes diagram of 50kVA, 80kVA, 100kVA, 140kVA, 140kVA
While wiring, ensure that the input and out wires are reliably connected with input and output
terminal, and do not reverse connect or bad connect.
Figure3-19 Wiring terminals diagram of 10kVA, 20kVA, 30kVA, 40kVA
