AEMC 5050 - Measurement Ranges

24 Megohmmeter Models 5050/5060
Max. Overload of Voltage Vn: (1.05+dISt)Vn+50V
 withdISt-0.03-0.10or0.20
Nominal Current:>1mADC
Short-circuit Current: <1.6mA±5%
Load Current: 3mADCapproxwhenstartingmeasurement
Max. Acceptable AC Voltage:
Vpeak-(1.05+dISt)VnwithdISt=0.03-0.10or0.20
Measurement Ranges:
500V:30kΩ to 1TΩ 2500V:300kΩ to 9.99TΩ
1000V:100kΩ to 3.999TΩ 5000V:300kΩ to 9.99TΩ
Variable: 40Vto5100V(seegraphbelow)
12
Rmax (T
Ω)
Variable Voltage (V)

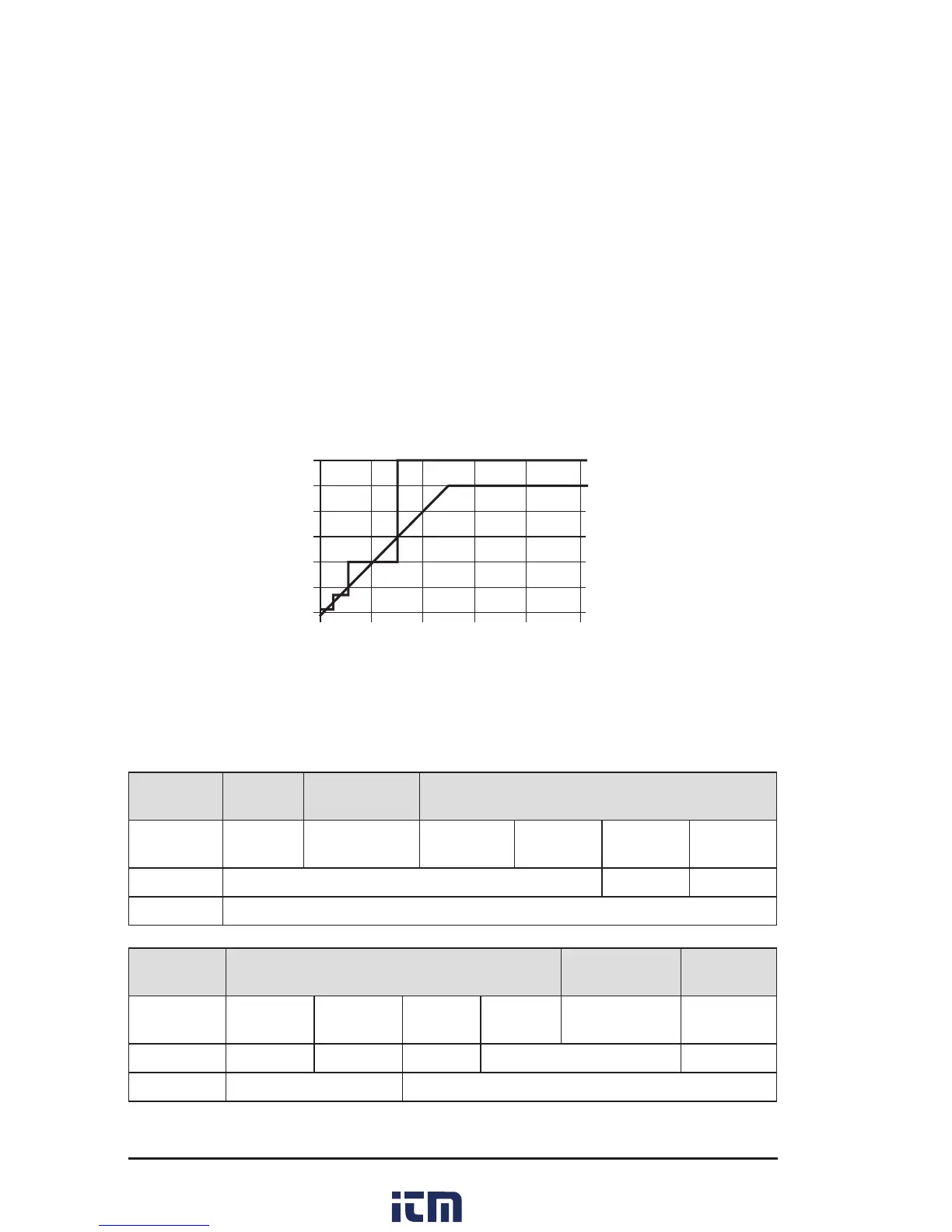

Resistance Range in Voltage Mode
10
8
6
4
2
0
01000 2000 3000 4000 5000
300
Rmin (kΩ
)
250
200
150
100
50
0
Resolution and Accuracy Chart (seecurves-pages26and27)
Test
Voltage
500V 500V - 1000V 500V - 1000V - 2500V - 5000V
Range 30 to 99kΩ 100 to 299kΩ 300 to 999kΩ
1MΩ to
3.999kΩ
4.00 to
39.99MΩ
40.0 to
399.9MΩ
Resolution 1kΩ 10kΩ 100kΩ
Accuracy ±5% of Reading + 3cts
Test
Voltage
500V - 1000V - 2500V - 5000V
1000V - 2500V
5000V
2500V
5000V
Range
400MΩ to
3.999GΩ
4.00 to
39.99GΩ
40.0 to
399.9GΩ
400GΩ to
1.999TΩ
2.000 to 3.999TΩ
4.00 to
10.00TΩ
Resolution 1MΩ 10MΩ 100MΩ 1GΩ 10GΩ
Accuracy ±5% of Reading + 3cts ±15% of Reading + 10cts
