7.4 DataView
®
Megohmmeter Templates
7.4.1 Megohmmeter Summary Report Template
TheMegohmmeterSummary Report templategeneratesaview withtwowork-

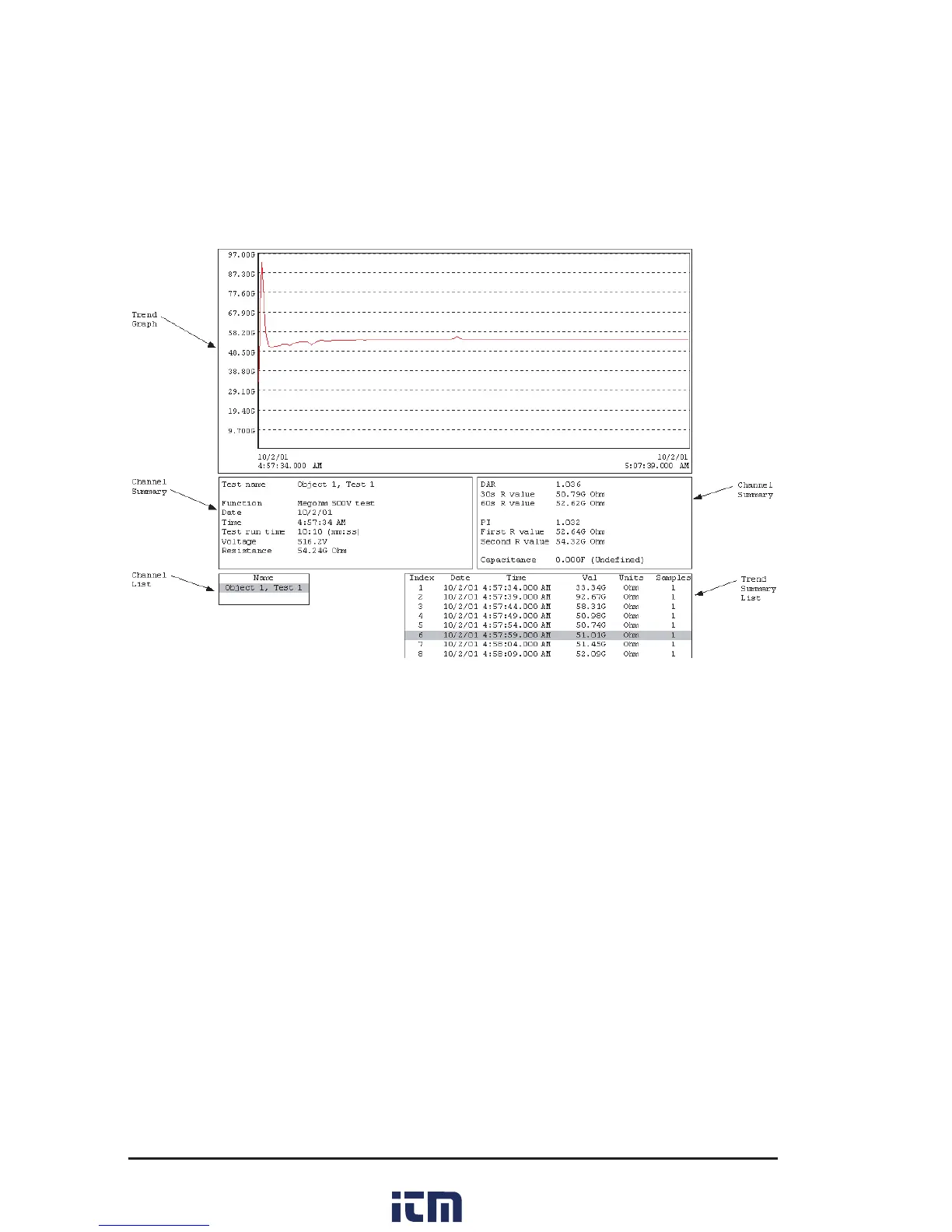

sheets.AnexampleoftherstpageisshowninFigure7-9below.
Figure 7-9
Thisworksheetcontainsthefollowingframes:
• Trend Graph: Thisframeprovidesagraphofthemeasurementpointsin
theselectedtest.
• Channel Summary: This frame displays a textual summary of the
selected test.
• Channel List: Thisframedisplaysalistoftests.Ifmorethanonetest
islistedyoucandisplaytheresultsofeachtestbyselectingitwiththe
mousepointer.
• Trend Summary List: Thisframedisplaysatextuallistsummaryofthe
samplepointsforaselectedtest.Eachsummarylinecontainsuser-spec-
iedparametersofagroupofsamplepoints.
AnexampleofthelastworksheetisshowninFigure7-10.
