AEMC 5050 - Capacitance Measurement; Residual And Leakage Current Measurement

Megohmmeter Models 5050/5060 35

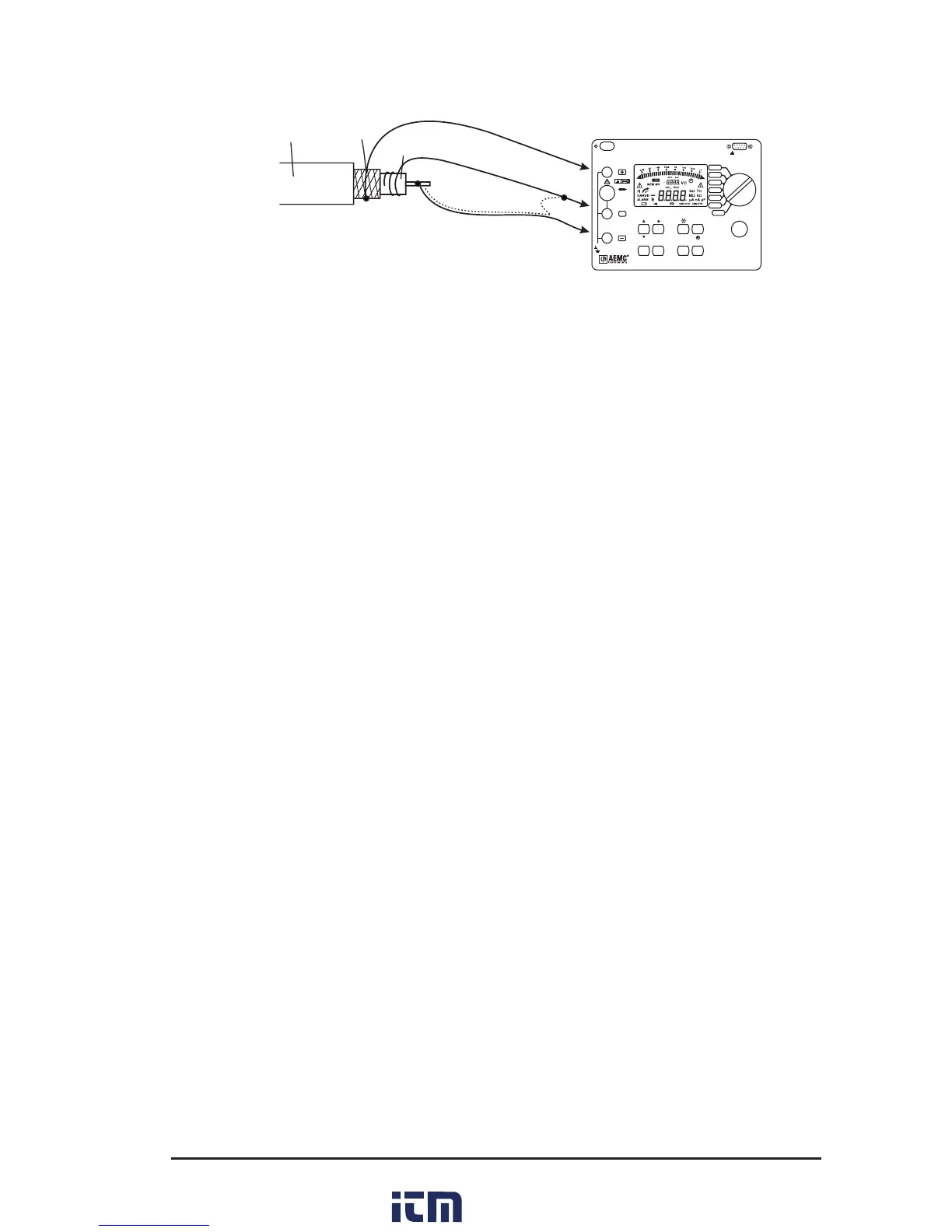

b) Exampleofacable(reductionofsupercialleake󰀨ects)
G
-
+
( )
FF 0.1A
380V - 10kA
5x20mm
110 - 230V
50/60 Hz
20 VA max
RS-232
2
nd
SMOOTH ALARM
R(t)PRINT MEMMR
MEGOHMMETER
MODEL 5060
R-DAR-PI-DDPRINTMEM
V/TIME
START/STOP
1000V CAT III
2500V
G
OFF
MΩ -1000V
MΩ -2500V
MΩ -5000V
MΩ 50-5000V
SET
-
UP
MΩ -500V
External
insulator
Braid
Cable
Guard
Insulator
5.4 Capacitance Measurement
Capacitance measurement is automatically carried out during insulation mea-
surement.Itisdisplayedafterthemeasurementisstoppedandthecircuitisdis-
charged,usingtheR-DAR-PI-DD button.
5.5 Residual and Leakage Current Measurement
Themeasurementofresidualcurrentcirculatingintheinstallationisautomatically
madeduringaninsulationmeasurement.Itisdisplayedattheendofthemeasure-
mentwiththeR-DAR-PI-DDbutton.
