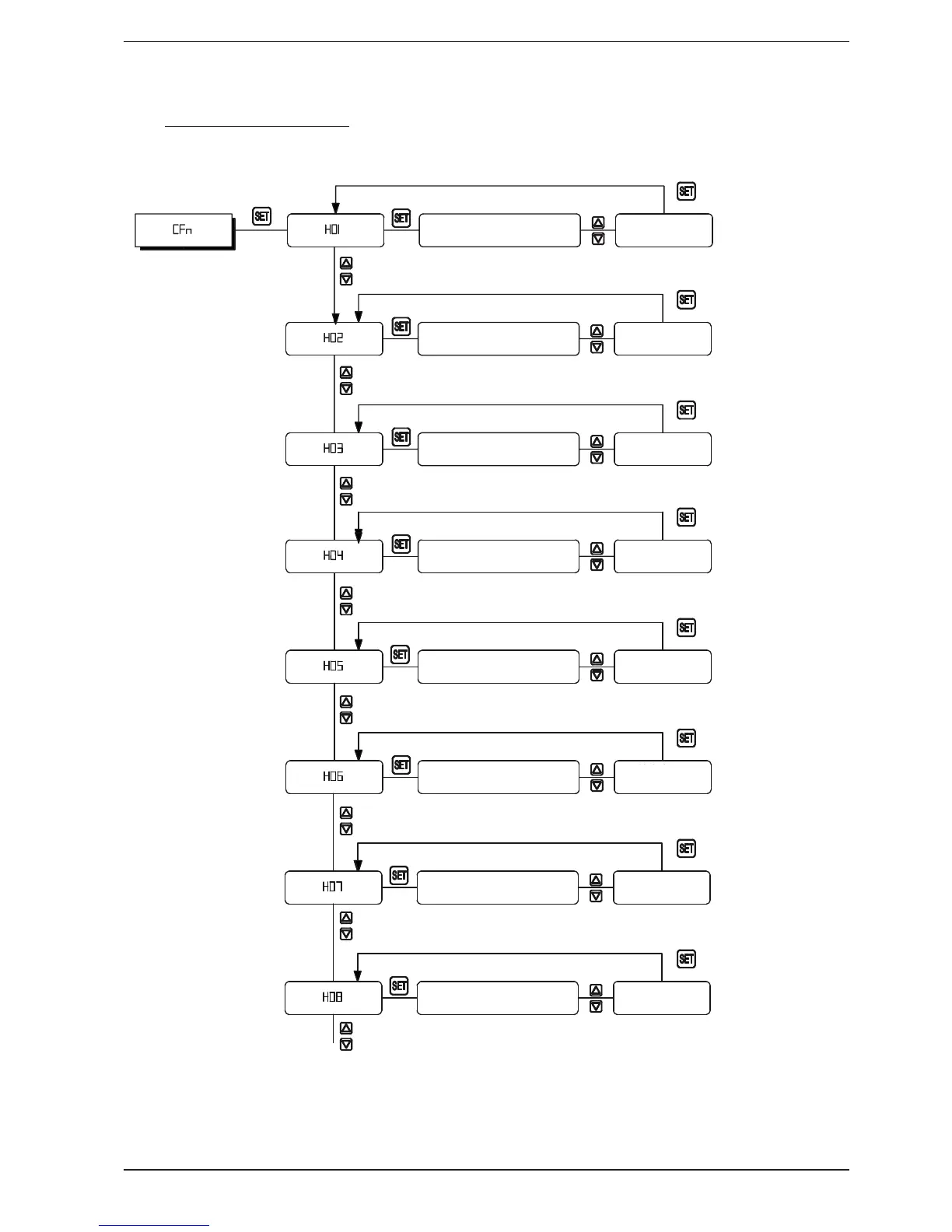

12.5. MANUFACTURER (COS) /
CONFIGURATION (CFN)
BRANCH DIAGRAM
Max. boiler water set point
value
H01 value
variation
H02 value
variation
H03 value
variation
H04 value
variation
H05 value
variation
H06 value
variation
H07 value
variation
H08 value
variation
cont...
Min. boiler water set point
value
Max. outside air set value
Min. outside air set value
Outside air set point for heat-
ing element activation
Heating element activation
differential
Thermal shock set point
Anti-bacterial treatment
cycle frequency
