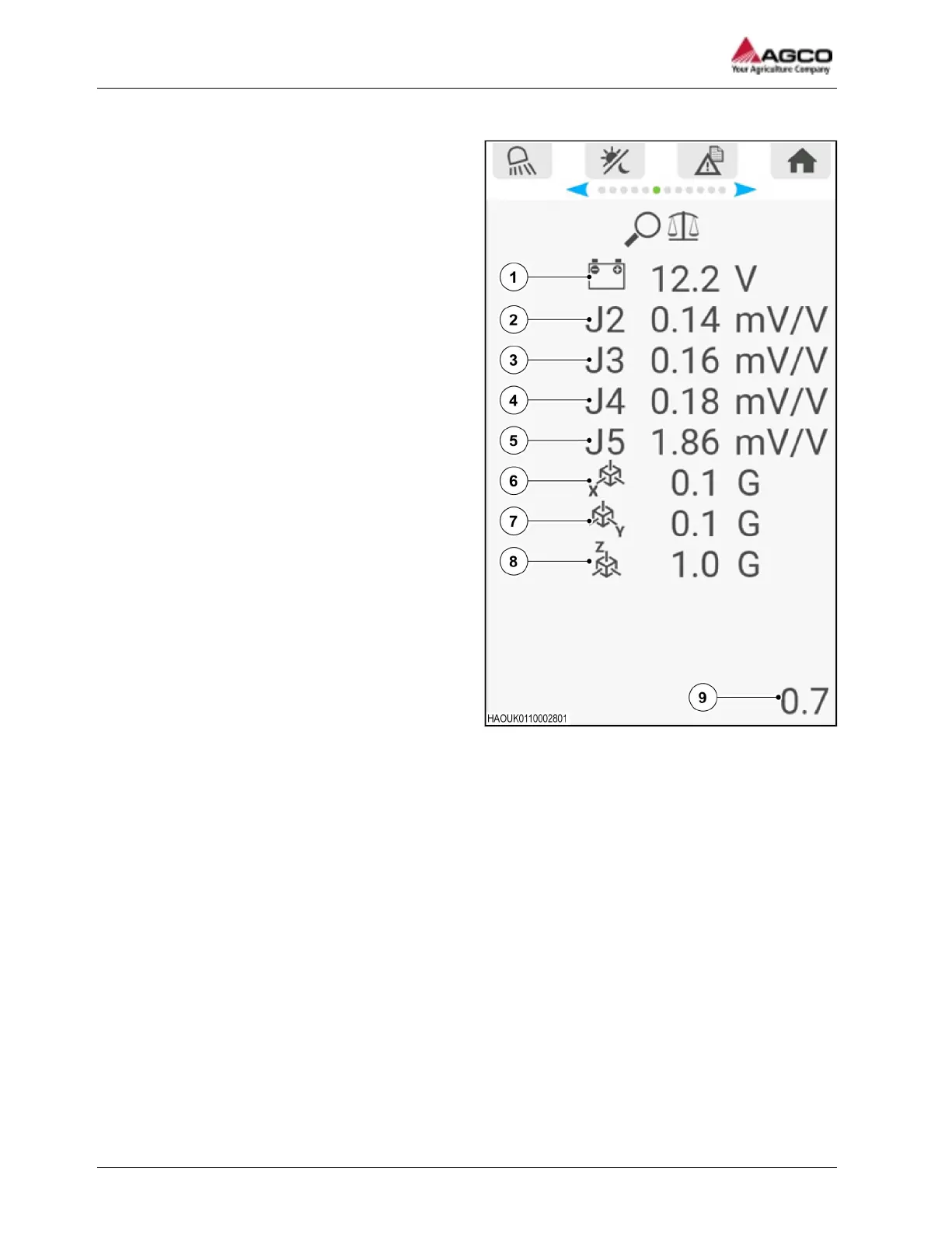

5.2 Scale diagnostics page
Fig. 2
(1) Load sensor module voltage
(2) Load sensor data
(3) Load sensor data
(4) Load sensor data
(5) Load sensor data
(6) Tilt sensor data for X axis
(7) Tilt sensor data for Y axis
(8) Tilt sensor data for Z axis
(9) Load sensor module software version
5 Troubleshooting
