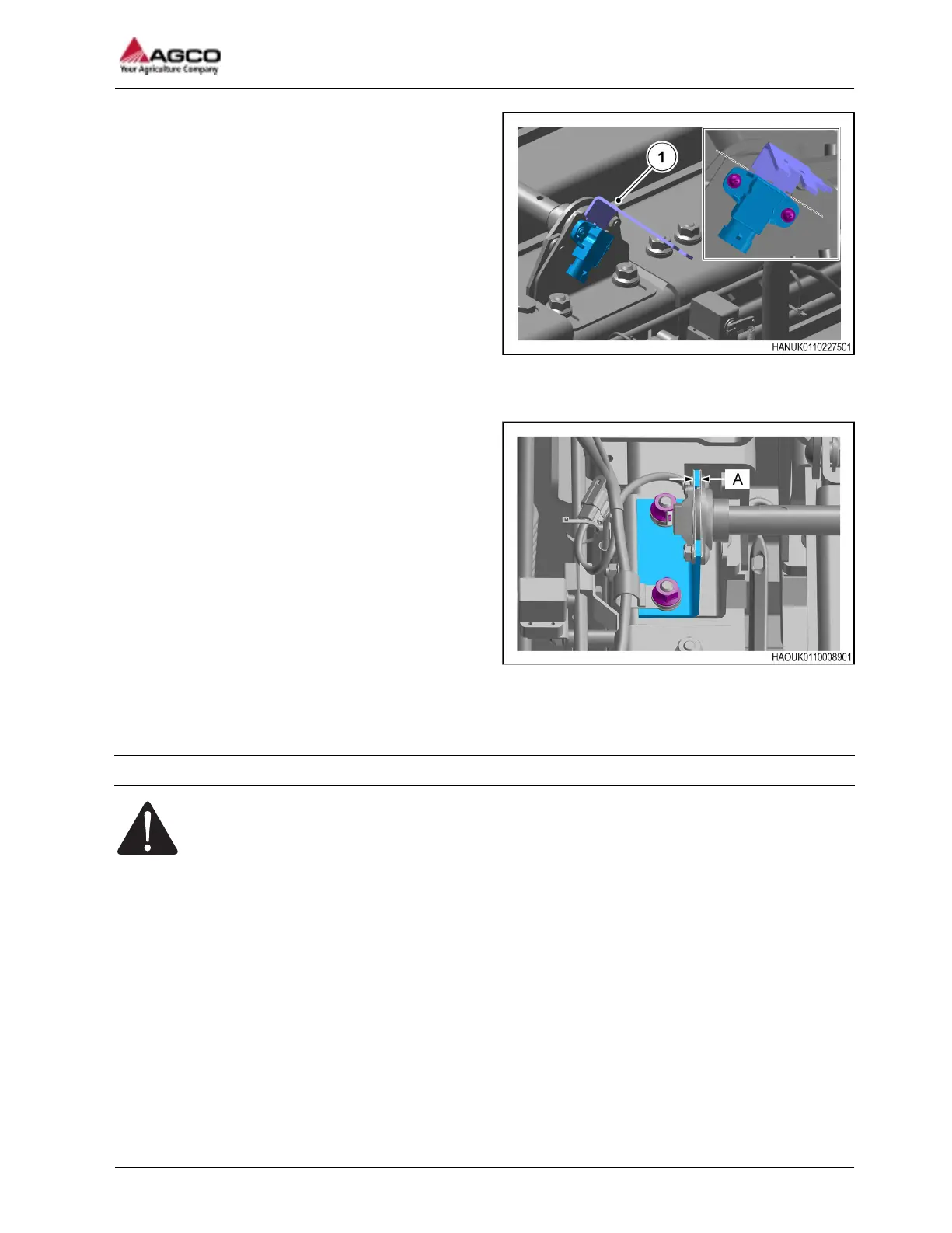

Fig. 3
2. Use the guide tool ACX4656760 (1) to examine
the alignment of the star wheel sensor.
Result
The top of the star wheel sensor must align with
the holes in the guide tool ACX465670 (1).
3. Adjust the position of the star wheel sensor if it
is necessary.
4. Loosen, but do not fully remove the 2 fasteners.
5. Move the star wheel sensor to the correct
position and then tighten the 2 fasteners to the
approved torque.
6. Remove the guide tool ACX465670 (1).
Fig. 4
7. Measure the distance (A) between the star
wheel sensor and the magnet on the end of the
shaft.
Result
The distance (A) must be 1 mm (0 in) to 3 mm
(0.1 in).
8. Adjust the star wheel sensor assembly if it is
necessary.
9. Loosen, but do not fully remove the 2 fasteners.
10. Move the star wheel sensor assembly to the set
distance (A) to 1 mm (0 in) to 3 mm (0.1 in).
11. Tighten the 2 fasteners to the approved torque.
12. Do a check to make sure that the star wheel sensor operates correctly.
IMPORTANT: Make sure that the wiring harness is connected to the star wheel sensor.
4.1.2 Adjust the needle carriage sensor
DANGER: Dangerous area.
Risk of death or injury.
Before you go into the area between the machine and the implement:
Park the machine on a clean, hard and level area.
Put the parking brake to ON.
If an implement is on the machine, lower the implement to the ground.
Set the ignition to OFF.
Install the wheel chocks.
4 Maintenance
SimplEbale
53
