HI ROLLER - BELT CONVEYORS 7. MAINTENANCE
HI ROLLER, MINI ROLLER, LO ROLLER & HI LIFE 7.6. FIXED TRIPPER - ALL MODELS
P115506 R3 109

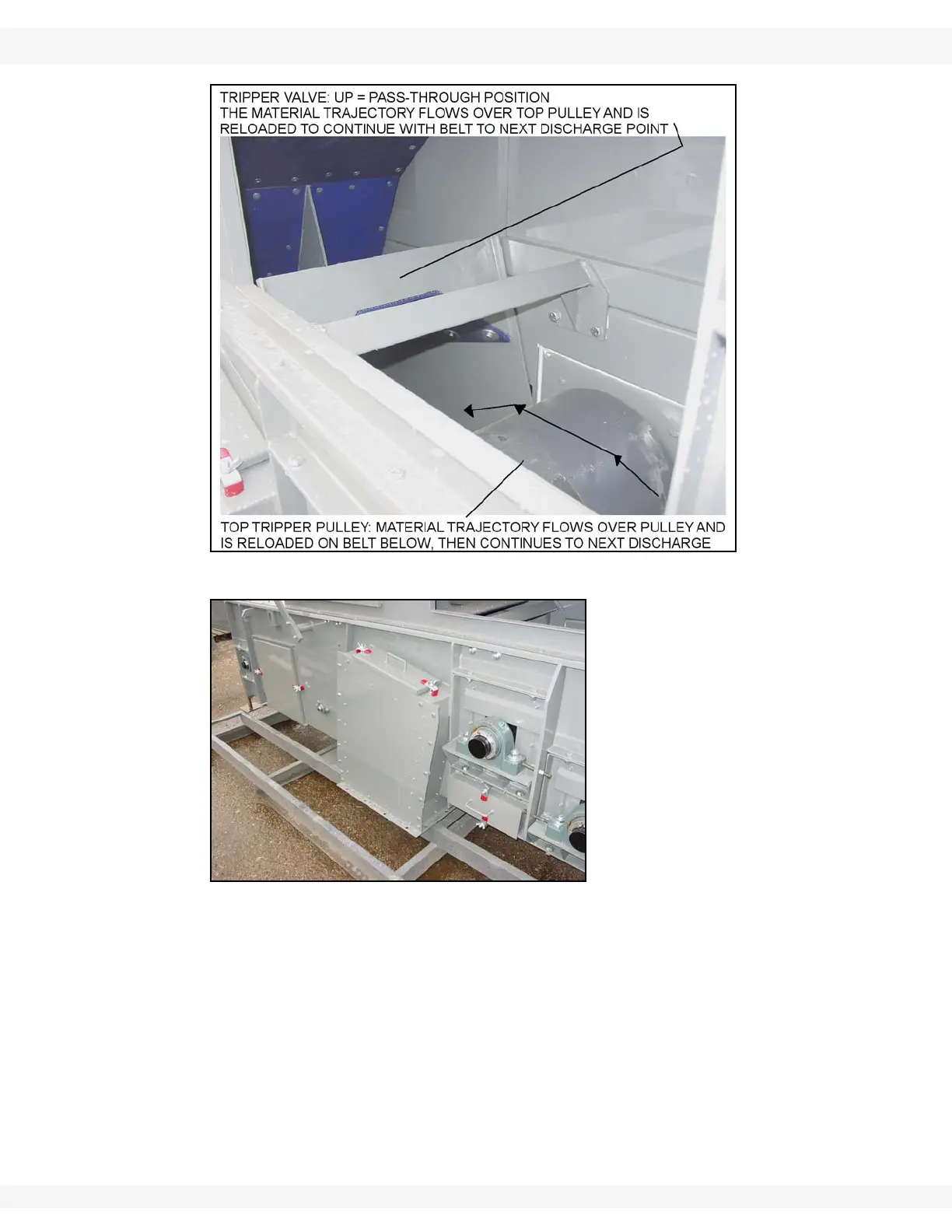

Figure 7.34 Tripper Valve Up
Figure 7.35 Discharge Spout
Note: Discharge spout has removable sides for ease of relining internal wear points
and a top inspection door.
