7. MAINTENANCE HI ROLLER - BELT CONVEYORS
7.6. FIXED TRIPPER - ALL MODELS HI ROLLER, MINI ROLLER, LO ROLLER & HI LIFE
110 P115506 R3

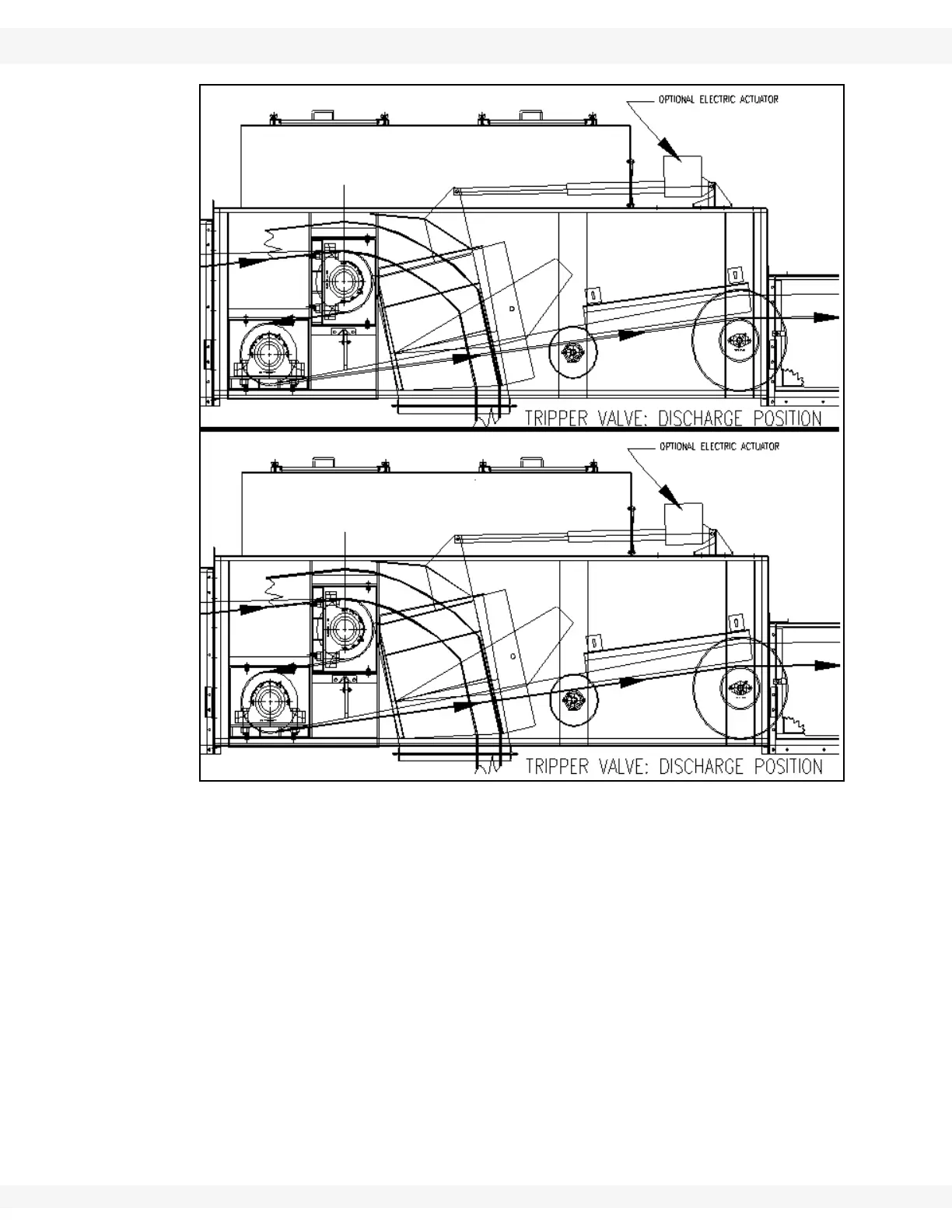

Figure 7.36
4. Electric or manual actuators must be properly adjusted. See Figure 7.37.
