HI ROLLER - BELT CONVEYORS 7. MAINTENANCE
HI ROLLER, MINI ROLLER, LO ROLLER & HI LIFE 7.6. FIXED TRIPPER - ALL MODELS
P115506 R3 111

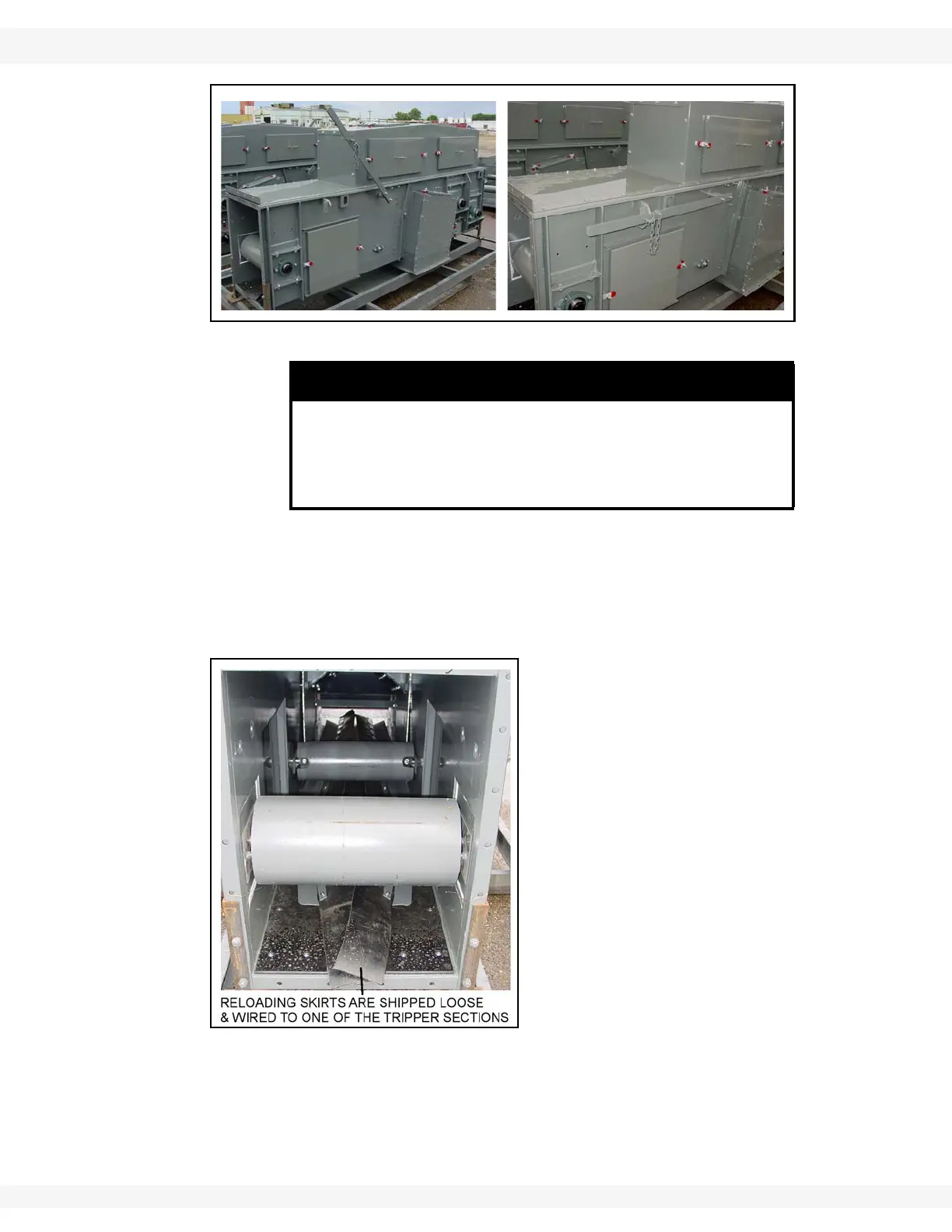

Figure 7.37
5. Electric or manual stops must be properly adjusted.
6. Reloading skirts must be properly installed and adjusted so that the material
is reloaded without spillage when the valve is in the pass-through position.
They are shipped loose and wired to the bottom of the of the tripper section;
see Figure 7.38.
Figure 7.38
7. The back-flow baffle must be properly installed and adjusted to prevent
material from flowing backwards into the bottom pulley during start-up and
shutdown with full loads.
NOTICE
In case of actuator malfunction, use emergency handle:
• Bolt handle to pivot.
• Disconnect actuator.
• Rotate and lock out for pass through.
