7. MAINTENANCE HI ROLLER - BELT CONVEYORS
7.6. FIXED TRIPPER - ALL MODELS HI ROLLER, MINI ROLLER, LO ROLLER & HI LIFE
108 P115506 R3

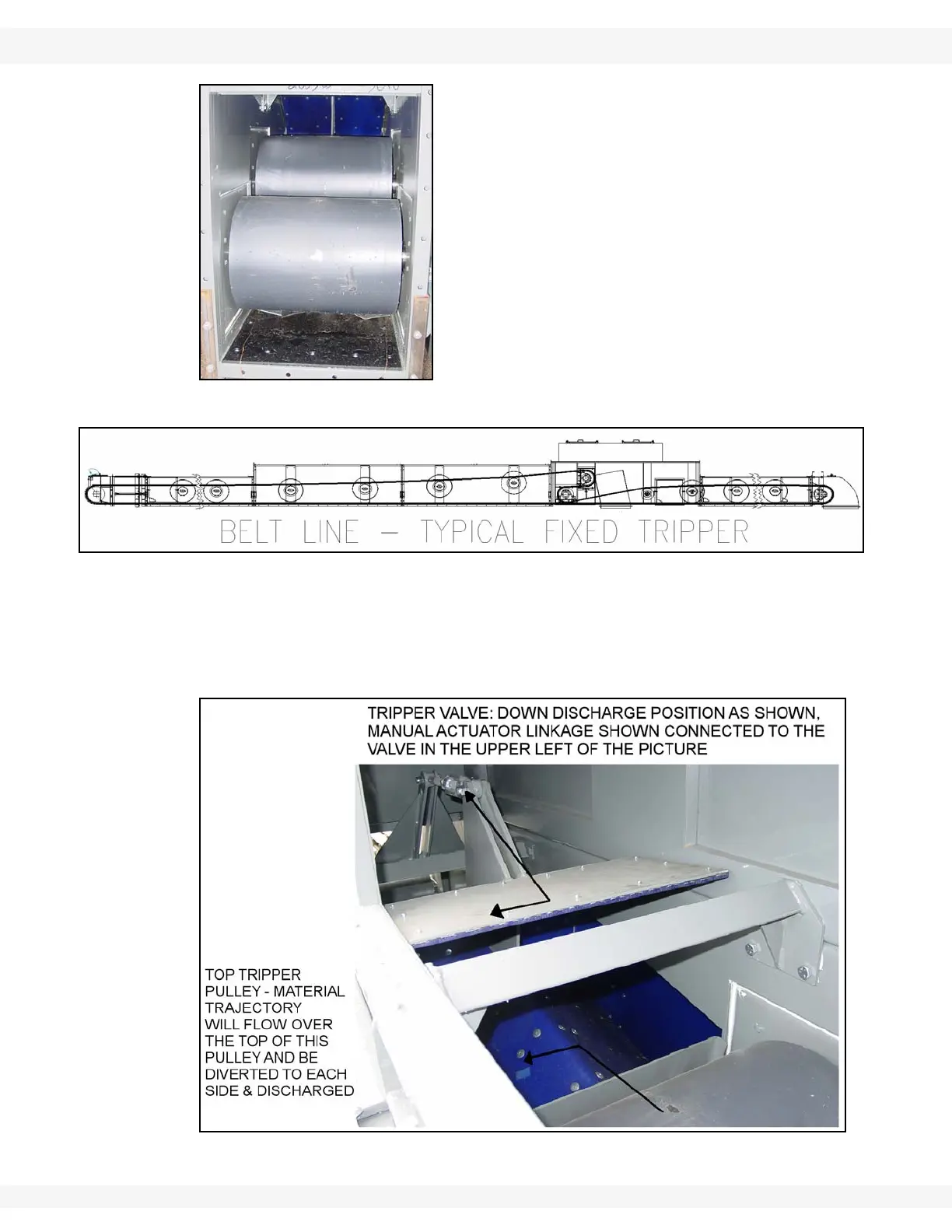

Figure 7.31
Figure 7.32
3. The tripper valve must be adjusted properly for proper operation in the pass-
through and discharge positions. Clearances must be checked and adjusted
to eliminate leakage in each position at the top pulley and side discharge
spouts. See Figure 7.33, 7.34, 7.35, and 7.36.
Figure 7.33 Tripper Valve Down
