5. INSTALLATION HI ROLLER - BELT CONVEYORS
5.9. HAZARD MONITORING DEVICES HI ROLLER, MINI ROLLER, LO ROLLER & HI LIFE
66 P115506 R3
STANDARD TAIL & TAKE-UP SECTION—EXISTING (Figure 5.41)
• The tail pulley alignment can be monitored with one surface mounted sensor
block installed near the top centerline of the tail pulley to detect a tail pulley
misalignment.
• The return belt alignment can be monitored with one rub block installed on
the bottom return belt in the existing trunking section, and will detect a return
belt misalignment.

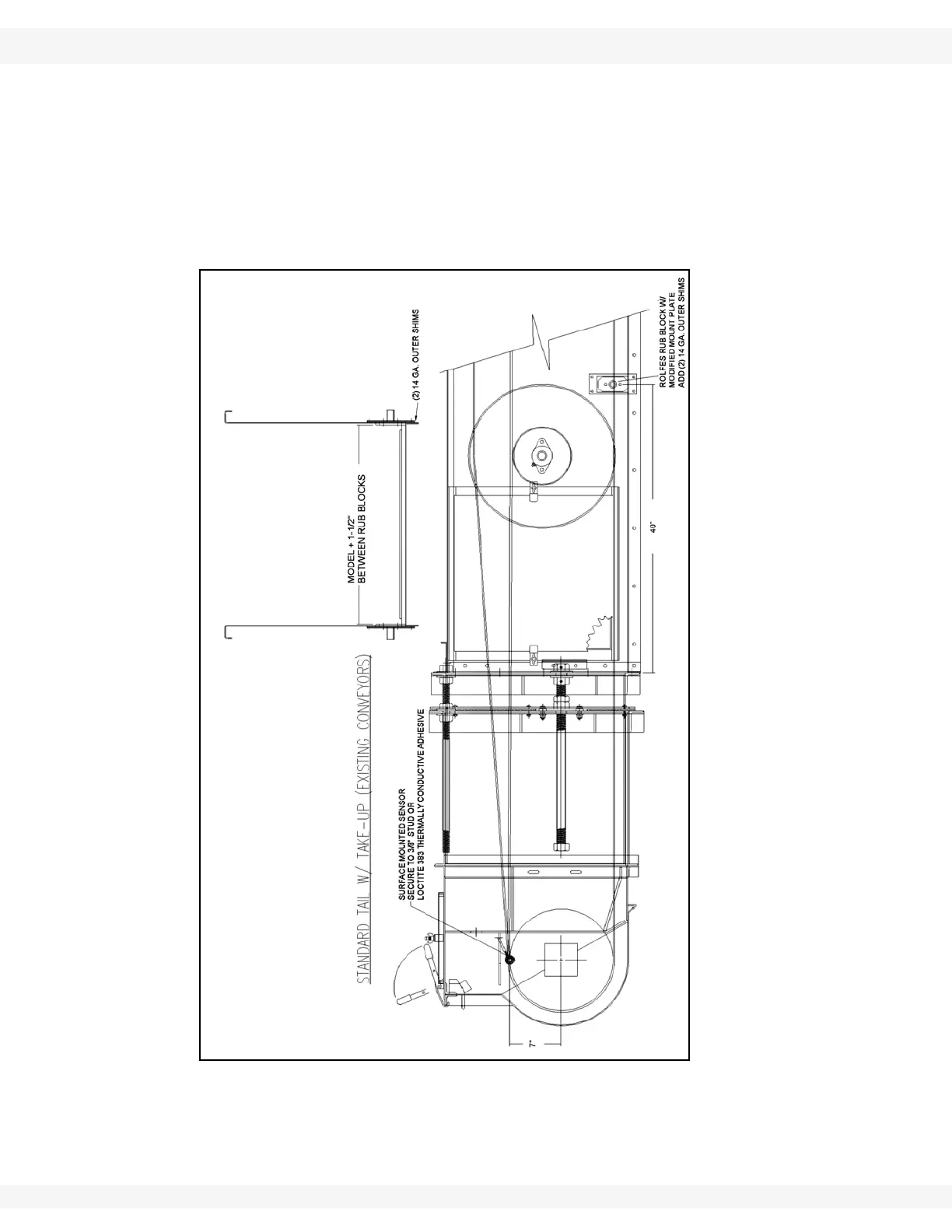

Figure 5.41
